AT450P-BMU

Battery Mount and Canopy Clip for ALIGN T-Rex 450 Pro Electric Series Helicopters

Product has been archived, and is no longer available for purchase. This page is for reference only.


ENGINEERING THE UNSEEN



Overview

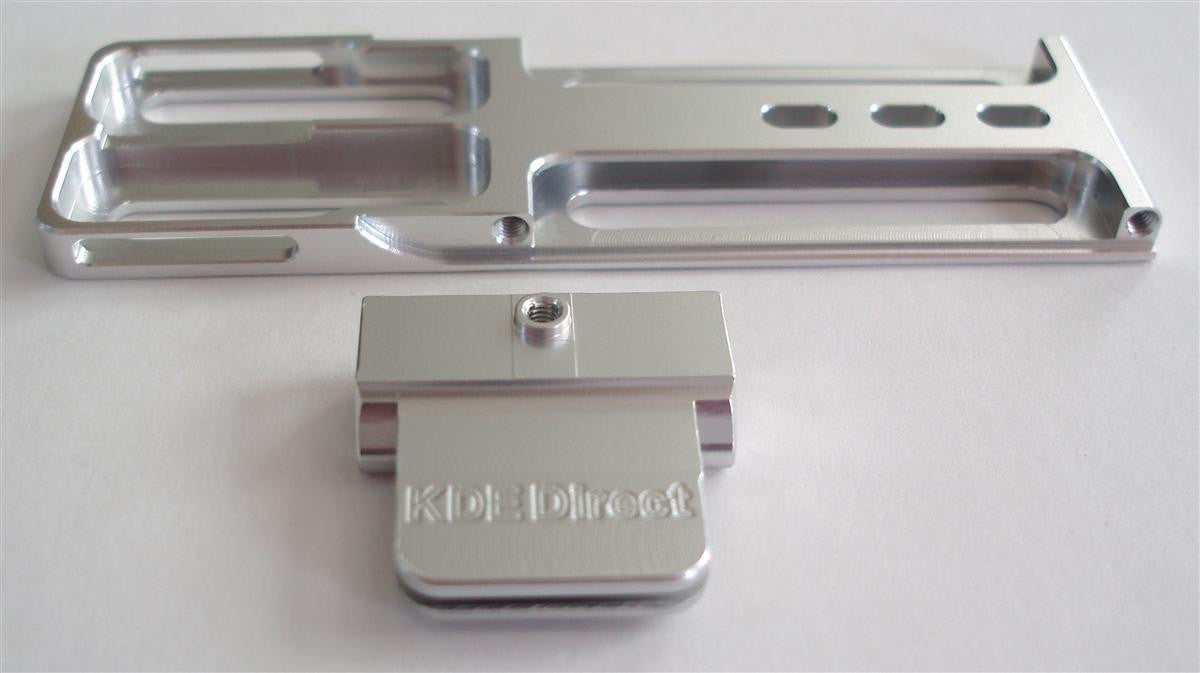

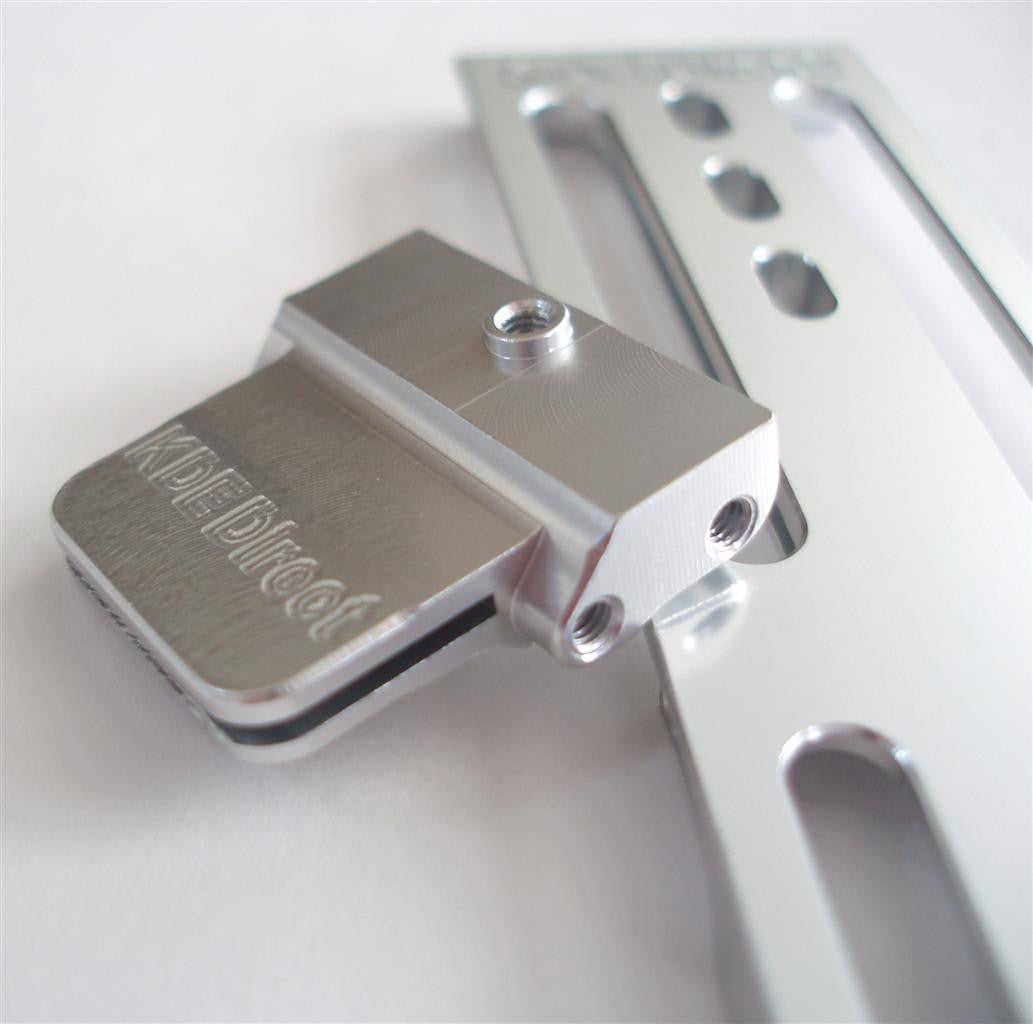

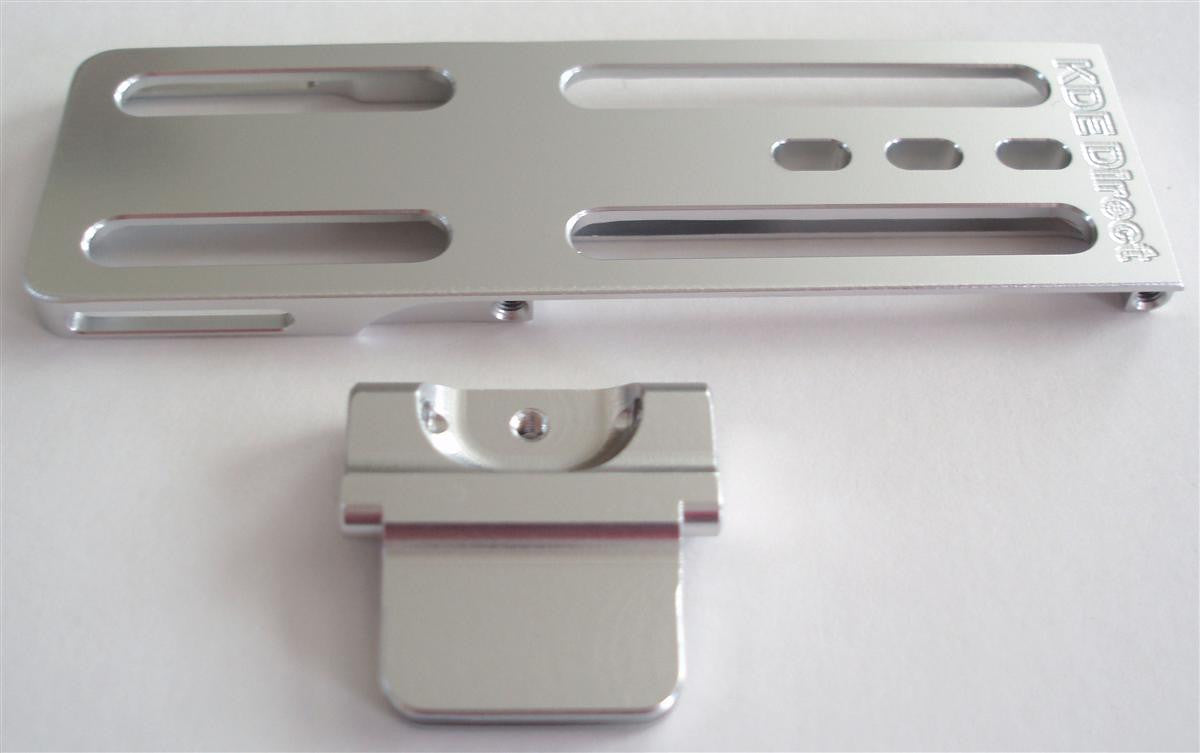

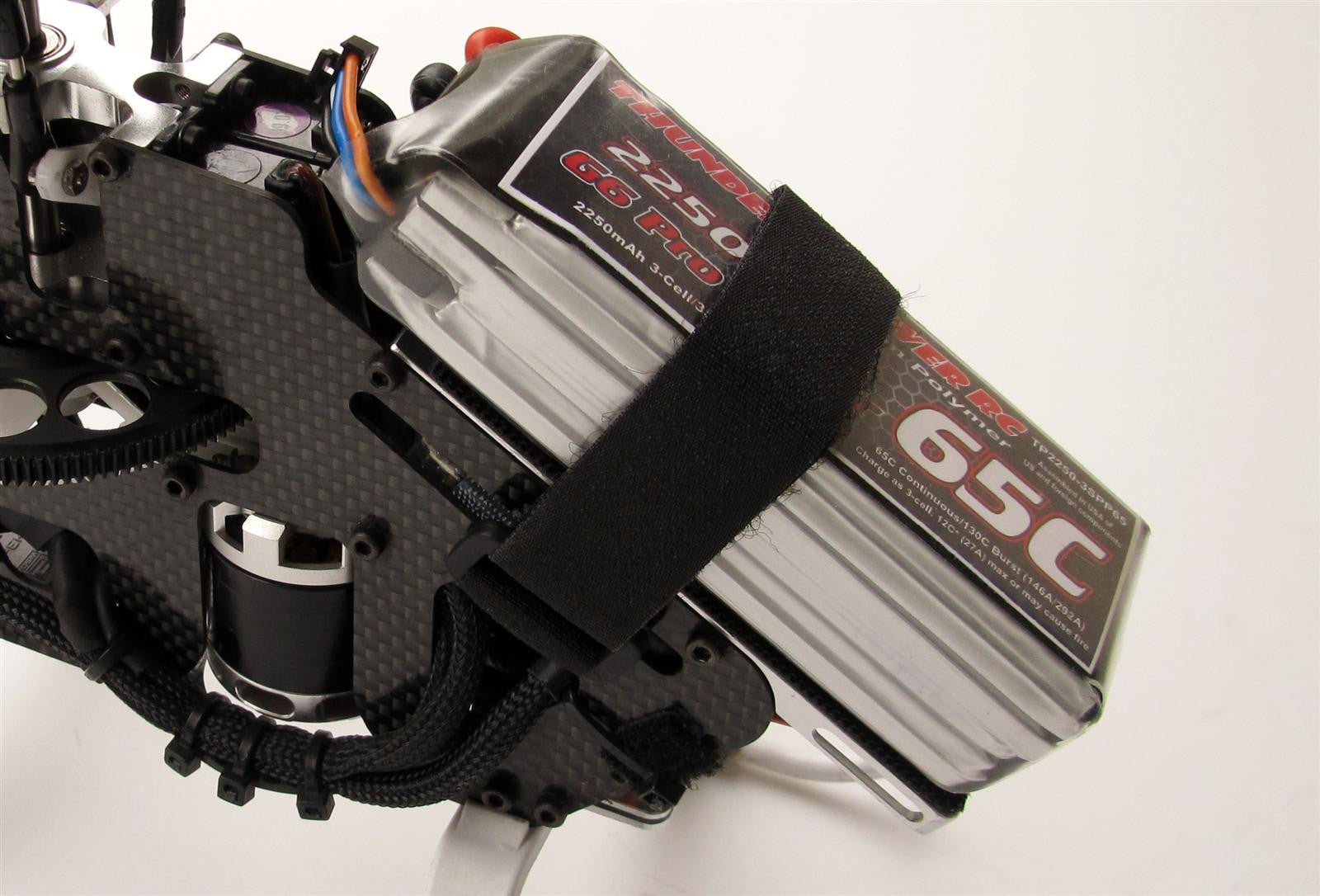

The AT450P-BMU provides superior strength to the front section of the helicopter, providing an Aluminum tray that supports the entire length of the LiPo battery (anti-taco device!) and an Aluminum canopy clip that incorporates the front landing skid mount for strength and critical alignment. With the new open front section design, it is now possible to tuck the ESC and LiPo wiring underneath the tray for easier canopy placement before flight. The under section of the tray contains an open slot for the battery straps, as well as a flat, I-beam design for ESC mounting and perfect CG alignment for 3D flight.

Specifications

Material: Aluminum 6061-T6

Models: All ALIGN T-Rex 450 PRO series (replaces stock ALIGN part #H45051).

Includes:

  • One (1) T-Rex 450 PRO Series Aluminum Battery Mount Upgrade
  • One (1) T-Rex 450 PRO Series Aluminum Canopy Clip Upgrade
  • Six (6) M2.5 x 0.45 x 6 mm Button Head Socket Head Cap Screws (Class 12.9)

Finish: Clear anodize, mirror-polish CNC gloss

Weight: 19 g (design is FEA optimized for maximum strength and minimum weight)
