AT550/600-BMU

Battery Mount Upgrade for ALIGN T-Rex 550/600 Electric Series Helicopters

Product has been archived, and is no longer available for purchase. This page is for reference only.


ENGINEERING THE UNSEEN



Overview

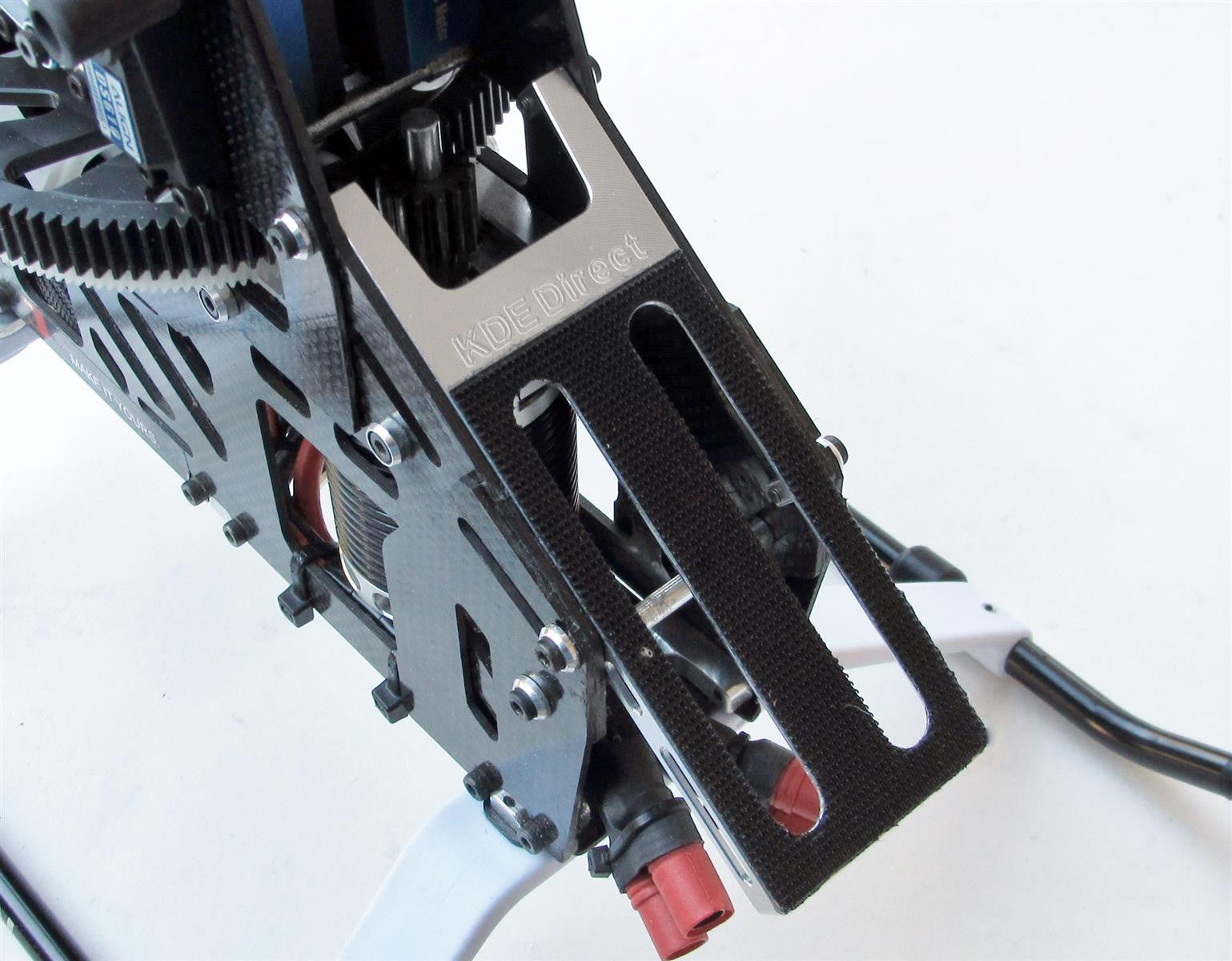

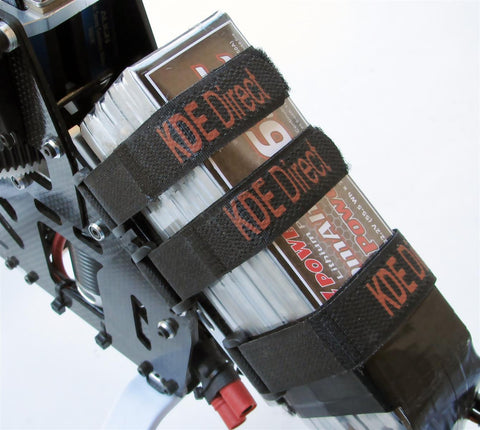

The Battery Mount Upgrade provides excellent support and protection for the front-mounted LiPo design of the T-Rex 550 and 600 Electric series helicopters. In addition, slots have been provided for additional straps (each captured in the slot) for easy LiPo mounting/removal and holding strength of the power system during hard 3D flight.

Specifications

Material: Aluminum 6061-T6

Models: All ALIGN T-Rex 550 and 600 (E/CF/GF/ESP) series (replaces stock ALIGN part #H60028).

Includes:

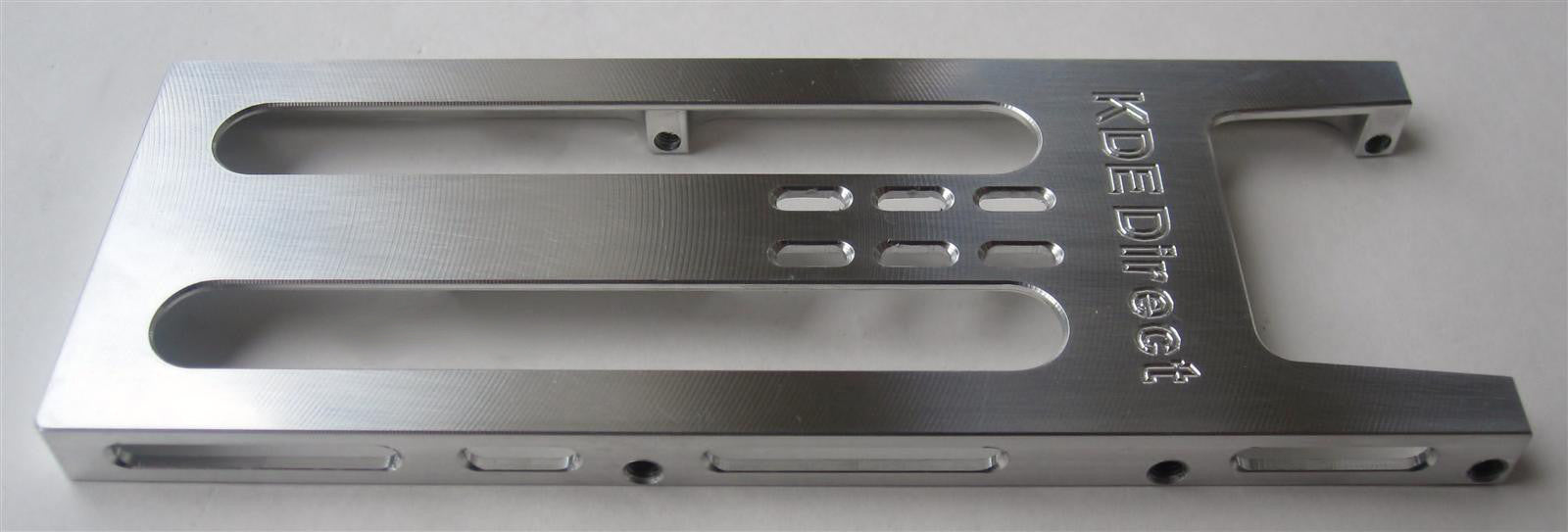

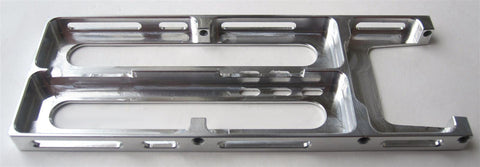

  • One (1) T-Rex 550/600 Series Aluminum Battery Mount Upgrade
  • Four (4) M3 x 0.5 x 8 mm Socket Head Cap Screws (Class 12.9)

Finish: Clear anodize, mirror-polish CNC gloss

Weight: 22 g (design is FEA optimized for maximum strength and minimum weight)
