Elevator Servo Mount V2 for ALIGN T-Rex 700/800 Series Helicopters

Product has been archived, and is no longer available for purchase. This page is for reference only.

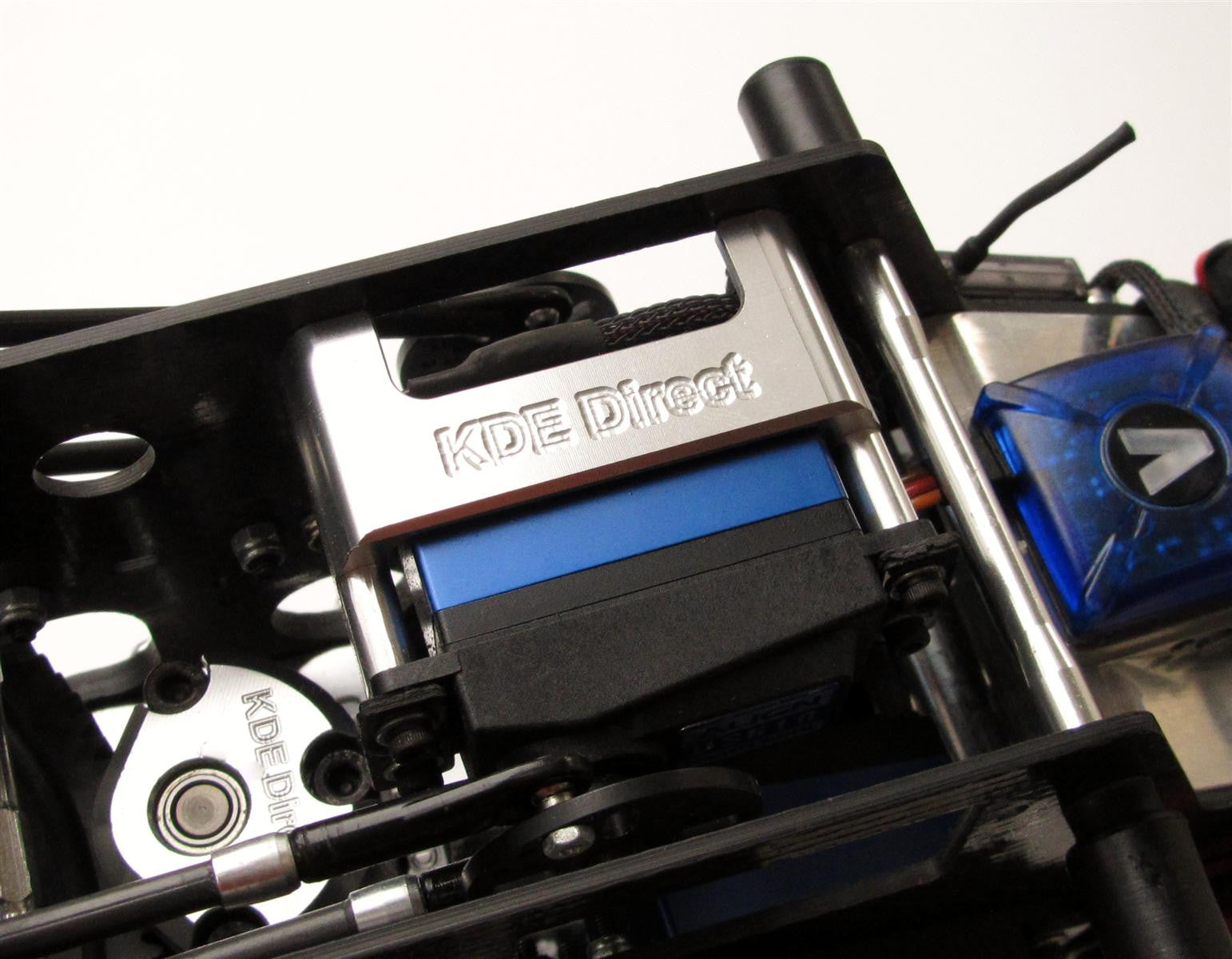

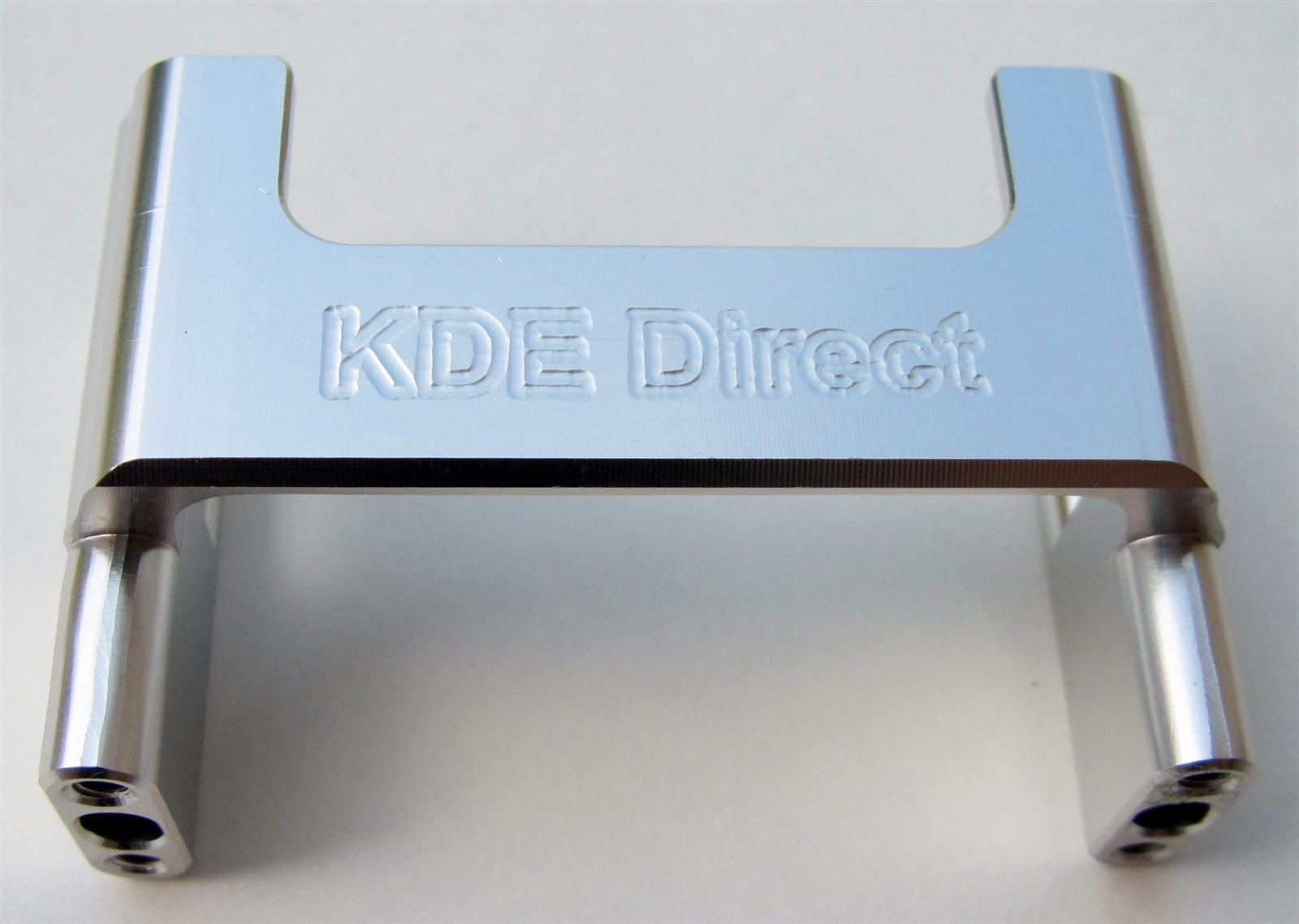

The Elevator Servo Mount V2 design provides superior CCPM elevator control, with an Aluminum 6061-T6 frame that prevents flex during high-torque maneuvers and provides a strong foundation for the elevator servo (no more stripped plastic threads!). Four 8mm screws are provided for frame mounting and four 14mm screws are provided to install the elevator servo for rock-solid control. The Elevator Servo Mount is the perfect fit for the T-Rex 700/800 series, proving the same additional strength characteristics of the AL6061-T6 frame with the added benefit of excellent heat dissipation between the brushless motor and elevator servo.

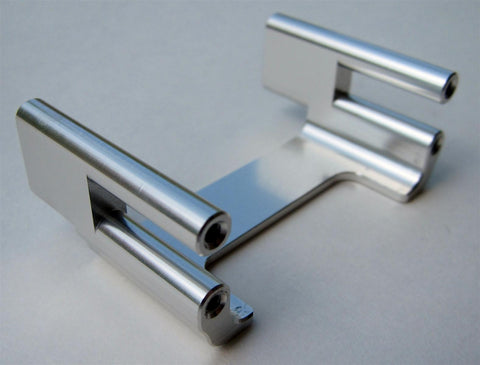

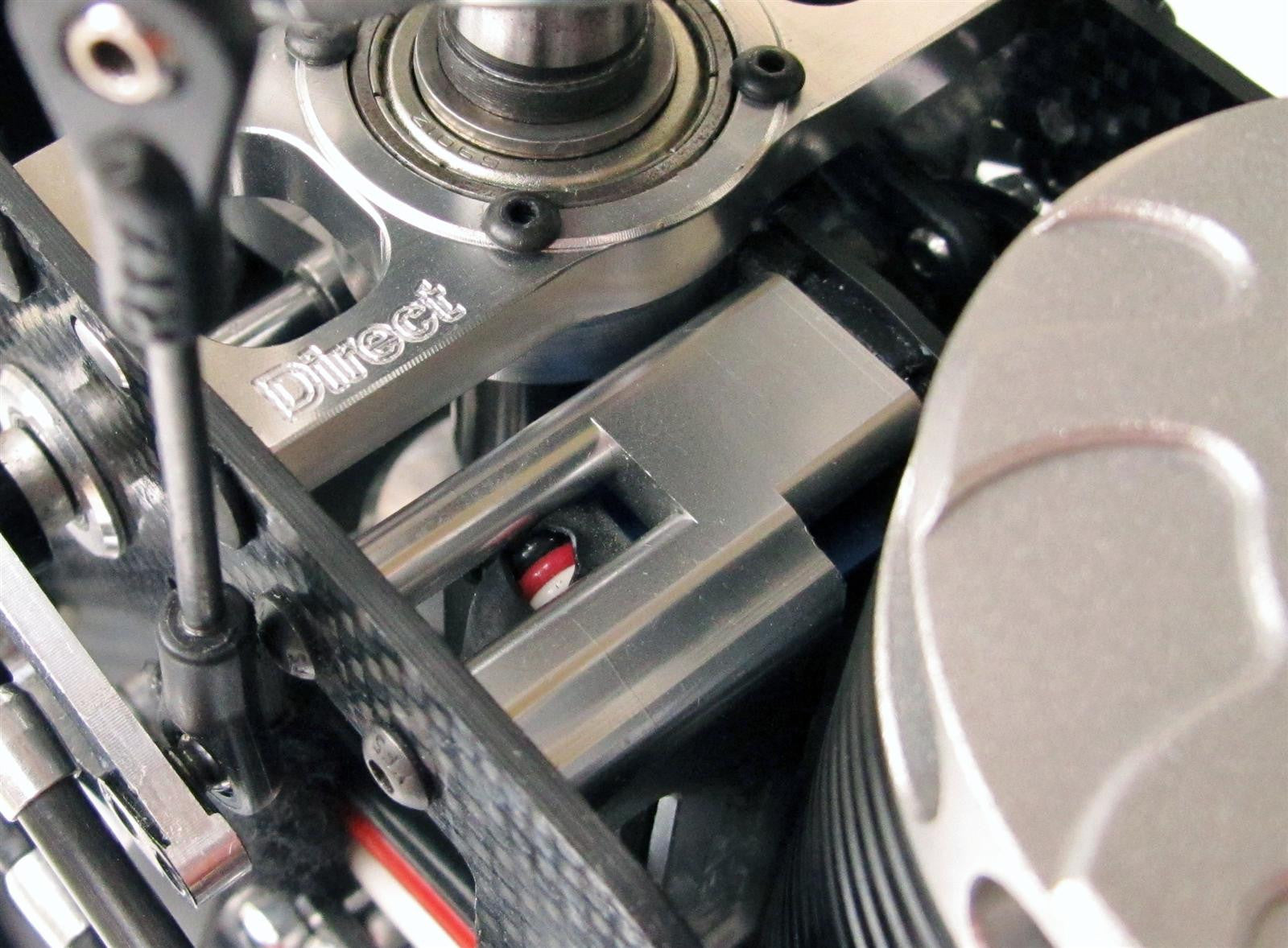

Update: The new V2 design has a lightweight, open-frame geometry to allow clearance for the newer 55mm diameter outrunner motors coming to the market. In this regard, no modifications are required to fit the latest generation motors and the same strength characteristics of the original design are carried through for optimal flight control.


Material: Aluminum 6061-T6

Models: All ALIGN T-Rex 700E (V1/V2/V3/3GX/F3C), 700N (V1/V2/3GX), and 800 (DFC/Conversion) series (replaces stock ALIGN part #HN7074/HN7074M).


  • One (1) T-Rex 700/800 Series Aluminum Elevator Servo Mount V2
  • Four (4) M2.5 x 0.45 x 8 mm Button Head Socket Head Cap Screws (Class 12.9)
  • Four (4) M2.5 x 0.45 x 14 mm Button Head Socket Head Cap Screws (Class 12.9)

Finish: Clear anodize, mirror-polish CNC gloss

Weight: 15 g (design is FEA optimized for maximum strength and minimum weight)
