KDE-TWWI-HL
ENGINEERING THE UNSEEN
Overview

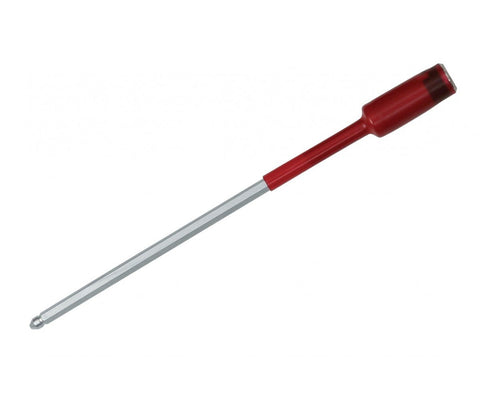

Recommended Hex Blade: KDE-TWHB30 Hex 3.0mm Blade
The Wiha TorqueVario Handle torque-wrench provides a factory-calibrated, handheld torque-wrench for simple installation and periodic maintenance of the KDE Direct UAS Multi-Rotor Propeller Blade Adapter Series propeller mounting screws (C12.9 socket head shoulder cap screws).
Multiple torque and hex-key sized wrenches are available for direct compatibility with the KDE Direct UAS Carbon-Fiber Propeller Blade Series (see Specifications and Technical Media tabs above for more details).
Specifications
Compatible Propeller Blade Series (Required KDE-TWHB30 Hex 3.0mm Blade):
Compatible Propeller Blade Adapters (Required KDE-TWHB30 Hex 3.0mm Blade):
Includes:

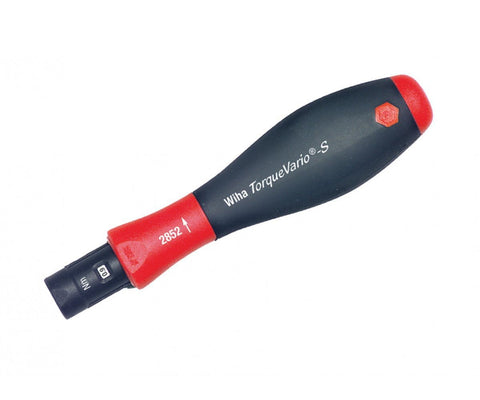

- One (1) Wiha TorqueVario Adjustable Handle 5 - 10 ln. Lbs

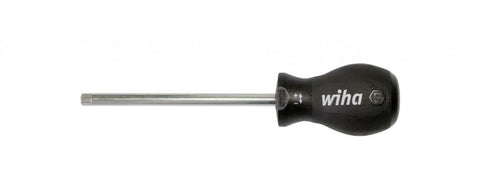

- One (1) Torque Setting Adjustment Tool
- One (1) Torque Manual
Full Specifications:
| Torque Range | 5.0 - 10.0 in-lb |
| Torque Range | 80.0 - 160.0 oz-in |
| Torque Range | 0.87 - 1.75 N-m |
Propeller Blade Compatibility Chart
| KDE-CF125 (12.5" x 4.3) Propeller Blades | Wrench: KDE-TWWI Hex Blade: KDE-TWHB25 |
| KDE-CF155 (15.5" x 5.3) Propeller Blades | Wrench: KDE-TWWI Hex Blade: KDE-TWHB25 |
| KDE-CF185 (18.5" x 6.3) Propeller Blades | Wrench: KDE-TWWI Hex Blade: KDE-TWHB25 |
| KDE-CF215 (21.5" x 7.3) Propeller Blades | Wrench: KDE-TWWI Hex Blade: KDE-TWHB25 |
| KDE-CF245 (24.5" x 8.1) Propeller Blades | Wrench: KDE-TWWI or KDE-TWWI-HL Hex Blade: KDE-TWHB30 |
| KDE-CF275 (27.5" x 8.9) Propeller Blades | Wrench: KDE-TWWI-HL Hex Blade: KDE-TWHB30 |
| KDE-CF305 (30.5" x 9.7) Propeller Blades | Wrench: KDE-TWWI-HL Hex Blade: KDE-TWHB30 |
