AT450P/450-PTU-V3
Performance Tail Upgrade V3 for ALIGN T-Rex 450 Electric Series Helicopters

  • $19.95

Overview

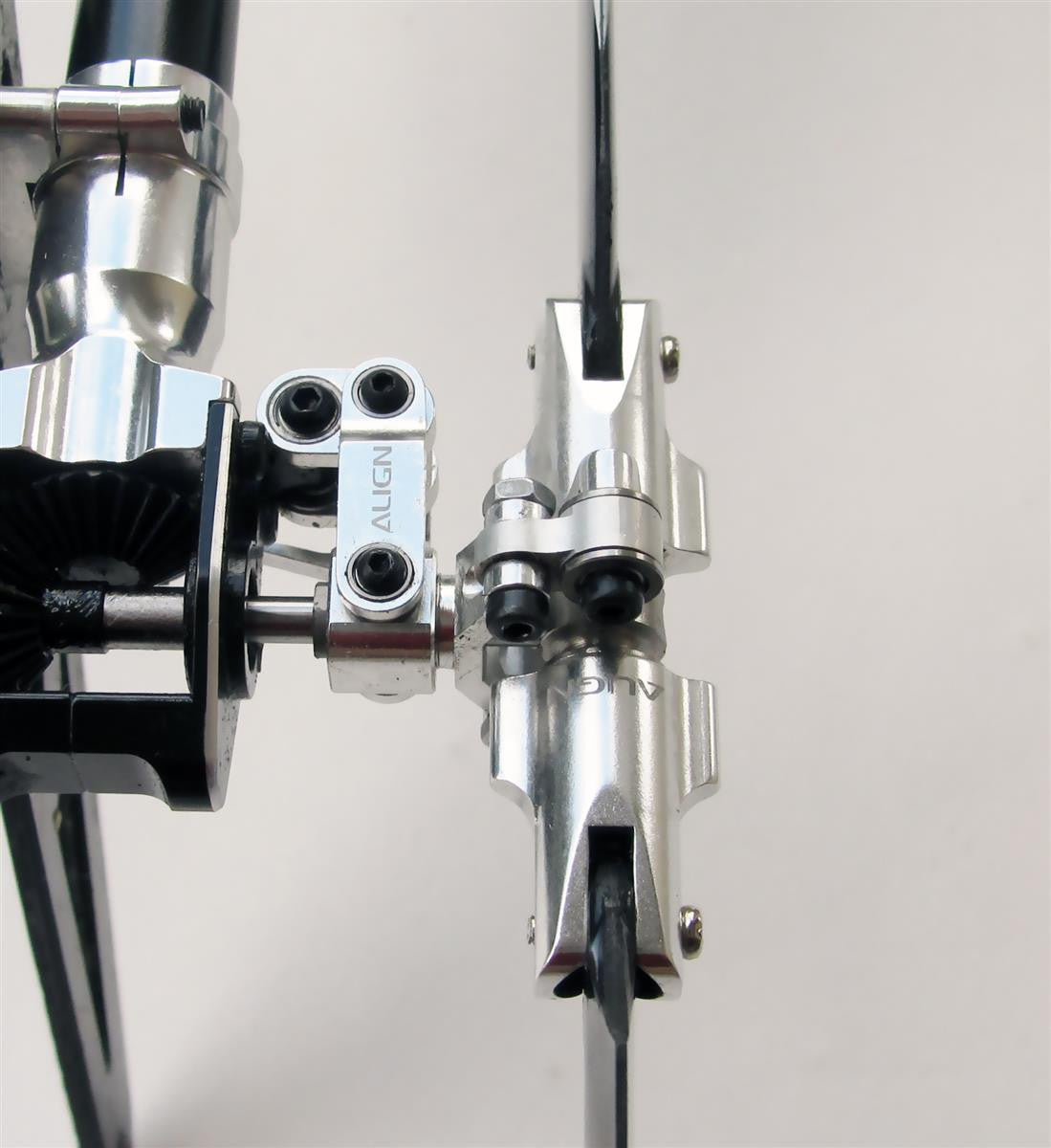

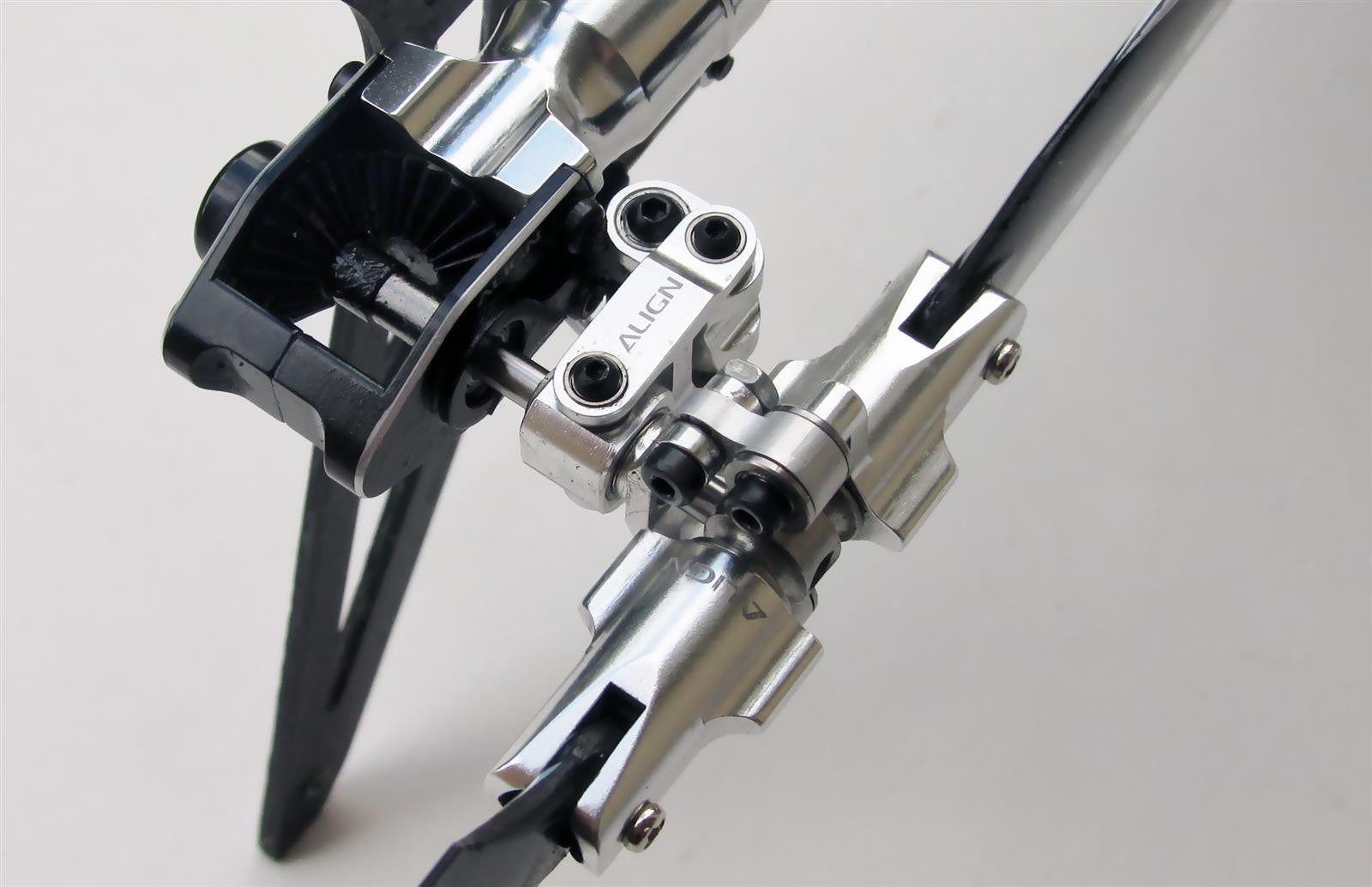

The Performance Tail Upgrade V3 provides superior tail control for sport and hard 3D flying styles. With dual flanged, radial ball bearing supported tail grips and precise machining tolerances for the brass bushing sleeve, the new design provides a truly slop-free, high-performance tail that is rock-solid for all maneuvers. The design is a simple retrofit for the common ALIGN parts on the helicopter (replaces the stock plastic tail control links), with the ability to be used on all T-Rex 450 helicopters on the market and installed in a matter of minutes.

The "V3" design is required when using the latest ALIGN Metal Tail Pitch Assembly (H45181/H45179) for proper pitch range and tail authority.

Specifications

Material: Aluminum 6061-T6, Bronze SAE 660

Models: All ALIGN T-Rex 470LM, 450L and 450 series (replaces stock ALIGN part #H45183).

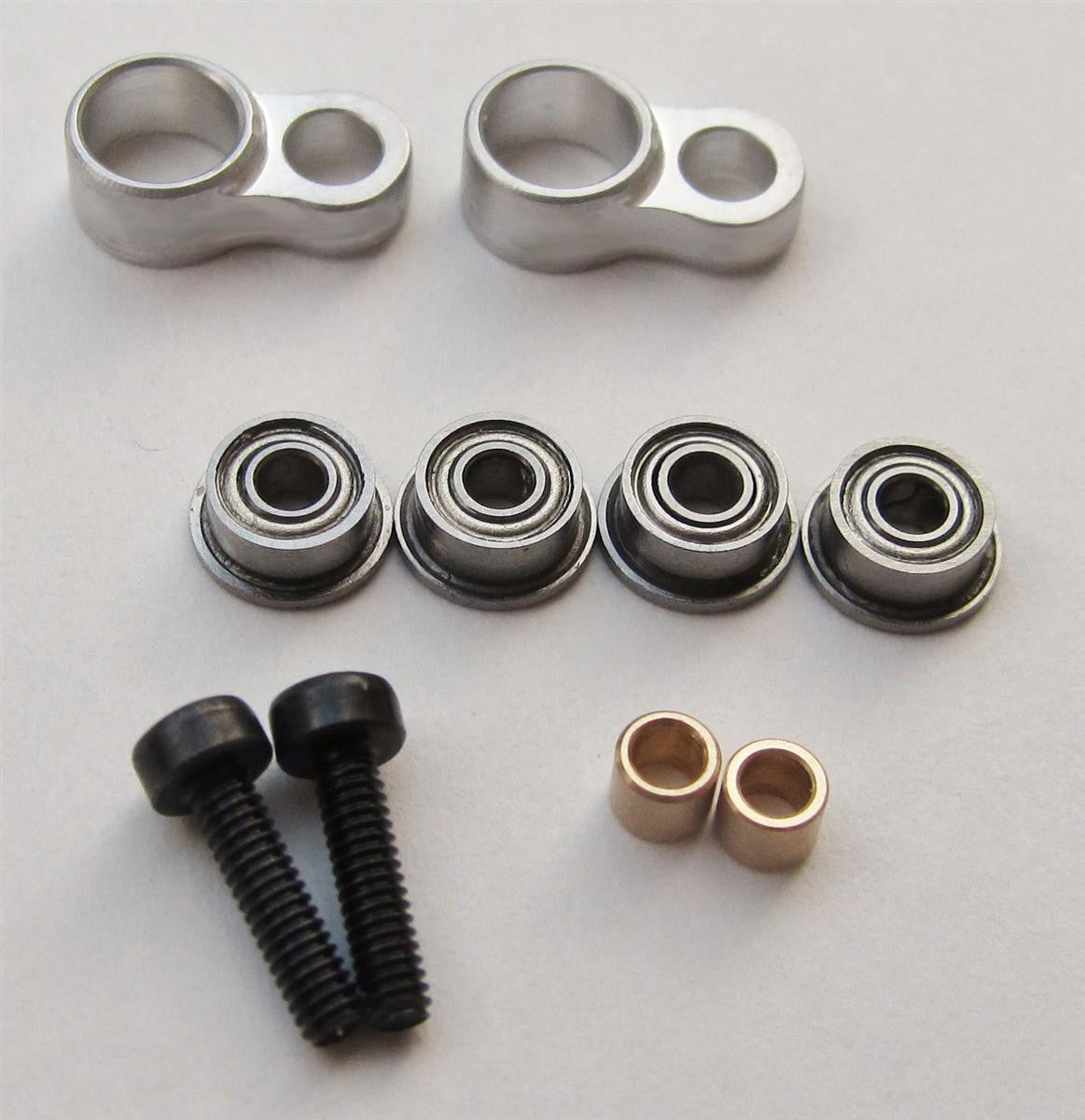

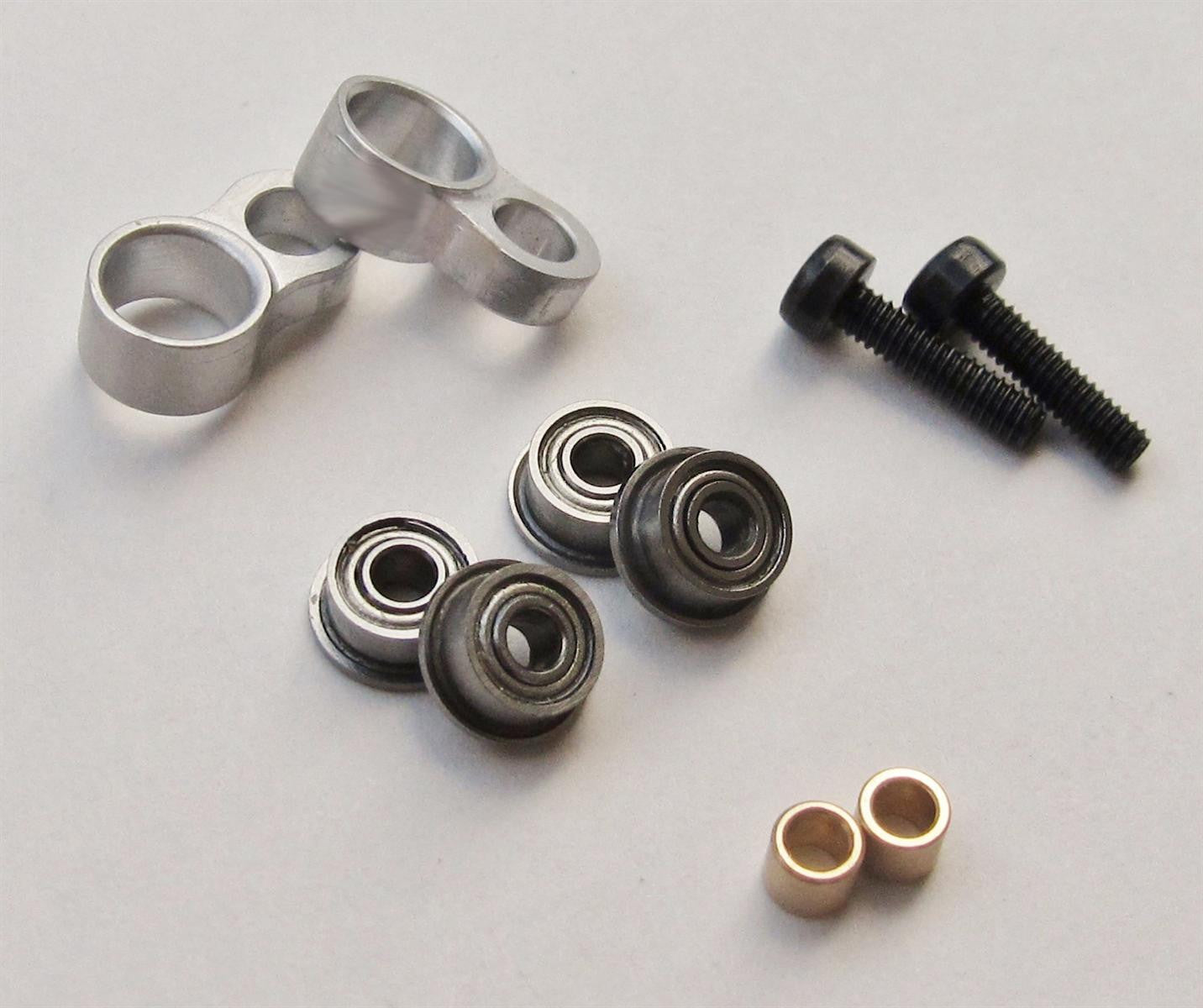

Includes:

  • Two (2) T-Rex 450 Series Aluminum Tail Control Link V3
  • Two (2) SAE 660 Bronze Sleeve Bushings 2 x 3 x 2.5 mm
  • Four (4) Flanged Radial Ball Bearings 2 x 5 x 2.5 mm
  • Two (2) M2 x 0.4 x 8 mm Socket Head Cap Screws (Class 12.9)

Finish: Clear anodize, brushed CNC matte
