AT450S-BPU

Bottom Plate Upgrade for ALIGN T-Rex 450 Sport V2 Electric Series Helicopters

Product has been archived, and is no longer available for purchase. This page is for reference only.


ENGINEERING THE UNSEEN



Overview

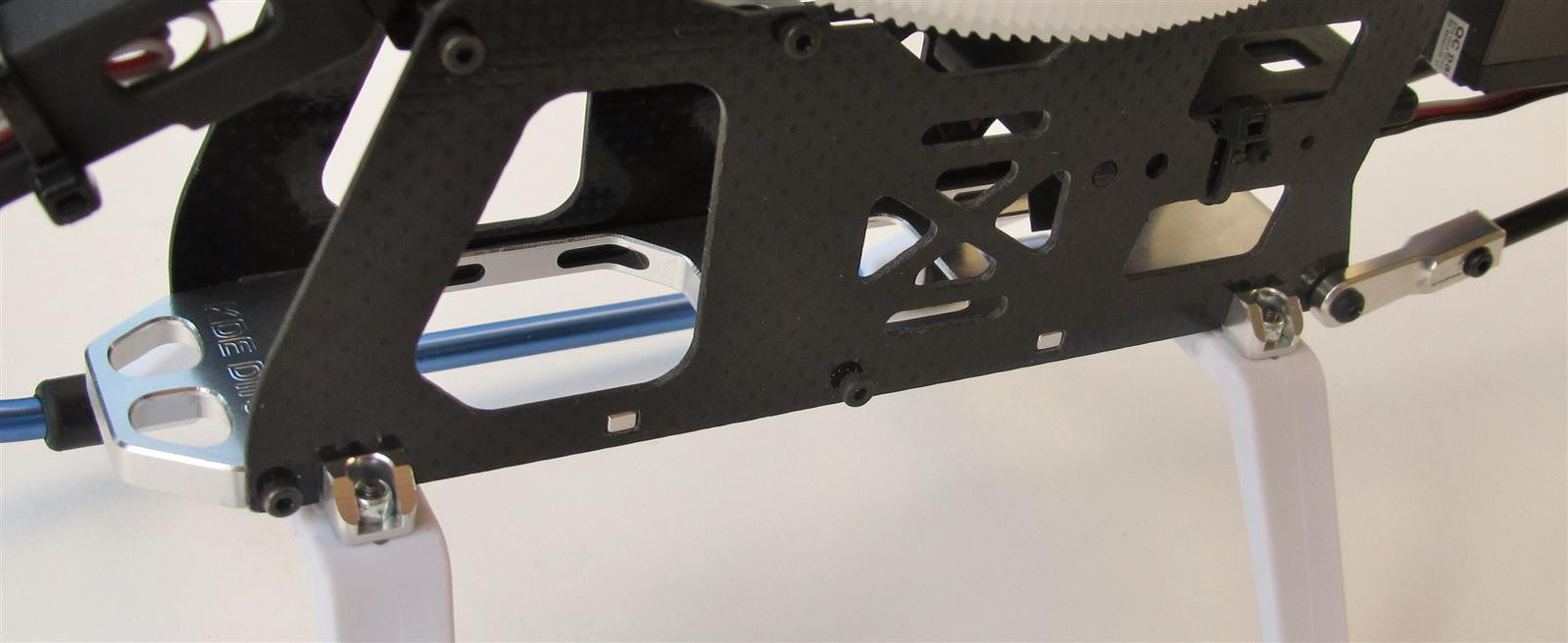

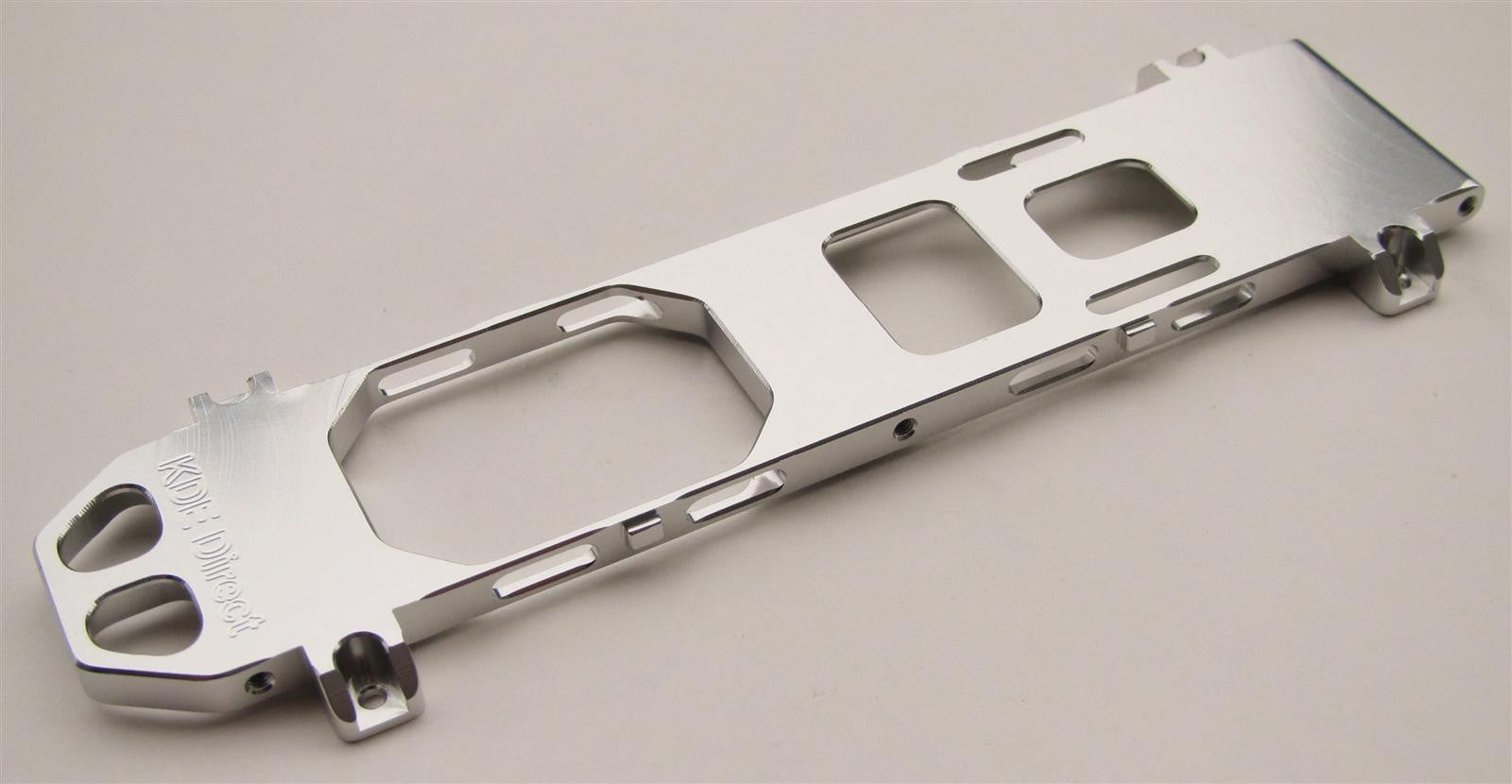

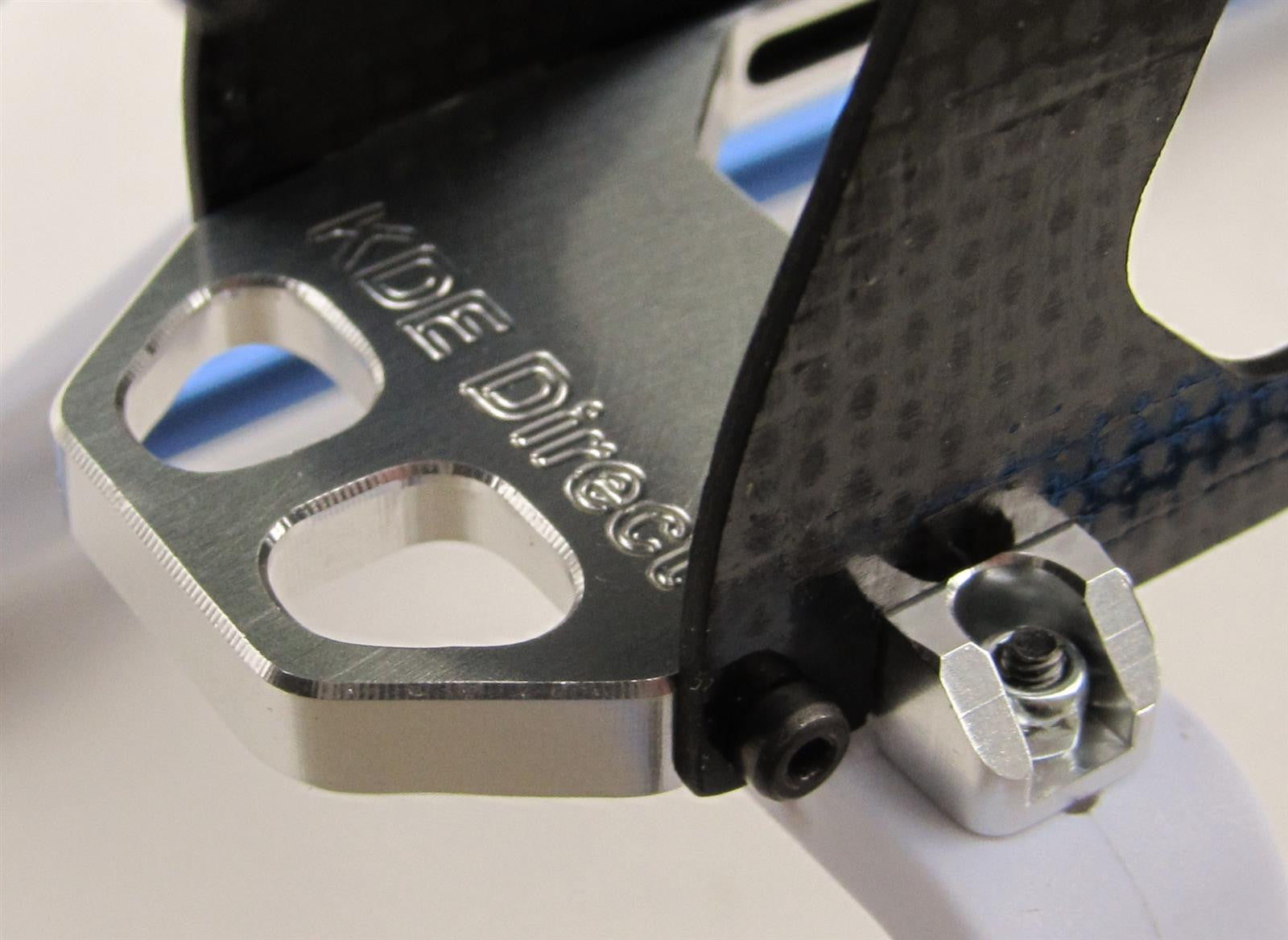

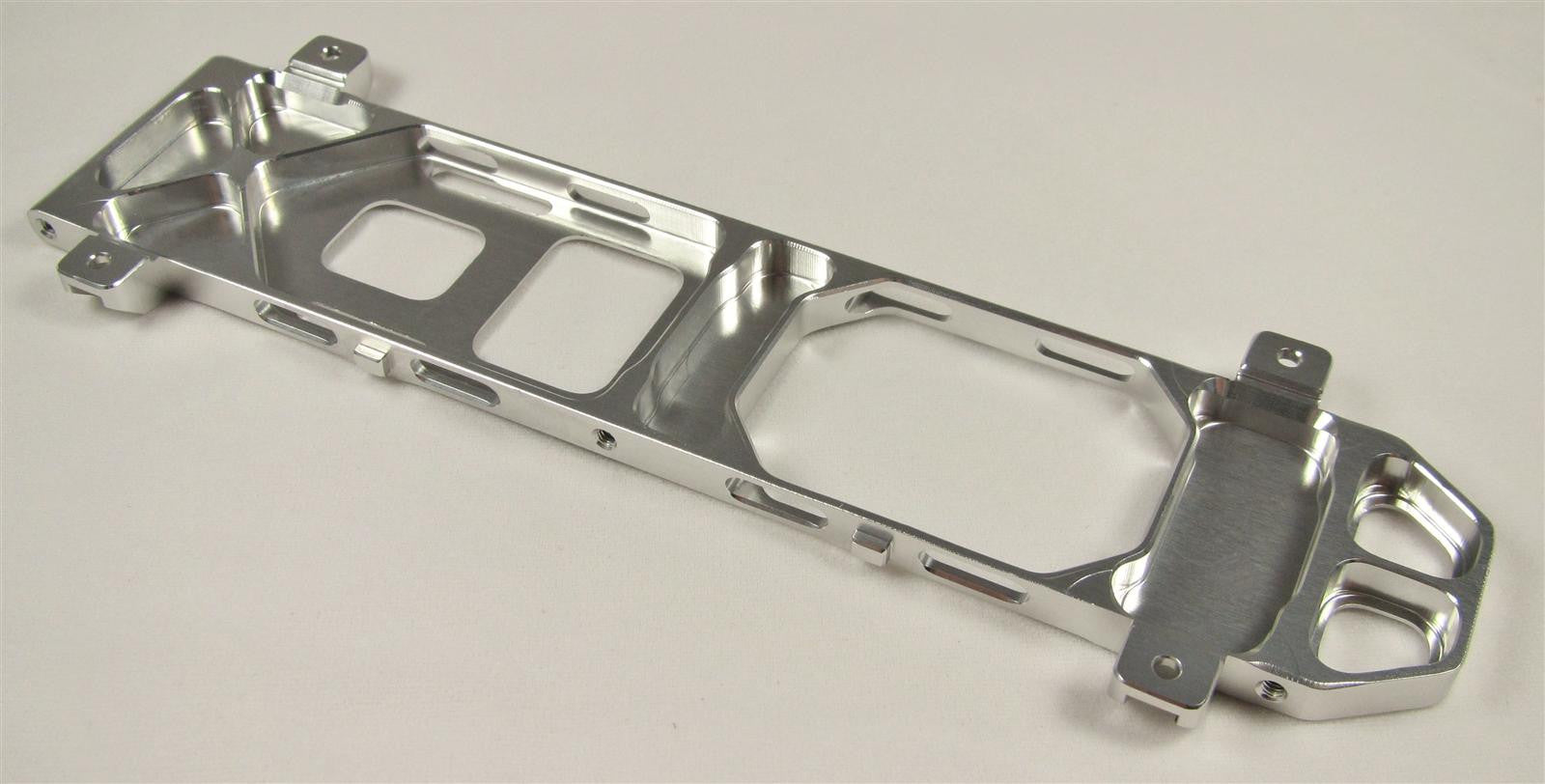

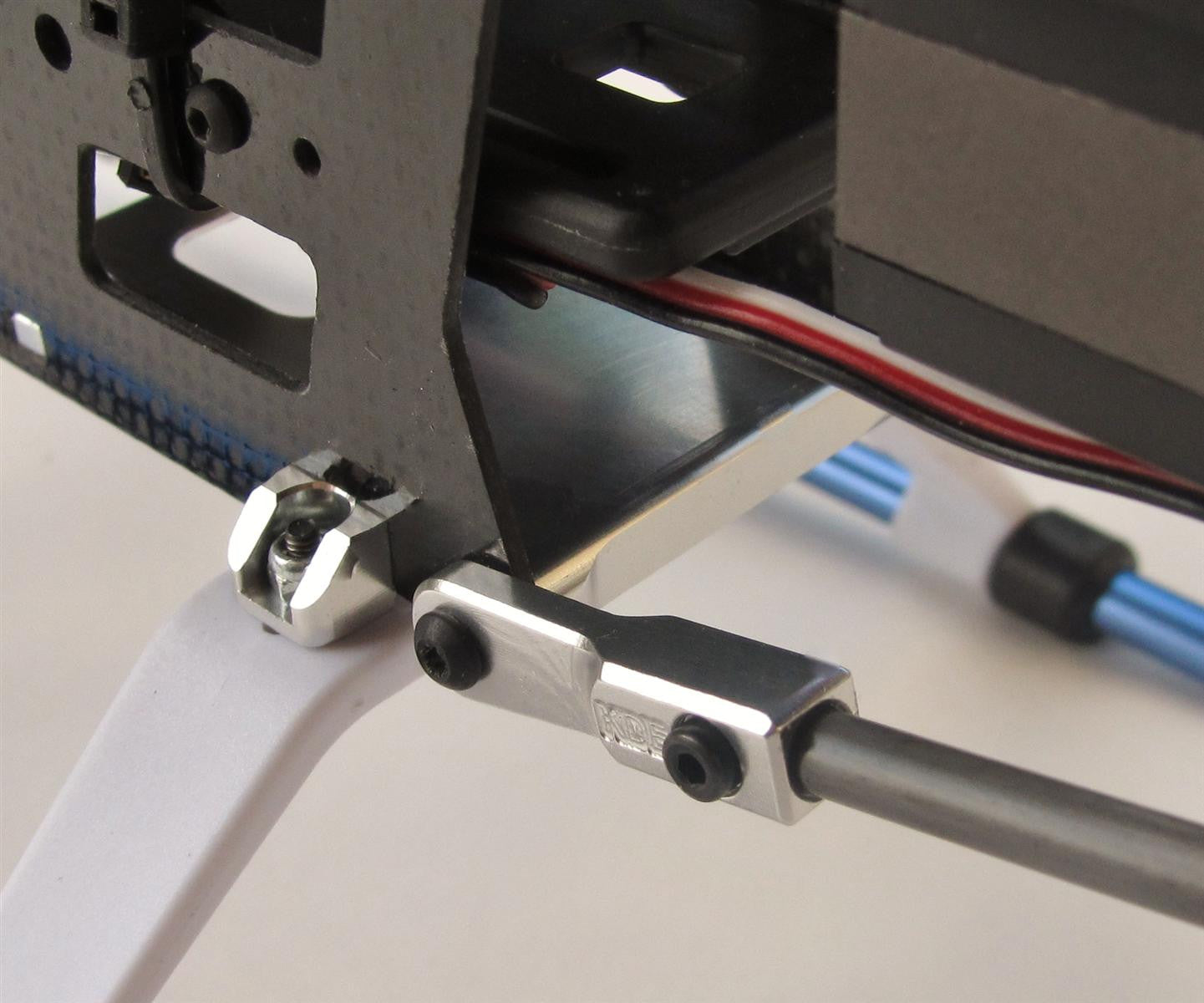

The Bottom Plate Upgrade design provides an FEA-optimized, Aluminum 6061-T6 crossbar construction that prevents unwanted flex during high-torque maneuvers of both the helicopter lower frame section and the connected tail boom braces. Compatible with the T-Rex 450 Sport V2 Electric Series helicopters the new upgrade provides unprecedented strength in an ultralight design – weighing only 16 grams – and provides far greater protection and support of the carbon-frames in the event of a high-impact crash.

Specifications

Material: Aluminum 6061-T6

Models: All ALIGN 450 SPORT V2 and 450 PLUS (V1/DFC) series (replaces stock ALIGN part #H45150).

Includes:

  • One (1) T-Rex 450 SPORT V2 Series Aluminum Bottom Plate Upgrade
  • Four (4) M2 x 0.4 x 6 mm Socket Head Cap Screws (Class 12.9)
  • Four (4) M2 x 0.4 x 10 mm Socket Head Cap Screws (Class 12.9)
  • Four (4) M2 x 0.4 Nylon-Insert Locknuts (Zinc-Plated Class 10.9)

Finish: Clear anodize, mirror-polish CNC gloss

Weight: 16 g (design is FEA optimized for maximum strength and minimum weight)
