Motor Mount Upgrade for ALIGN T-Rex 500 Electric Series Helicopters

Product has been archived, and is no longer available for purchase. This page is for reference only.

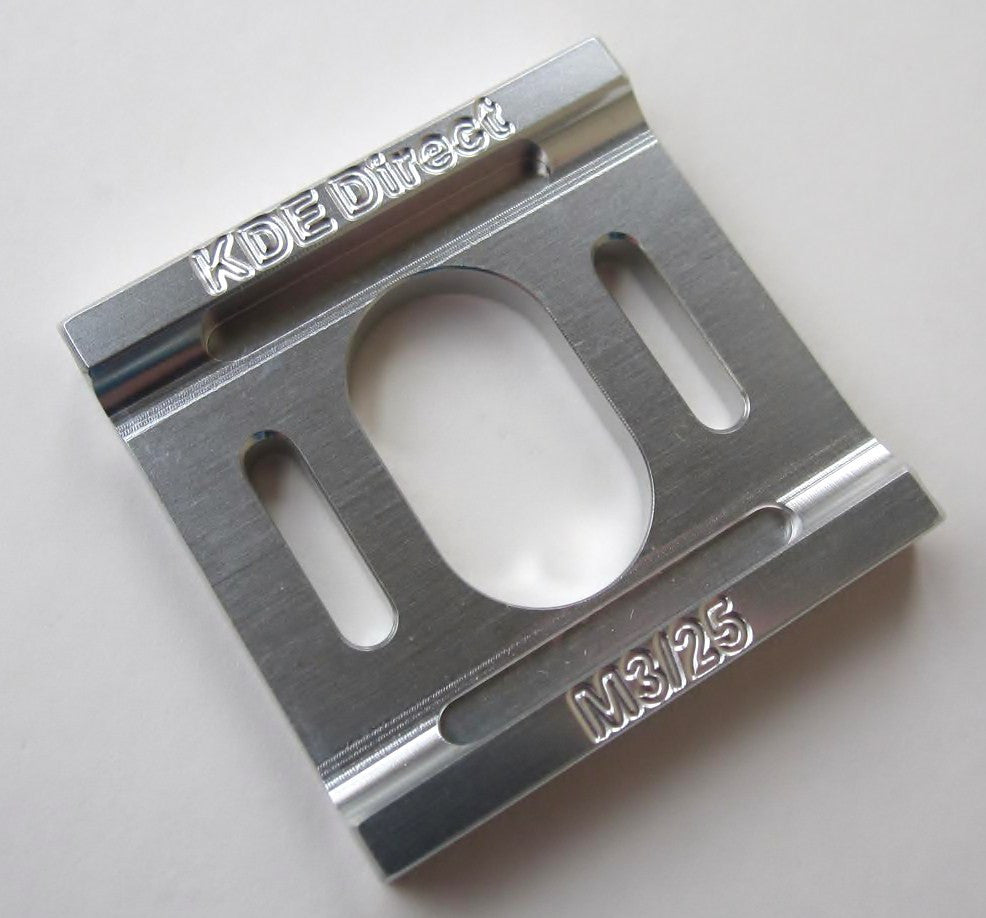

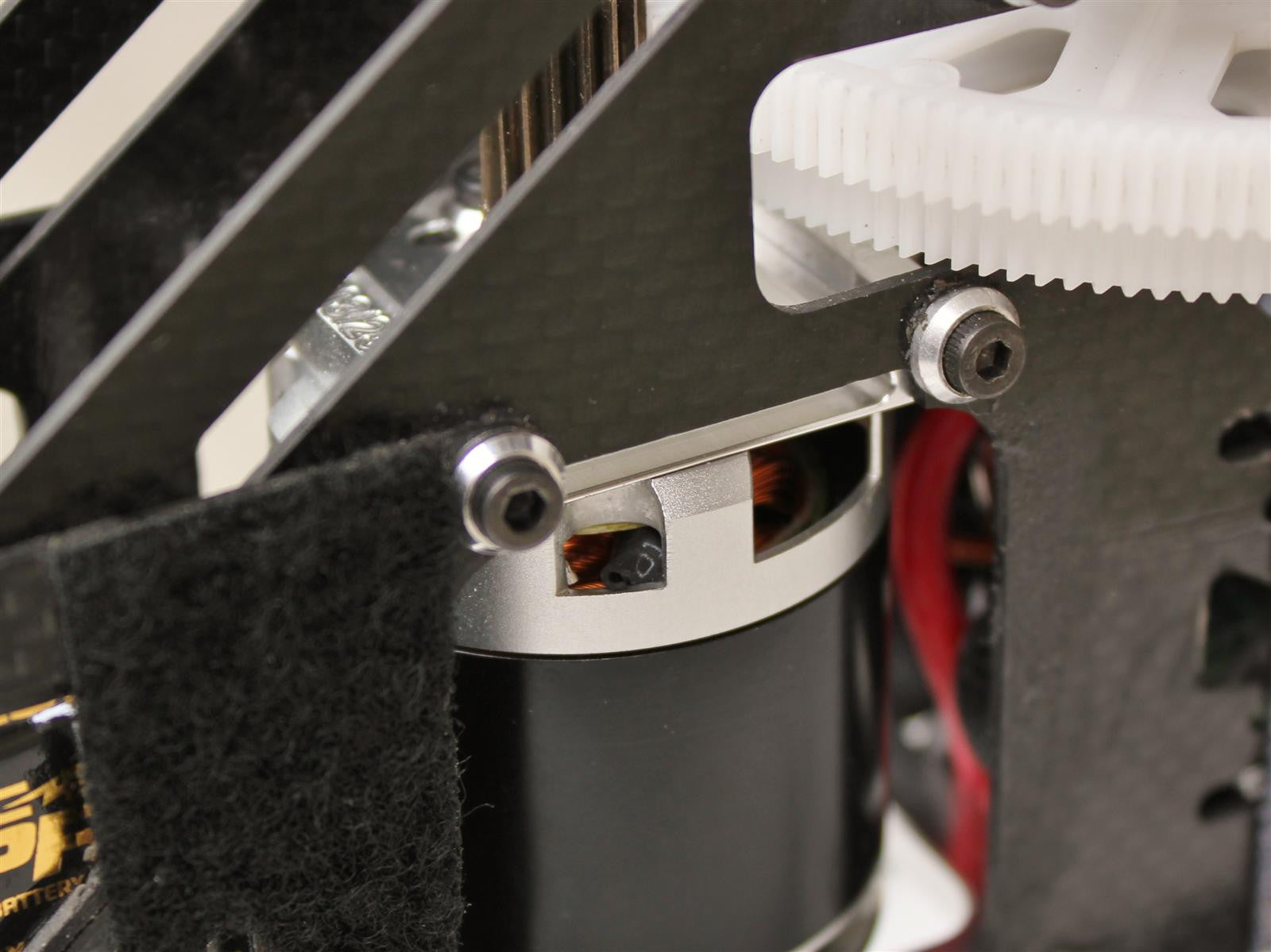

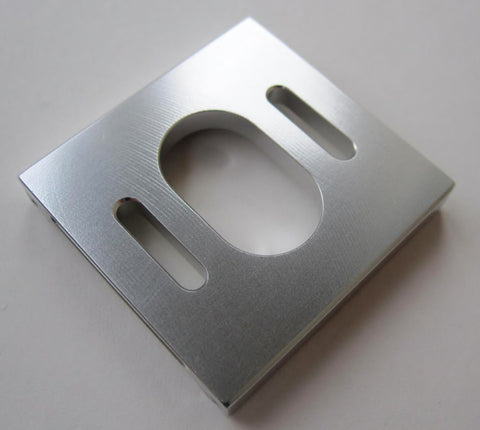

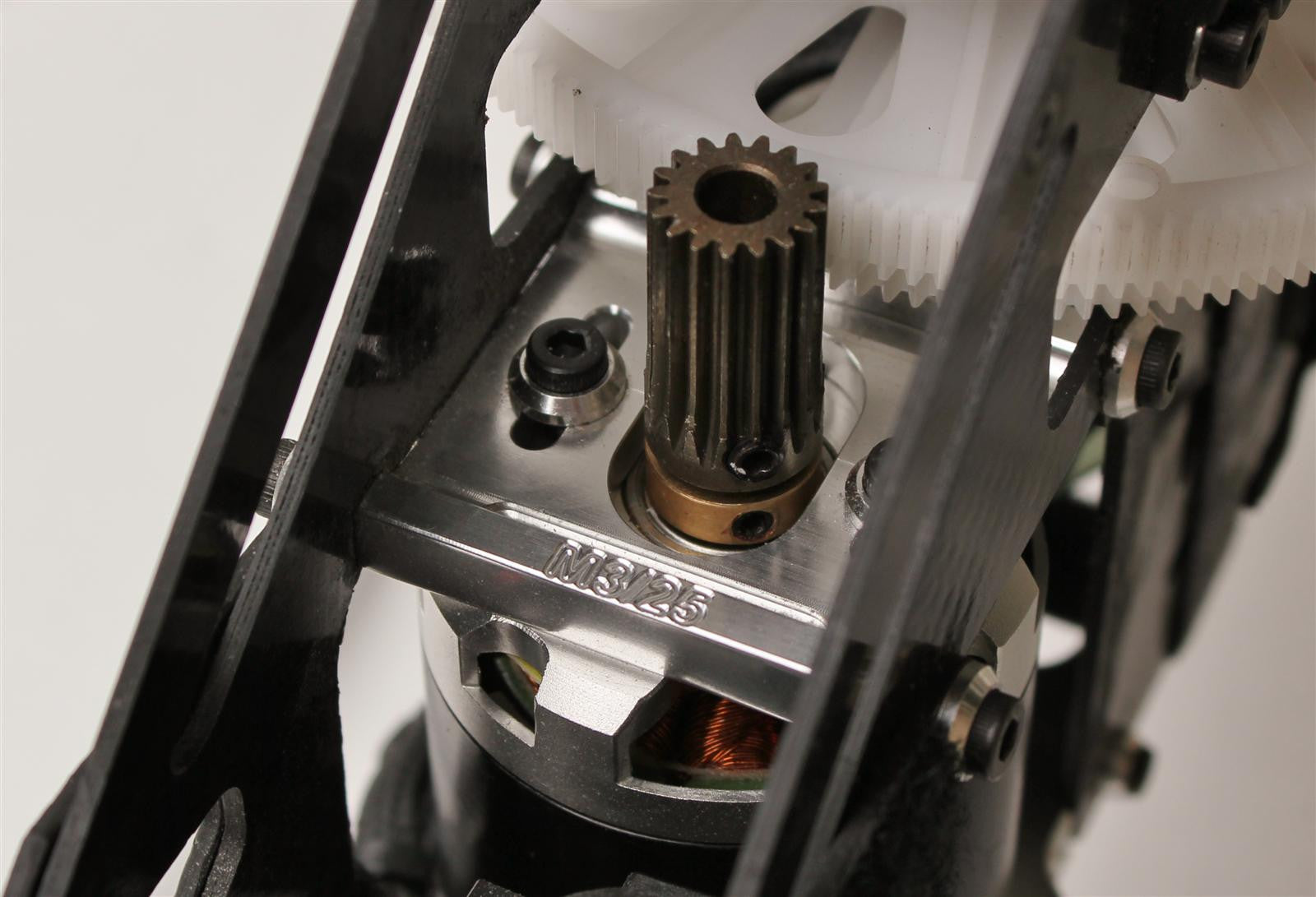

The Motor Mount Upgrade provides an excellent platform for all M3 x 25mm spacing brushless motors and was specifically designed for the latest high-performance motors. The design incorporates a lowered bottom surface for the motor mounting platform and a wider central pocket; allowing the user to install a wide-range of available motors without any modifications required for the carbon frames. Also, with the increased central pocket diameter, the new design can accommodate up to 18T (MOD0.6) pinions without any issues for high-performance setups.


Material: Aluminum 6061-T6

Models: All ALIGN T-Rex 500 (E/GF/ESP) series (replaces stock ALIGN part #H50042).


  • One (1) T-Rex 500 Series Aluminum Motor Mount Upgrade

Finish: Clear anodize, mirror-polish CNC gloss

Weight: 12 g (design is FEA optimized for maximum strength and minimum weight)
