AT500P-MBB

Thrusted Metal Bearing Blocks for ALIGN T-Rex 500 Pro Electric Series Helicopters

Product has been archived, and is no longer available for purchase. This page is for reference only.


ENGINEERING THE UNSEEN



Overview

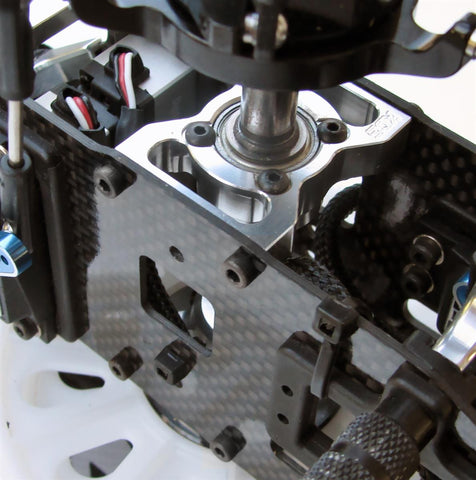

The Thrusted Metal Bearing Block design utilizes high-end CNC machining to produce tight and accurate tolerances throughout the part, giving you the best quality upgrade product on the market. With the addition of the thrust-bearings to support all axial loads, more power will be available for hard pitch-pumps, 3D maneuvers, and autorotations; as well as protecting the integrity of the radial bearings. The new design incorporates bearing-retaining button head socket head cap screws and updated machining for easier installation and durability.

Specifications

Material: Aluminum 6061-T6

Models: All ALIGN T-Rex 500 PRO series (replaces stock ALIGN part #H50075A).

Includes:

  • Two (2) T-Rex 500 PRO Series Aluminum Thrusted Metal Bearing Blocks
  • Two (2) Radial Ball Bearings 8 x 16 x 5 mm
  • Two (2) Thrust Ball Bearings 8 x 15 x 5 mm
  • Two (2) Round Hole Shims 8.1 x 12 x 1 mm
  • Eight (8) M2.5 x 0.45 x 4 mm Button Head Socket Head Cap Screws (Class 12.9)

Finish: Clear anodize, mirror-polish CNC gloss

Weight: 10 g ea. (design is FEA optimized for maximum strength and minimum weight)
