AT550/600-TBMA

Tail Boom Mount Adapters for ALIGN T-Rex 550/600 Series Helicopters

Product has been archived, and is no longer available for purchase. This page is for reference only.


ENGINEERING THE UNSEEN



Overview

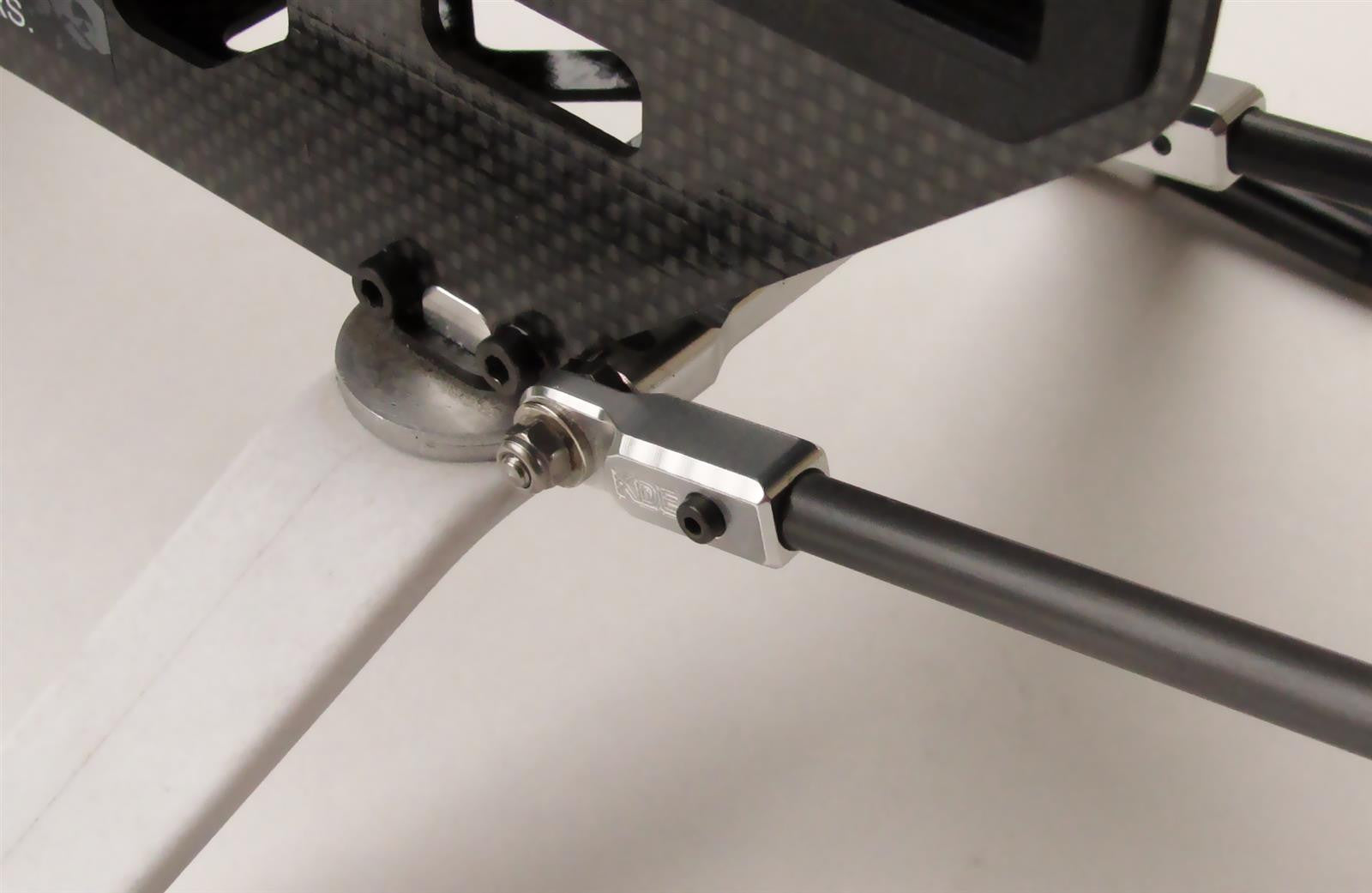

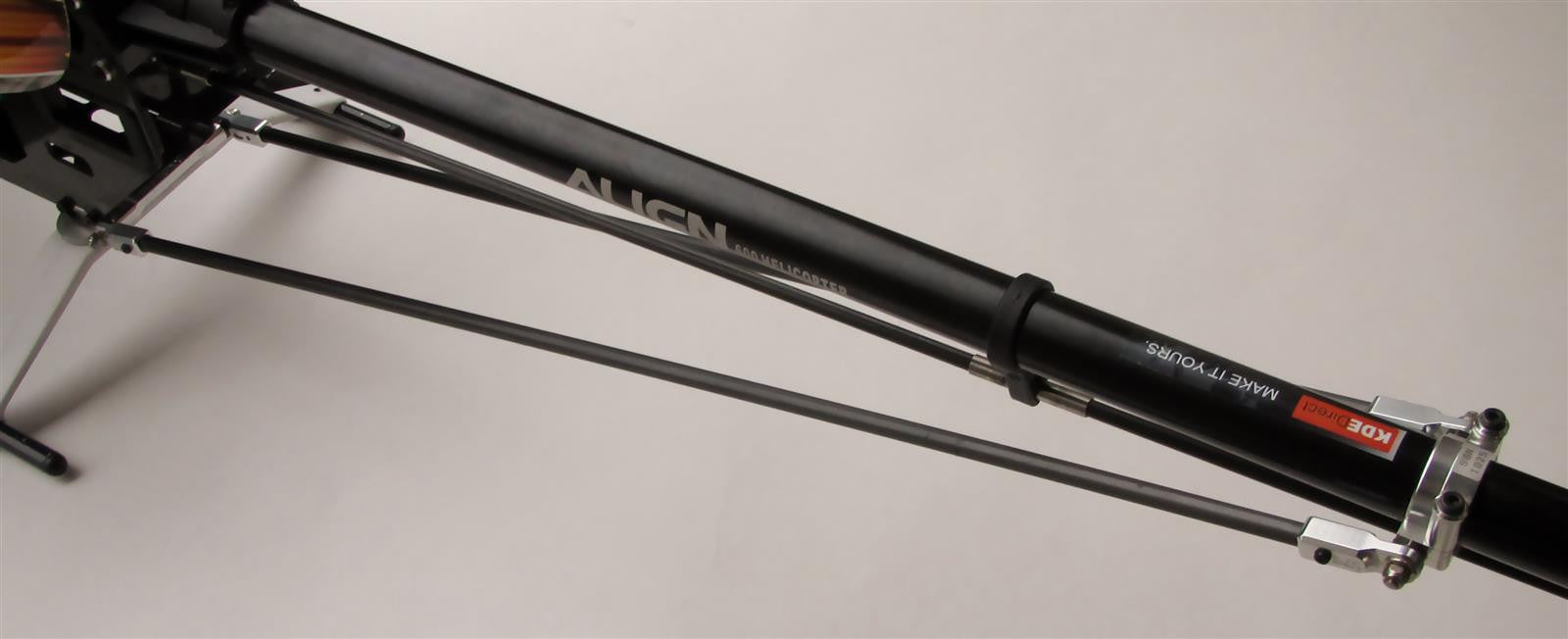

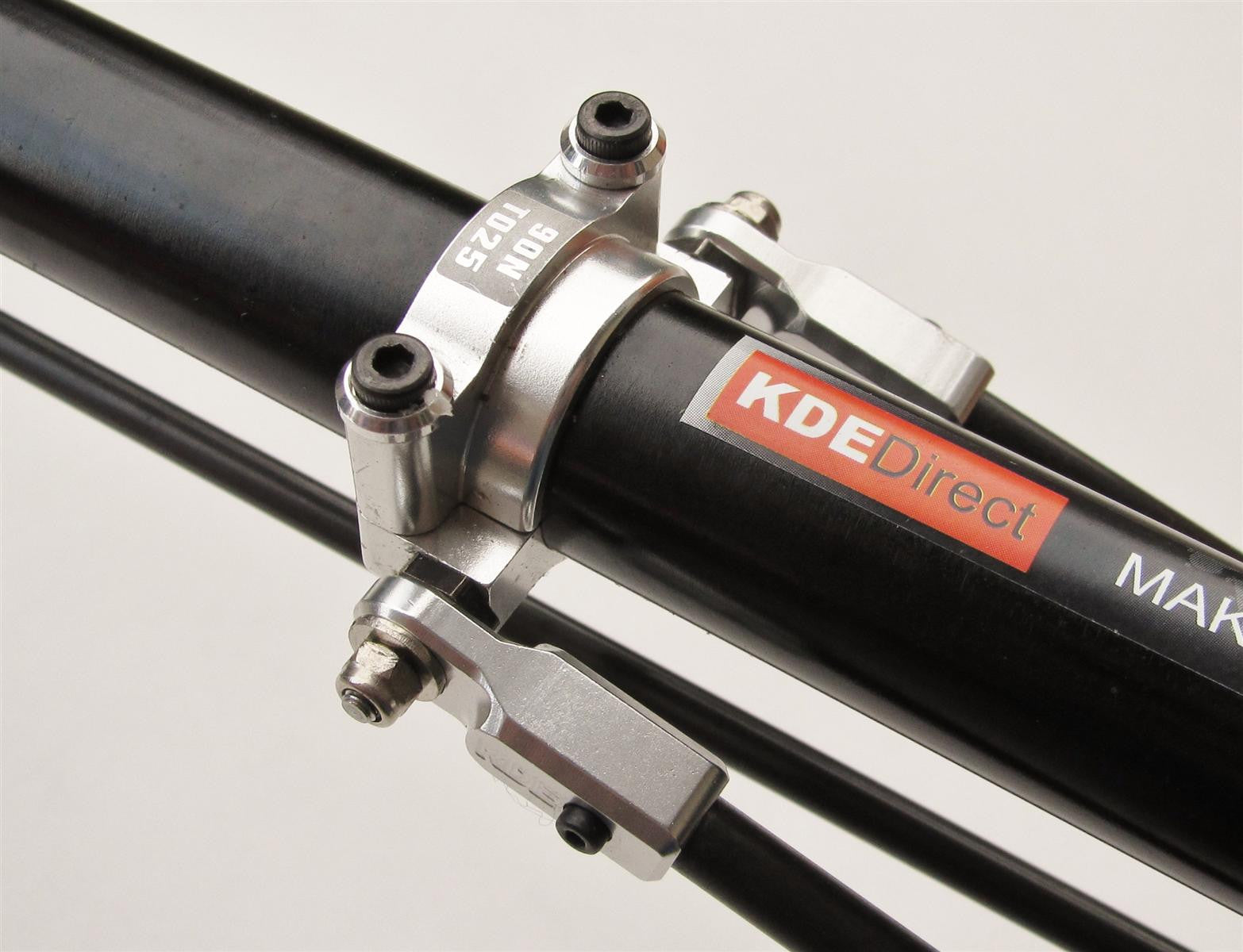

The T-Rex 550/600 series Tail Boom Mount Adapters are the ideal solution for preventing unwanted loosening and failure of the tail boom braces caused by the high-vibration nature of the helicopter. Using a high-strength, SS 17-4 PH construction and CNC-precision machining, the chance of failure is greatly reduced and provides a simple, hassle-free method for tail boom support assembly installation and removal. Can be used on both the Boom Mount and Frame Connection sides of the tail boom braces (sold in pairs) for improved durability and strength.

Specifications

Material: Stainless Steel 17-4PH

Models: All ALIGN T-Rex 550, 600, and 600N series. Also compatible with other 550/600-class helicopters, such as the Outrage Fusion 50 and Synergy E5.

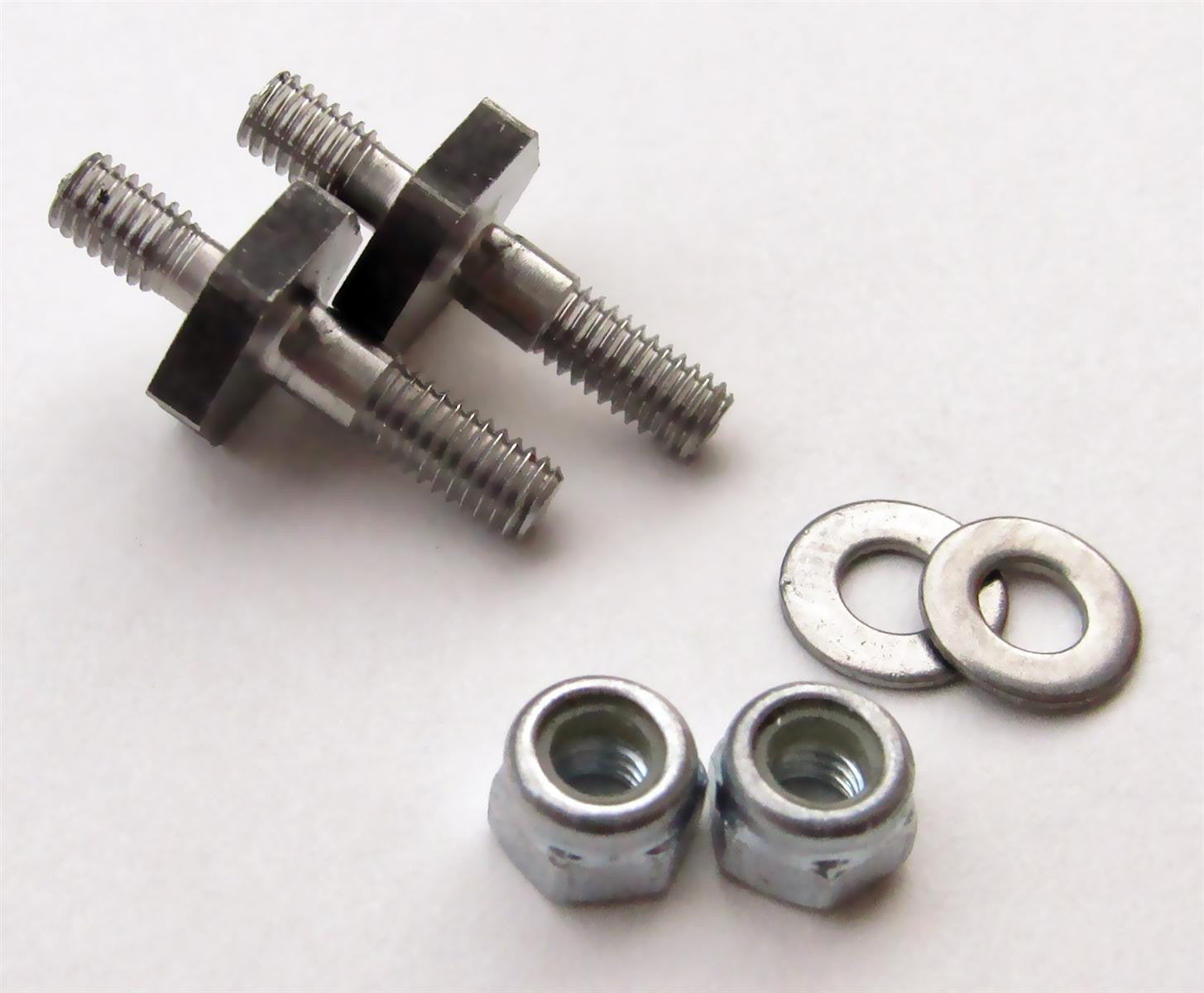

Includes:

  • Two (2) T-Rex 550/600 Series Stainless Steel Tail Boom Mount Adapters
  • Two (2) M3 Flat Washers (Stainless Steel)
  • Two (2) M3 x 0.5 Nylon-Insert Locknuts (Zinc-Plated Class 10.9)

Weight: Tail Boom Mount Adapters: 2 g ea. (design is FEA optimized for maximum strength)
