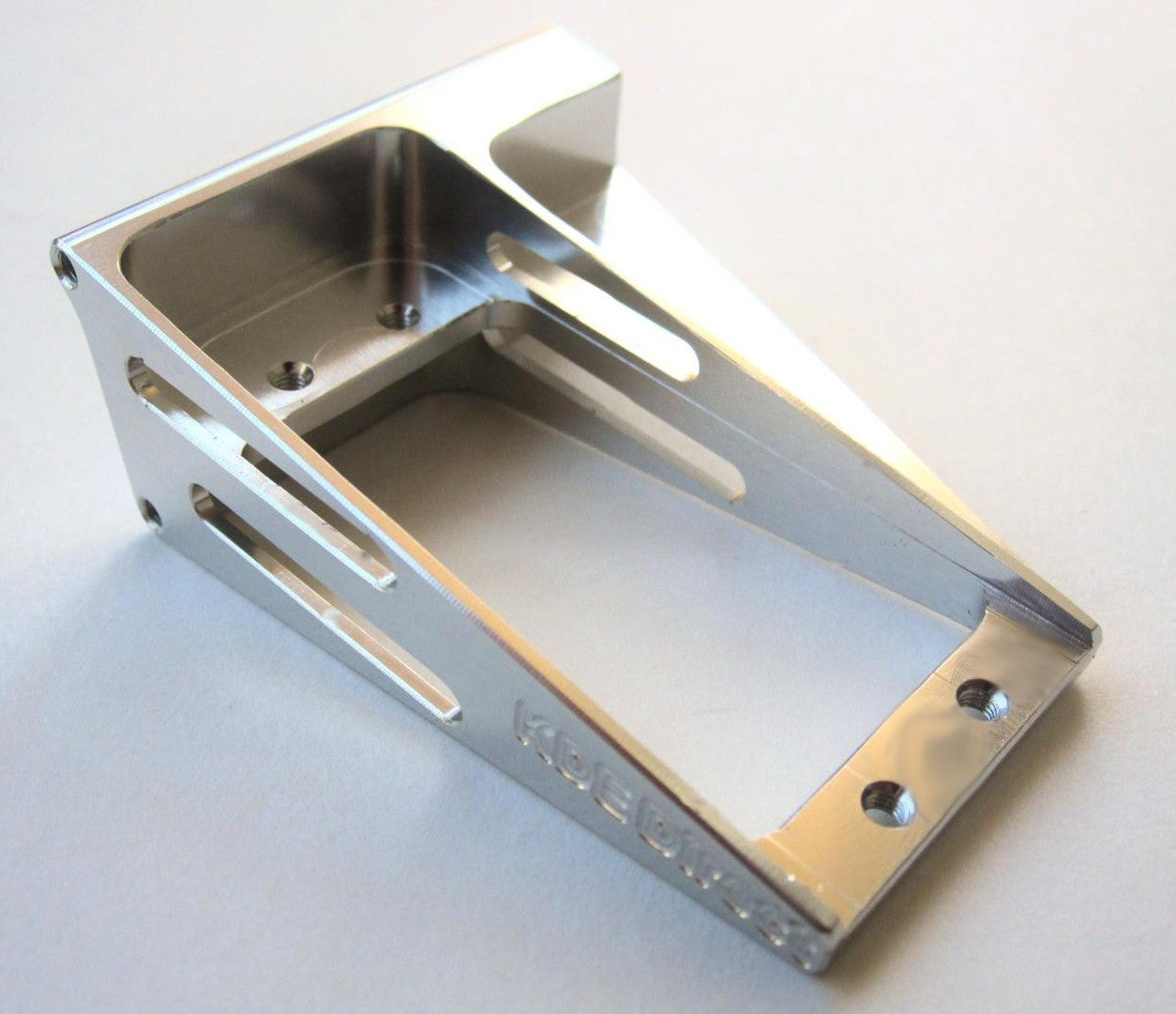

AT550-TSM

Tail Servo Mount for ALIGN T-Rex 550 Electric Series Helicopters

Product has been archived, and is no longer available for purchase. This page is for reference only.


ENGINEERING THE UNSEEN



Overview

The Tail Servo Mount design provides superior tail control and frame rigidity benefits, with an aluminum 6061-T6 frame that provides a solid foundation for the tail servo (no more stripped plastic threads!).

Specifications

Material: Aluminum 6061-T6

Models: All ALIGN T-Rex 550 series (replaces stock ALIGN part #H55018).

Includes:

  • One (1) T-Rex 550 Series Aluminum Tail Servo Mount
  • Four (4) M2.5 x 0.45 x 8 mm Button Head Socket Head Cap Screws (Class 12.9)
  • Four (4) M2.5 x 0.45 x 10 mm Button Head Socket Head Cap Screws (Class 12.9)

Finish: Clear anodize, mirror-polish CNC gloss

Weight: 18 g (design is FEA optimized for maximum strength and minimum weight)
