AT600-MBB-V2

Thrusted Metal Bearing Blocks V2 for ALIGN T-Rex 600 Electric Series Helicopters

Product has been archived, and is no longer available for purchase. This page is for reference only.


ENGINEERING THE UNSEEN



Overview

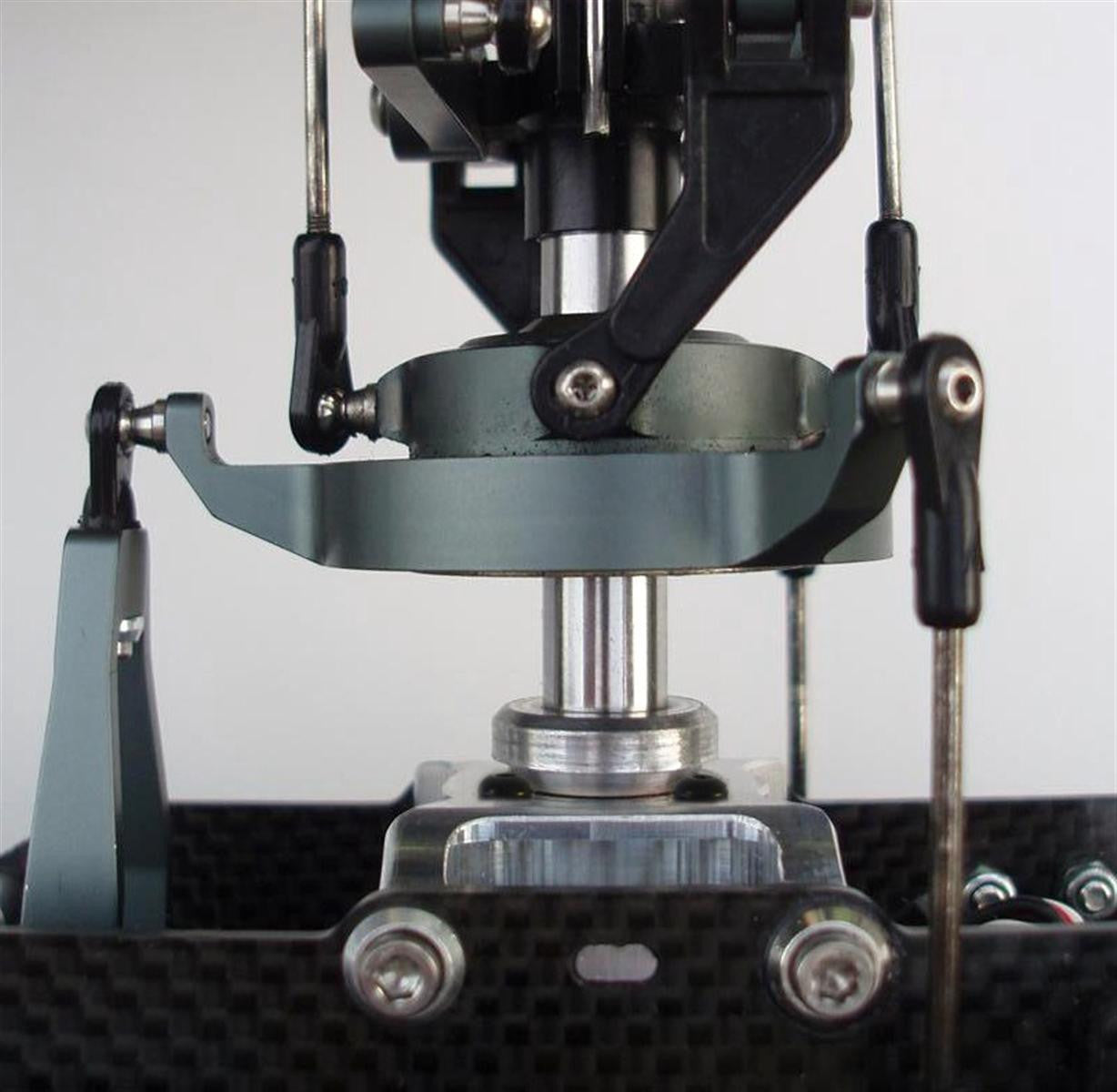

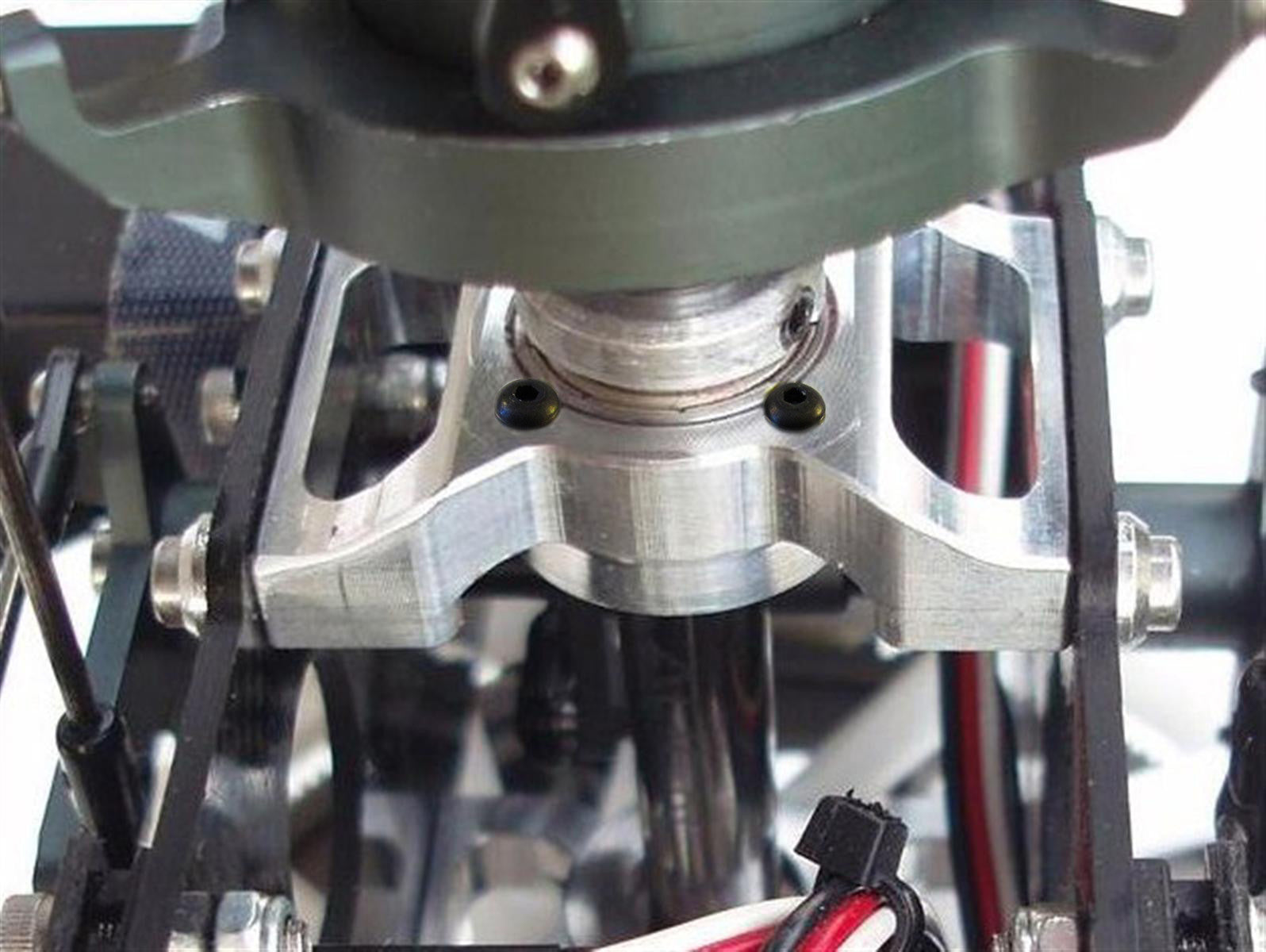

The Thrusted Metal Bearing Block design utilizes high-end CNC machining to produce tight and accurate tolerances throughout the part, giving you the best quality upgrade product on the market. With the addition of the thrust-bearings to support all axial loads, more power will be available for hard pitch-pumps, 3D maneuvers, and autorotations; as well as protecting the integrity of the radial bearings. New "V2" design incorporates bearing-retaining button head socket head cap screws and updated machining for easier installation and increased durability.

Notice: Due to the tapered upper-bearing block design, these are NOT compatible with the new DFC shafts and require the separate shaft lock-collar for proper installation.

Specifications

Material: Aluminum 6061-T6

Models: All ALIGN T-Rex 600 (E/CF/GF/ESP) series (replaces stock ALIGN part #H60031).

Includes:

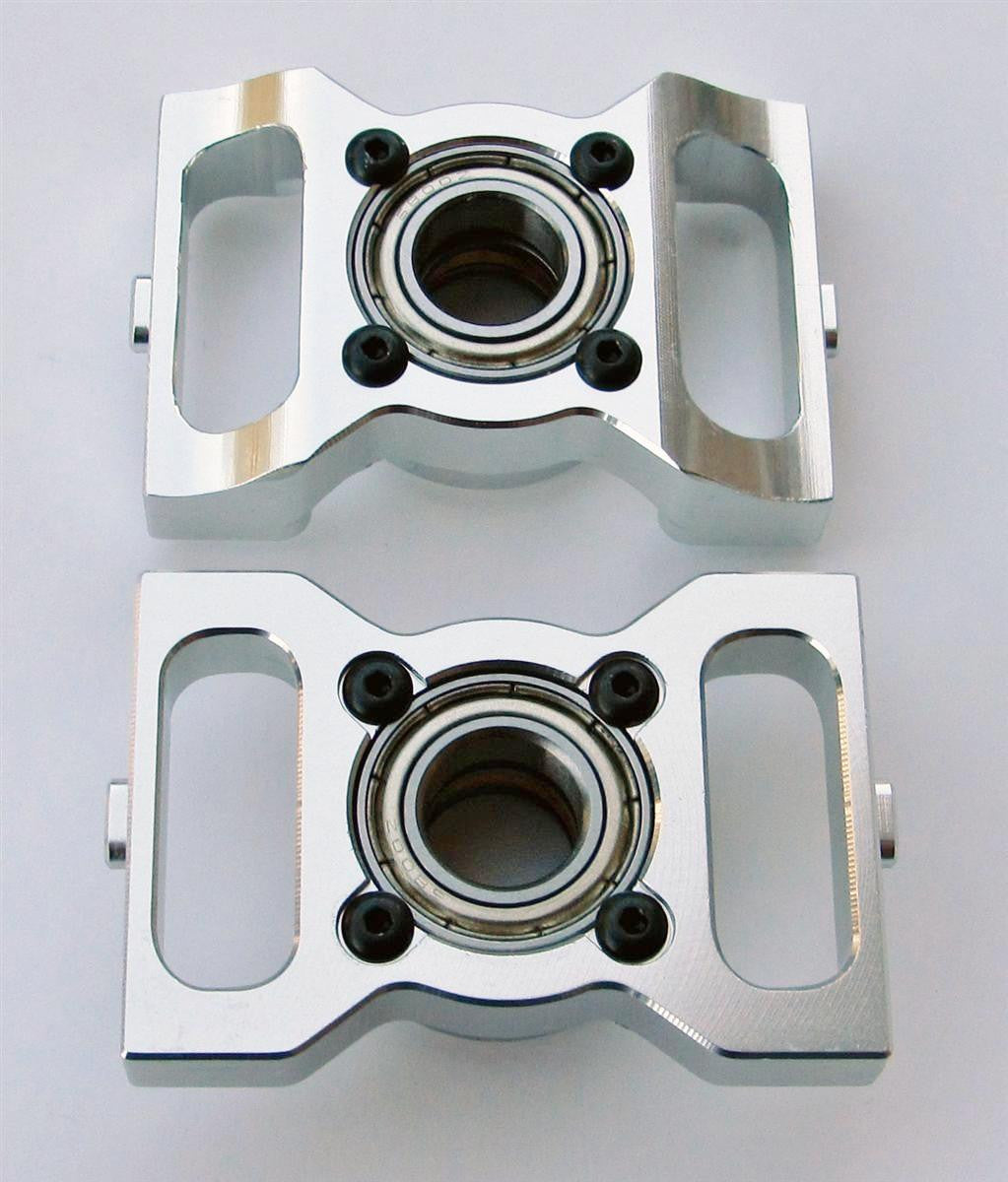

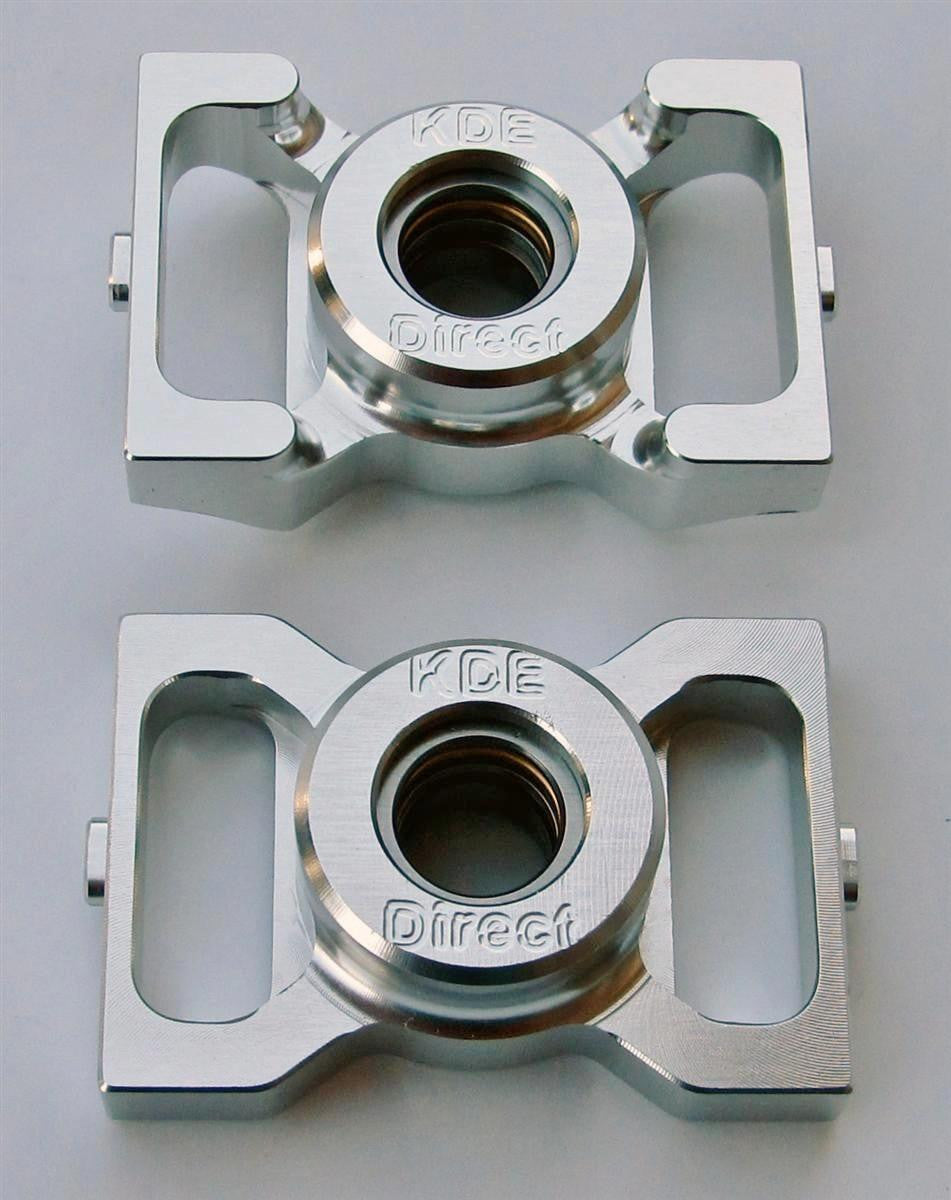

  • Two (2) T-Rex 600 Series Aluminum Thrusted Metal Bearing Blocks V2 (Upper/Lower)
  • Two (2) Radial Ball Bearings 10 x 19 x 5 mm
  • Two (2) Thrust Ball Bearings 10 x 18 x 5.5 mm
  • Two (2) Round Hole Shims 10.1 x 14 x 1 mm
  • Eight (8) M2.5 x 0.45 x 4 mm Button Head Socket Head Cap Screws (Class 12.9)

Finish: Clear anodize, mirror-polish CNC gloss

Weight: 15 g ea. (design is FEA optimized for maximum strength and minimum weight)
