Frame Mounting Block for ALIGN T-Rex 700 Electric Series Helicopters

Product has been archived, and is no longer available for purchase. This page is for reference only.

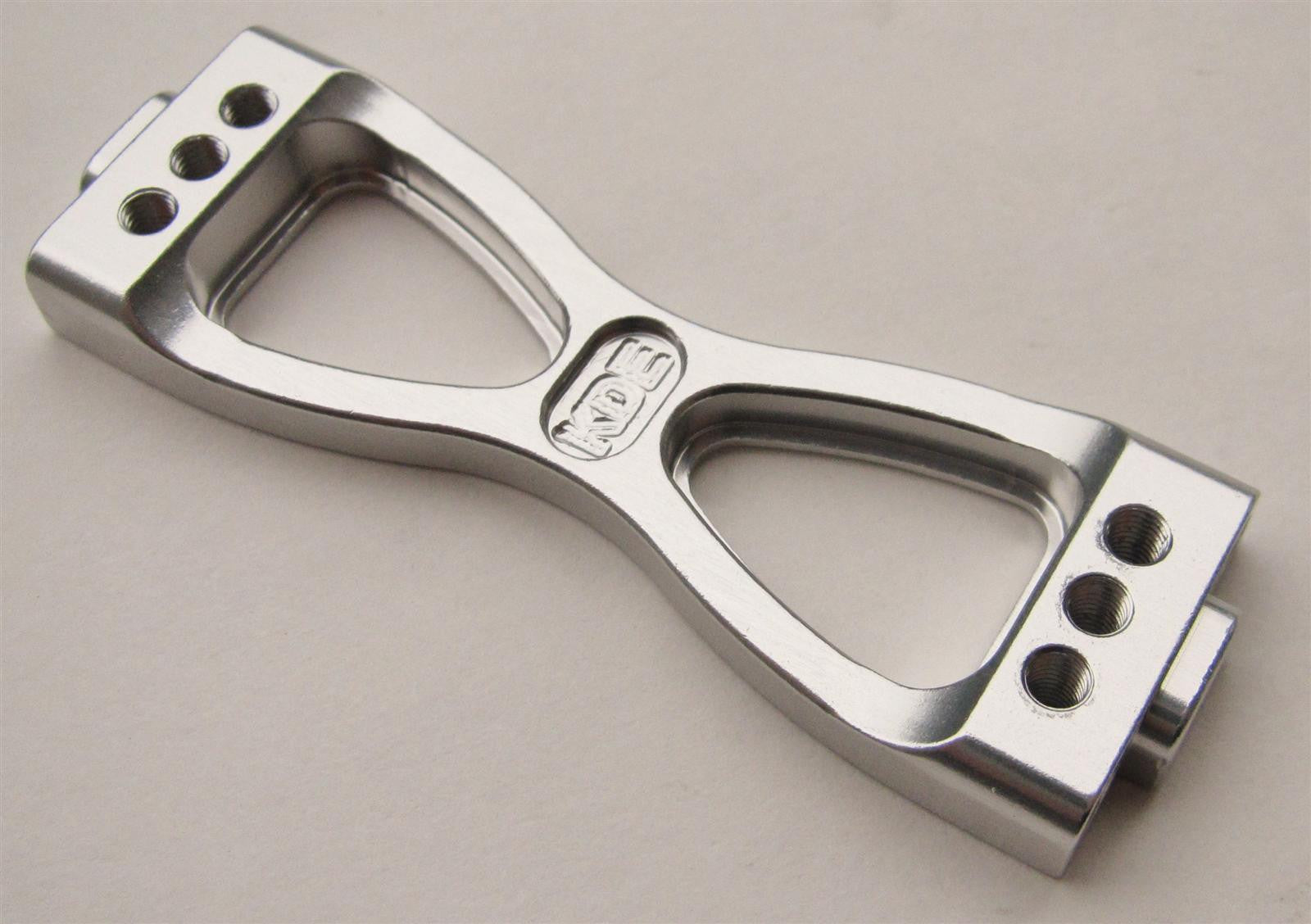

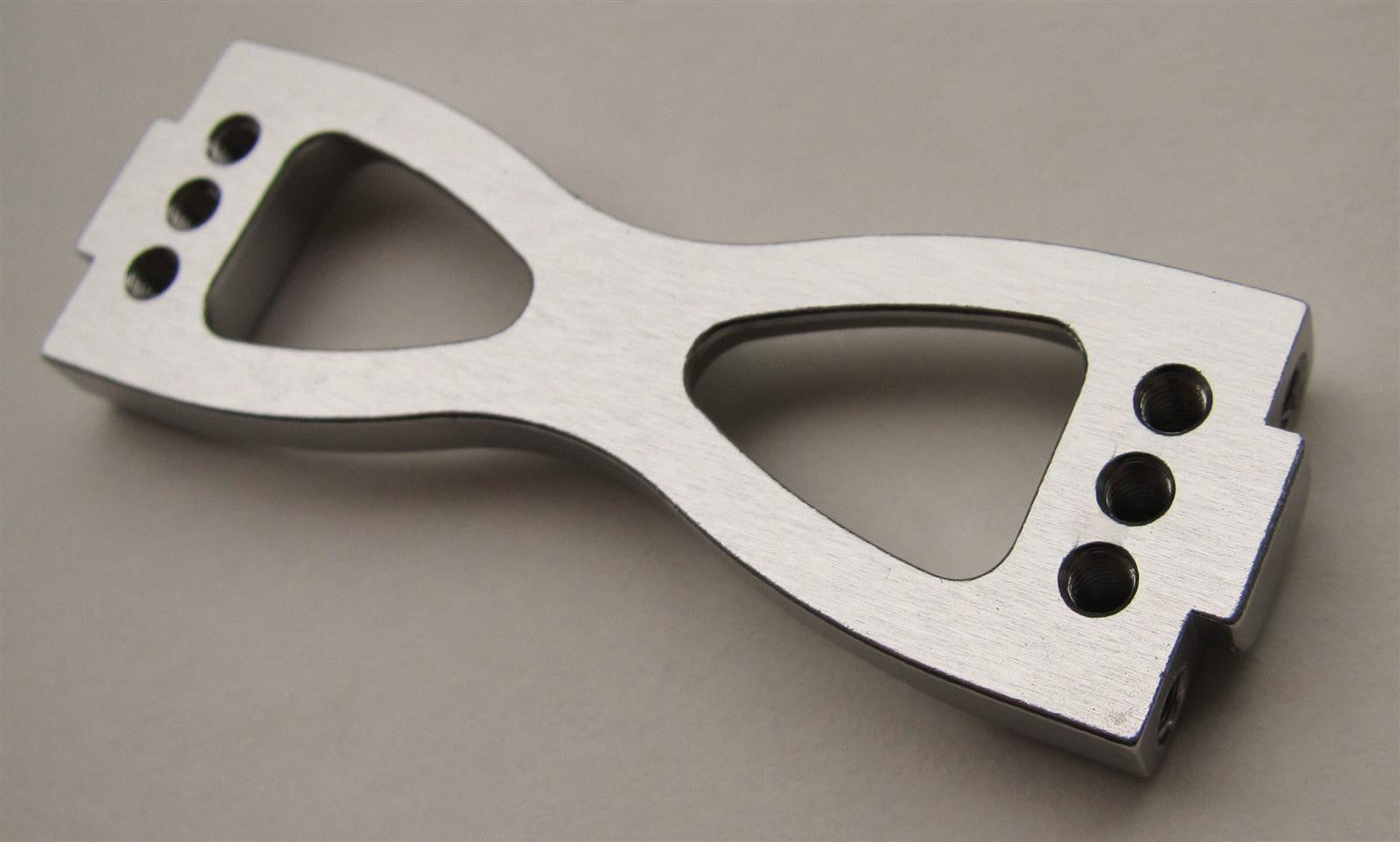

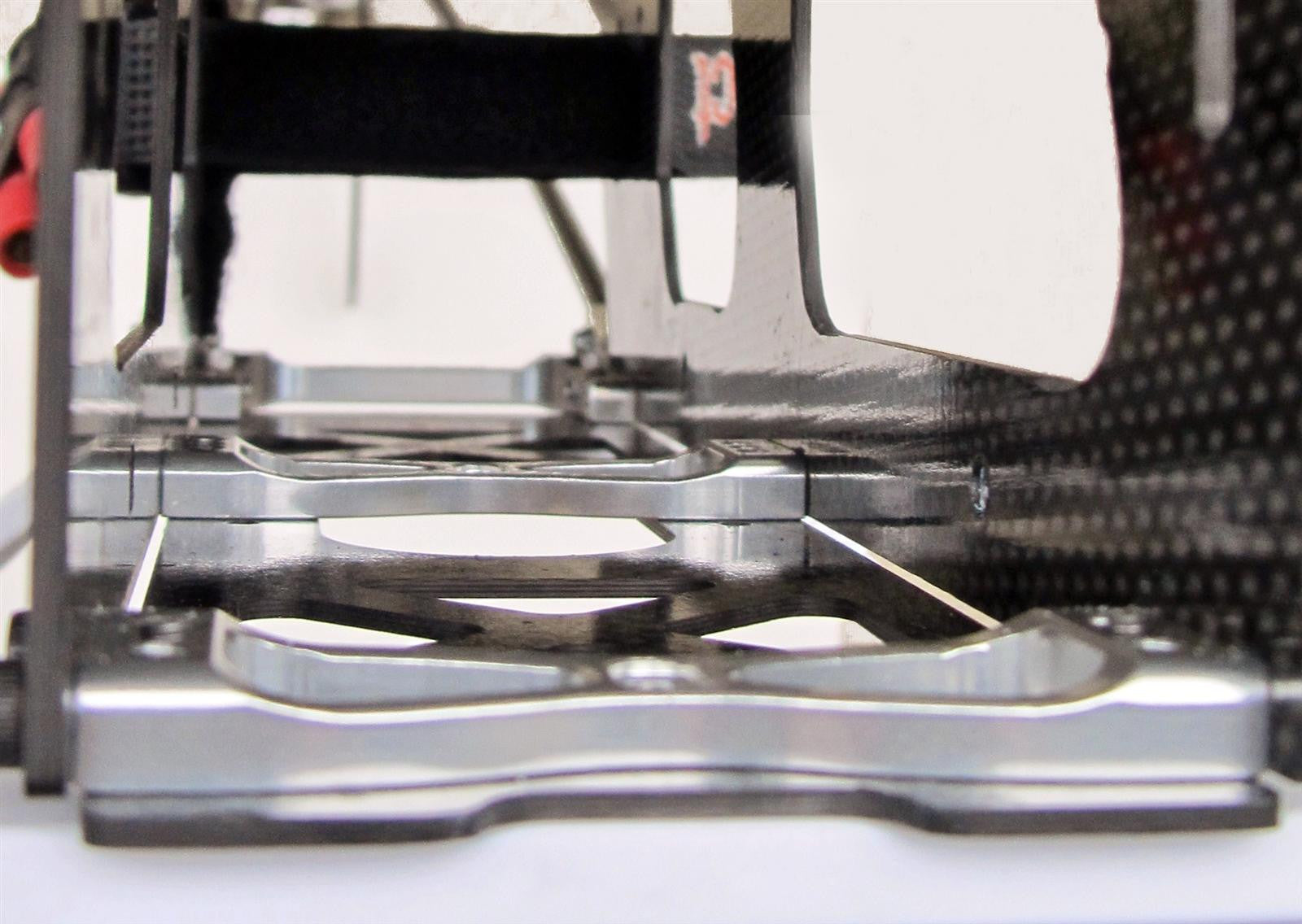

The Frame Mounting Block design provides a significant increase in frame-stiffness and crash-protection for the carbon frames of the helicopter, and is a direct bolt-in upgrade for the ALIGN T-Rex 700E series helicopters. Incorporating a lightweight and FEA-optimized, X-beam design; the new upgrade provides the highest strength-to-weight ratio available for the added benefits in flight performance. In addition, the low-profile of the cross-webbing provides adequate clearance for the LiPos during installation/removal, preventing any issues with proper operation of the power system.

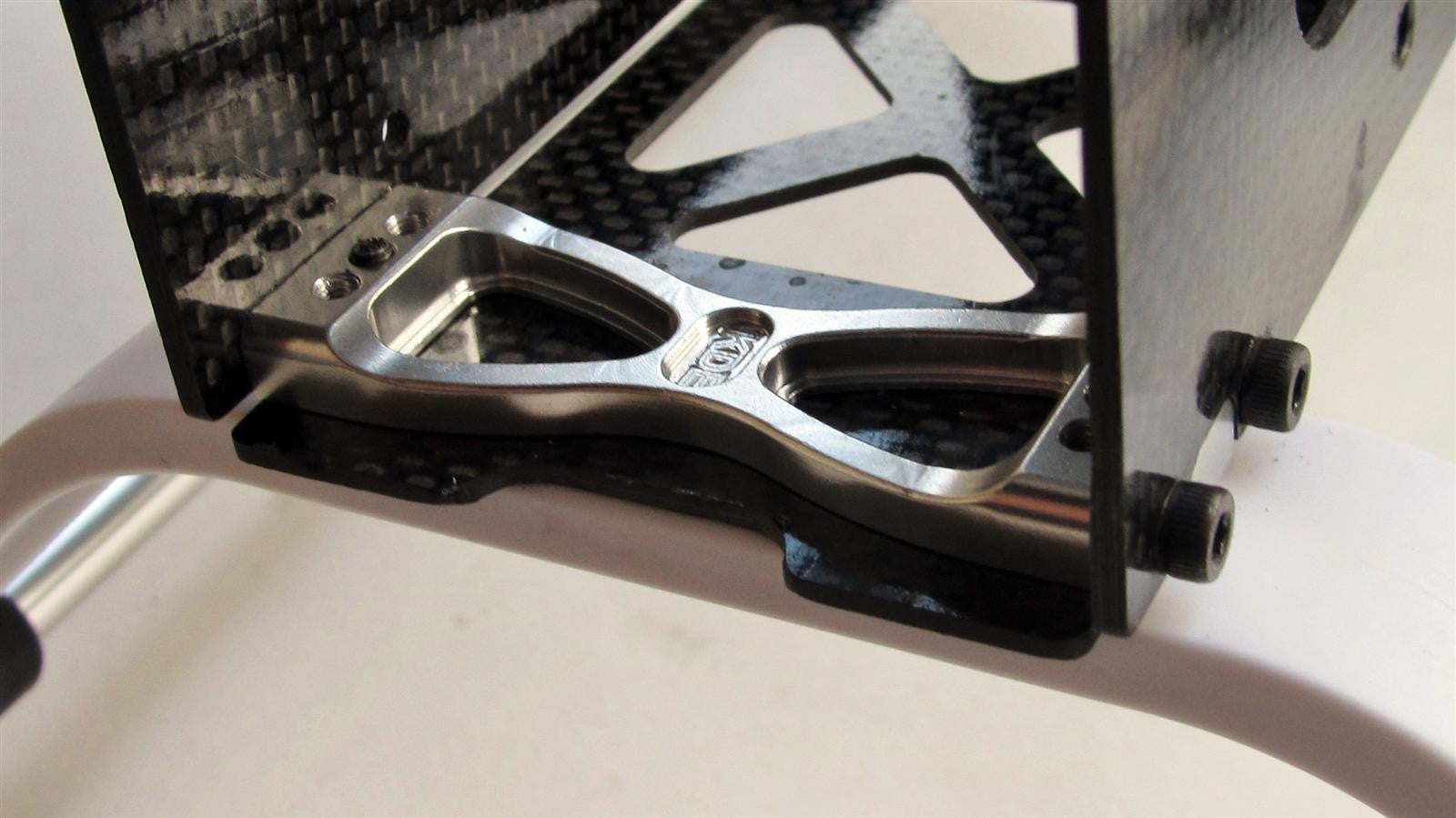

The Frame Mounting Block can be used in both the front and middle frame locations of the 700E series helicopters.


Material: Aluminum 6061-T6

Models: All ALIGN T-Rex 700 (V1/V2/V3/3GX/F3C) series (replaces stock ALIGN part #H70049).


  • One (1) T-Rex 700 Series Aluminum Frame Mounting Block
  • Four (4) M3 x 0.5 x 8 mm Socket Head Cap Screws (Class 12.9)

Finish: Clear anodize, mirror-polish CNC gloss

Weight: 8 g (design is FEA optimized for maximum strength and minimum weight)
