AT700N-ECKRMU

E-Conversion Receiver Mount Upgrade for ALIGN T-Rex 700 Nitro Series Helicopters

Product has been archived, and is no longer available for purchase. This page is for reference only.


ENGINEERING THE UNSEEN



Overview

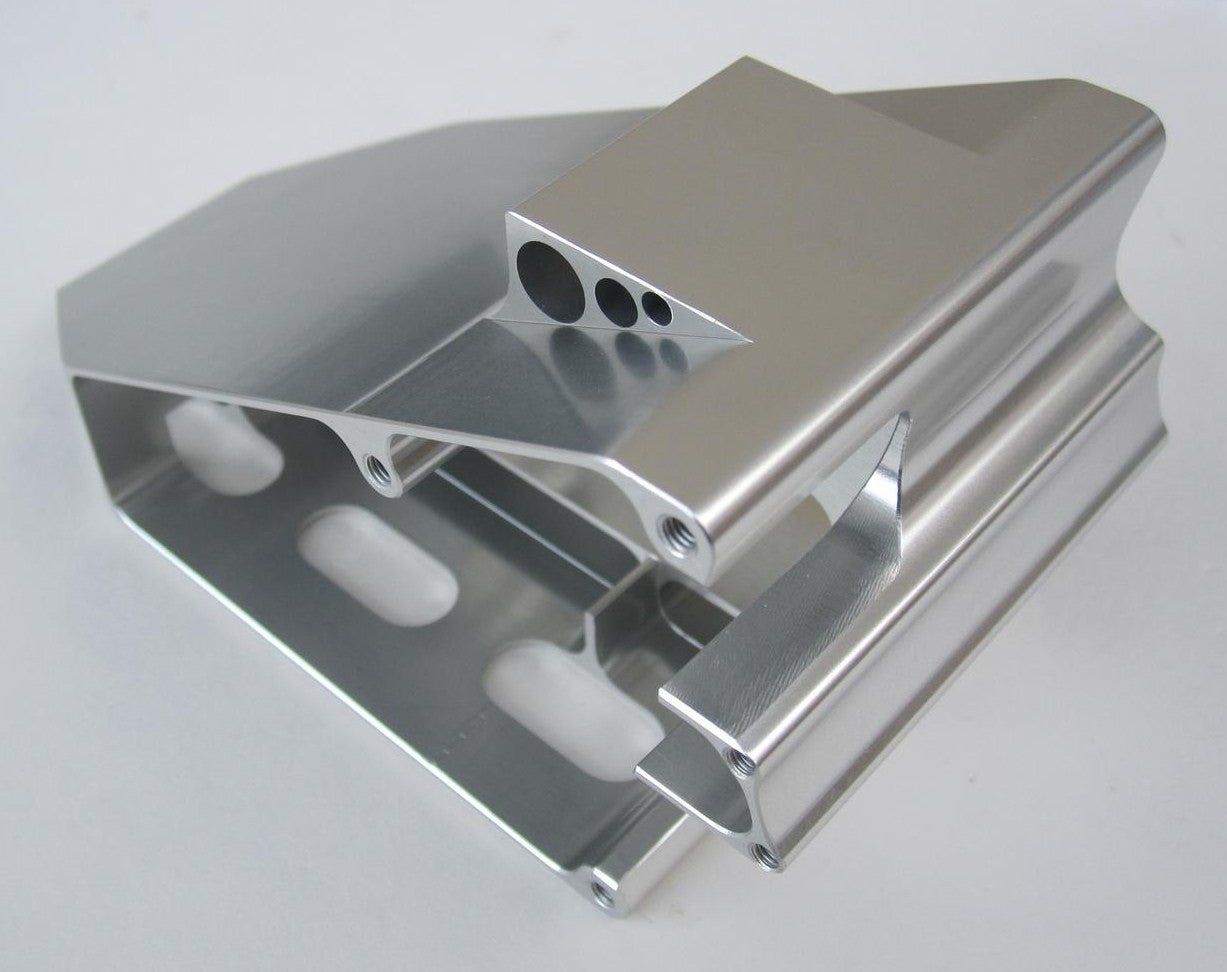

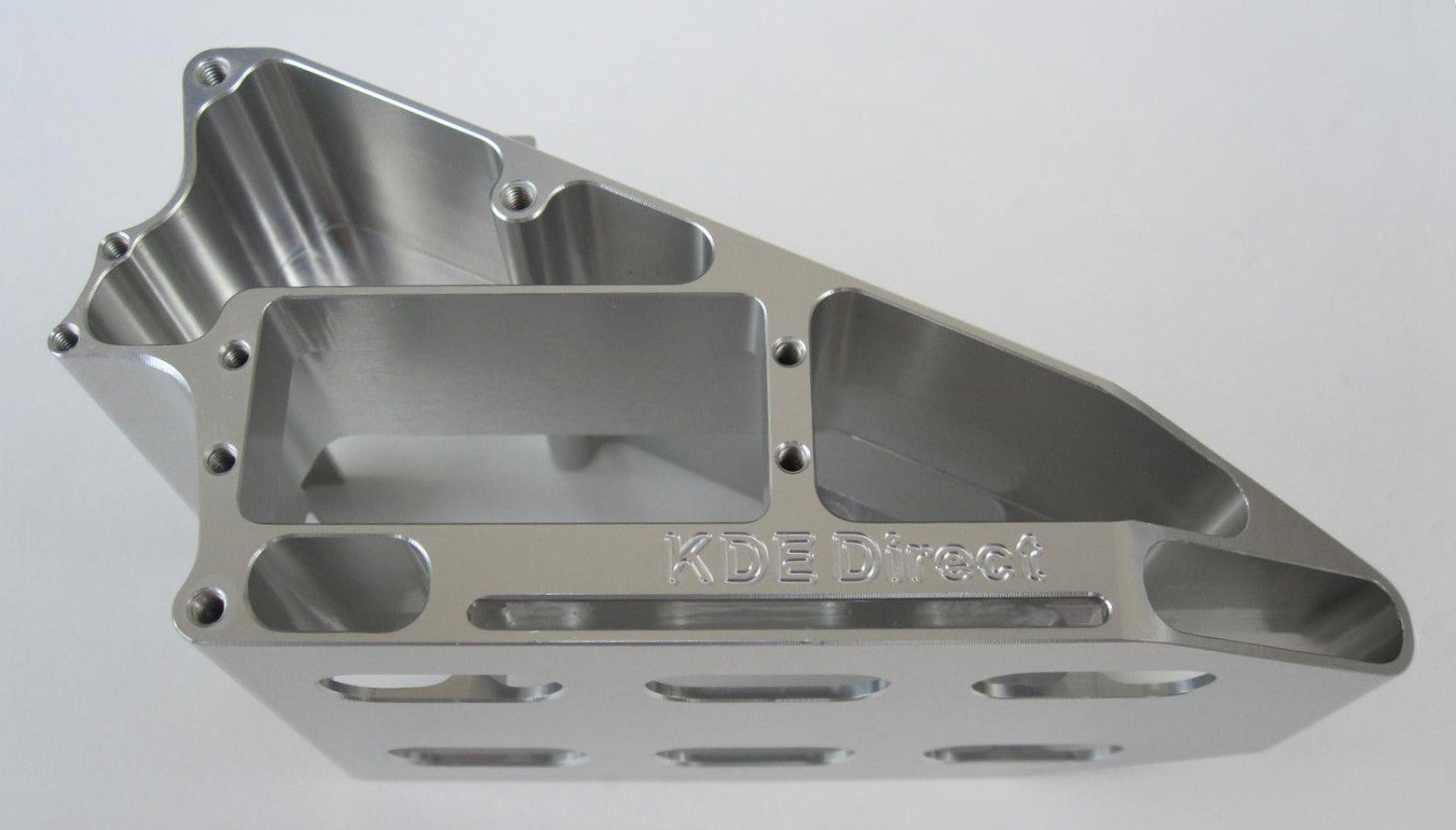

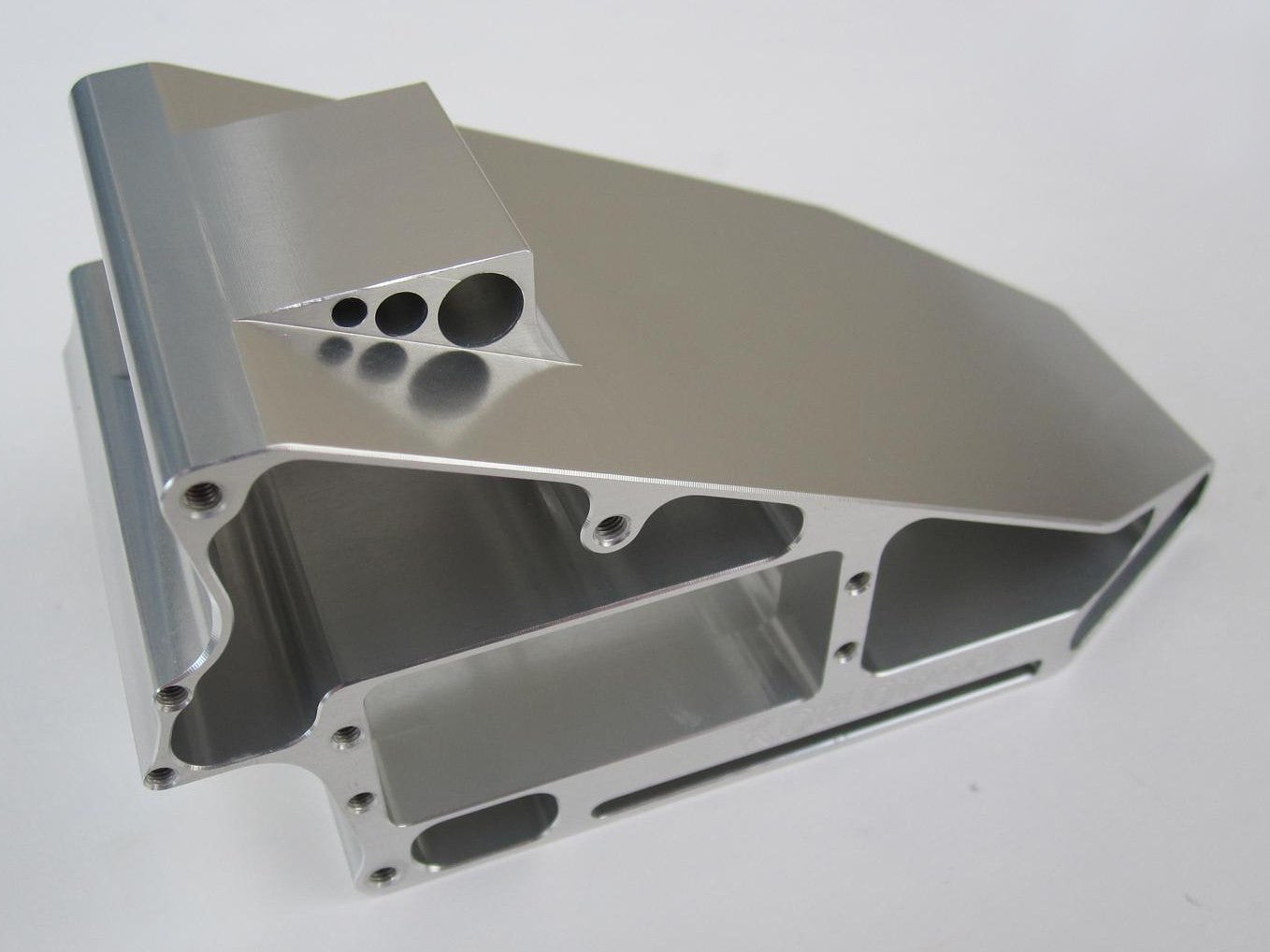

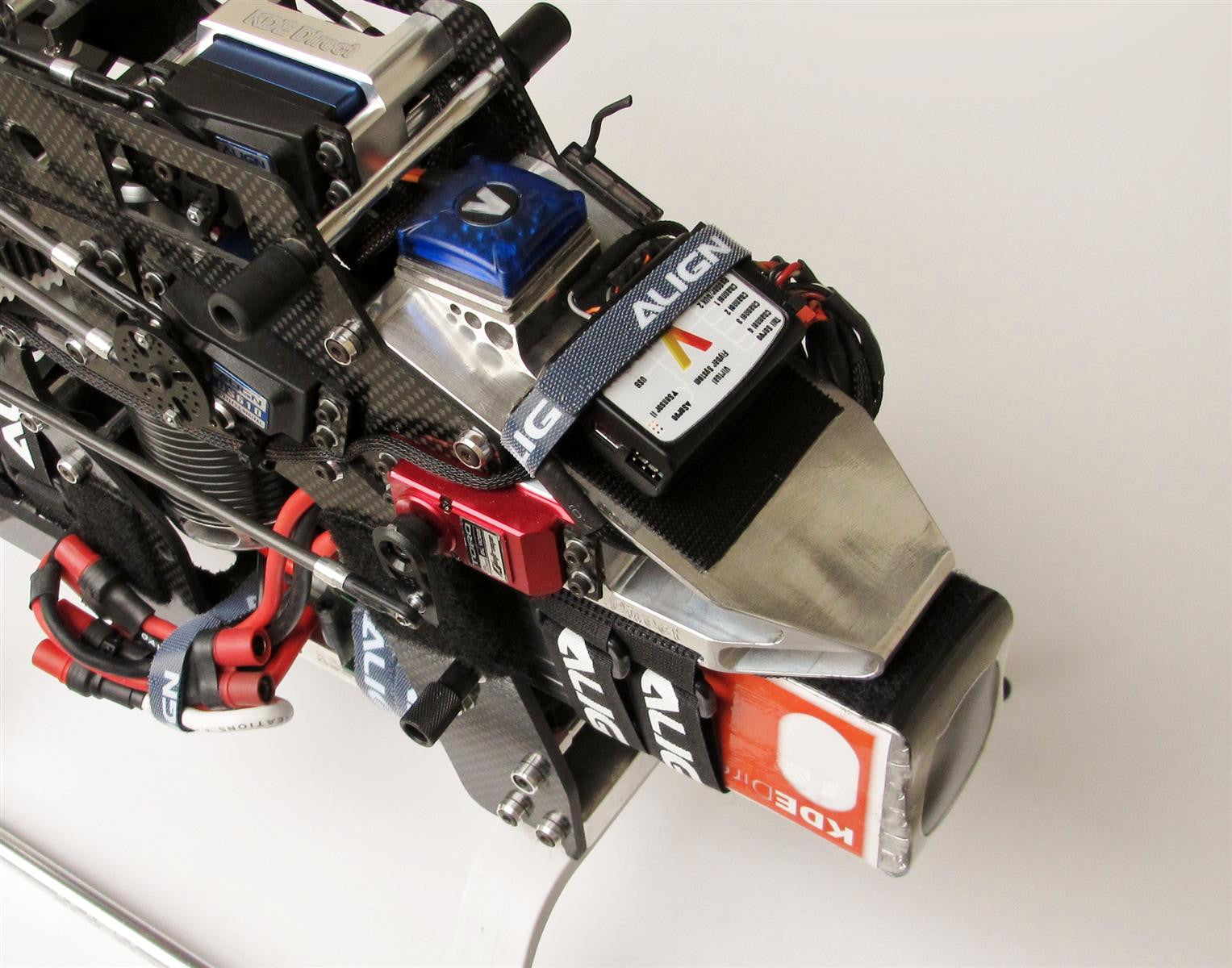

The ALIGN T-Rex 700N/800 E-Conversion Series Receiver Mount Upgrade is a component of the Electronic Conversion series product line; designed to convert the nitro helicopter frame structure into a true 90-class electric. Utilizing the latest technology in CNC-machining and FEA-design analysis, the new upgrade incorporates a precision-aligned flybarless/gyro sensor mount to provide a truly square setup for accurate control and unwanted interaction prevention. With an easy to install and high-CG placement of the front LiPo, the new upgrade provides unprecedented hard 3D flight characteristics without loss of stability for F3C competition and smooth flying.

Specifications

Material: Aluminum 6061-T6

Models: All ALIGN T-Rex 700N/800 E-Conversion series.

Includes:

  • One (1) T-Rex 700N/800 E-Conversion Series Aluminum Receiver Mount Upgrade
  • Eight (8) M2.5 x 0.45 x 14 mm Button Head Socket Head Cap Screws (Class 12.9)

Finish: Clear anodize, mirror-polish CNC gloss

Weight: 120 g (design is FEA optimized for maximum strength and minimum weight)
