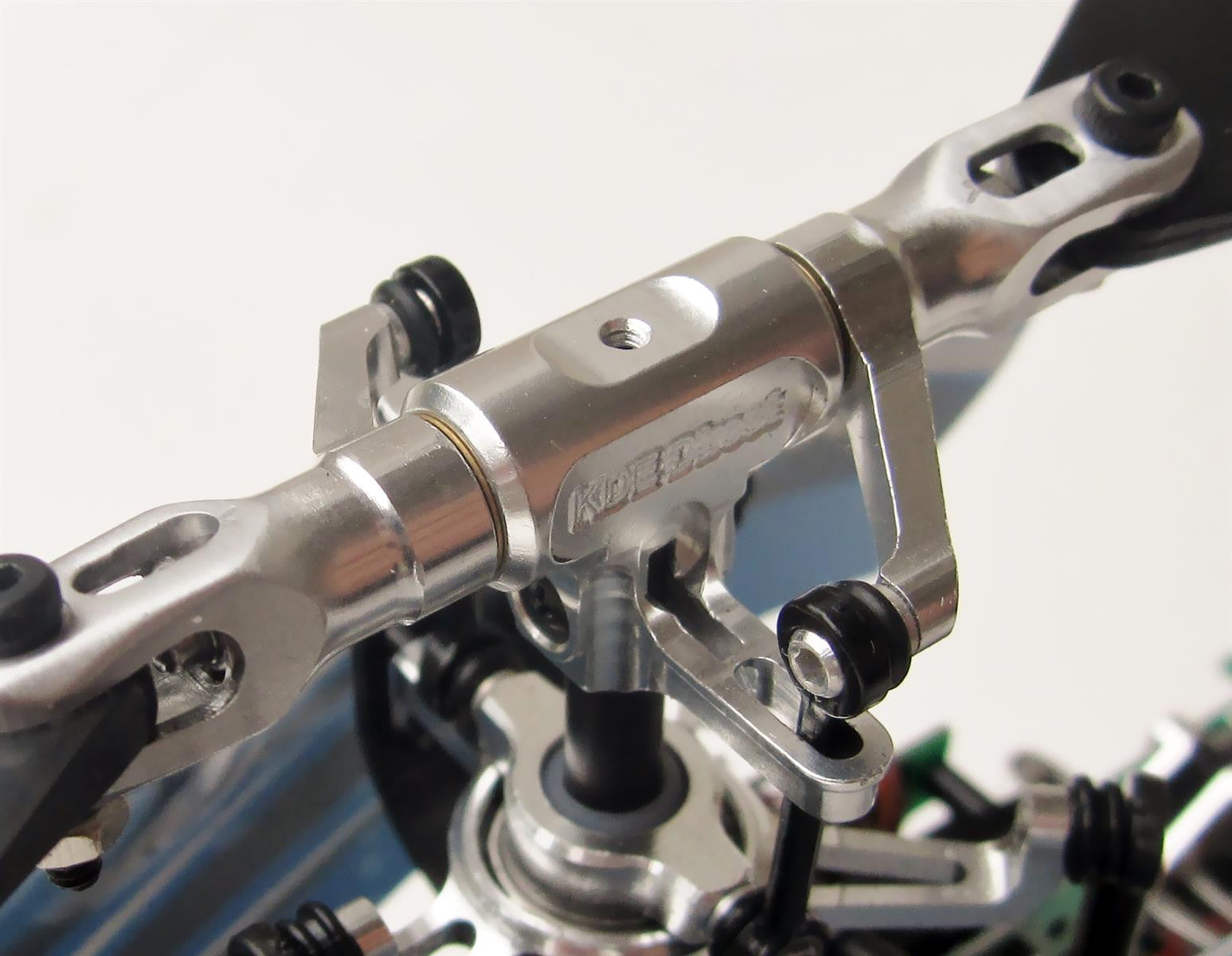

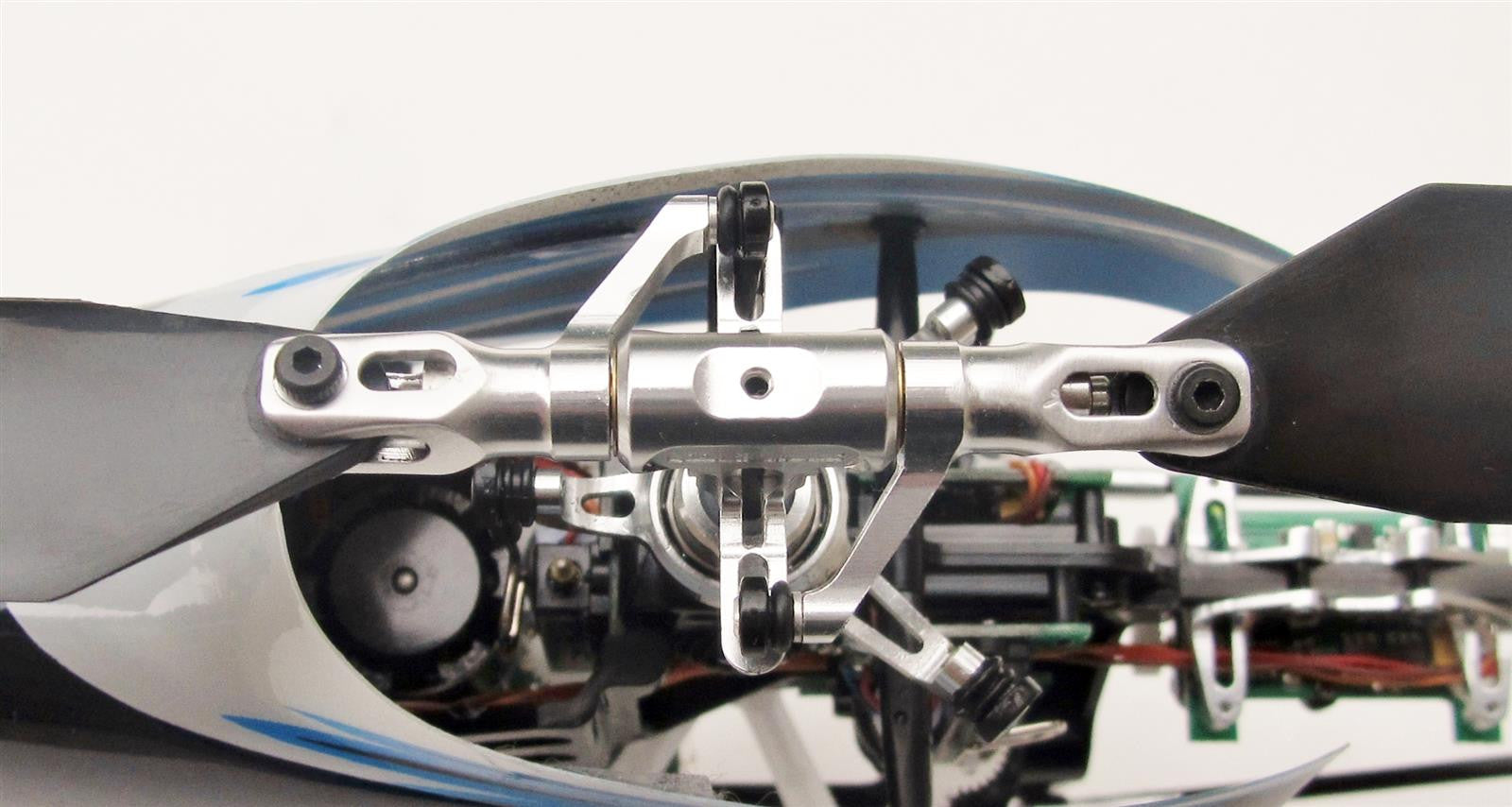

The Flybarless Main Rotor Housing upgrade encompasses the latest technologies for optimum setup of the flybarless mechanics. The new design incorporates a series of performance enhancements including a FEA-optimized design for unprecedented strength and light-weight characteristics; with the incorporation of the innovative clamping mechanism for accurate and crisp flight feel for all flying styles.

In addition, in the event of a crash, the Rotor Head Linkages (BLH3713) are typically contained in the pass-through phase-control geometry of the new rotor head, preventing the need for commonly lost components.

Material: Aluminum 6061-T6

Models: All E-Flite Blade 130X series helicopters (replaces stock part #BLH3711).

Includes:

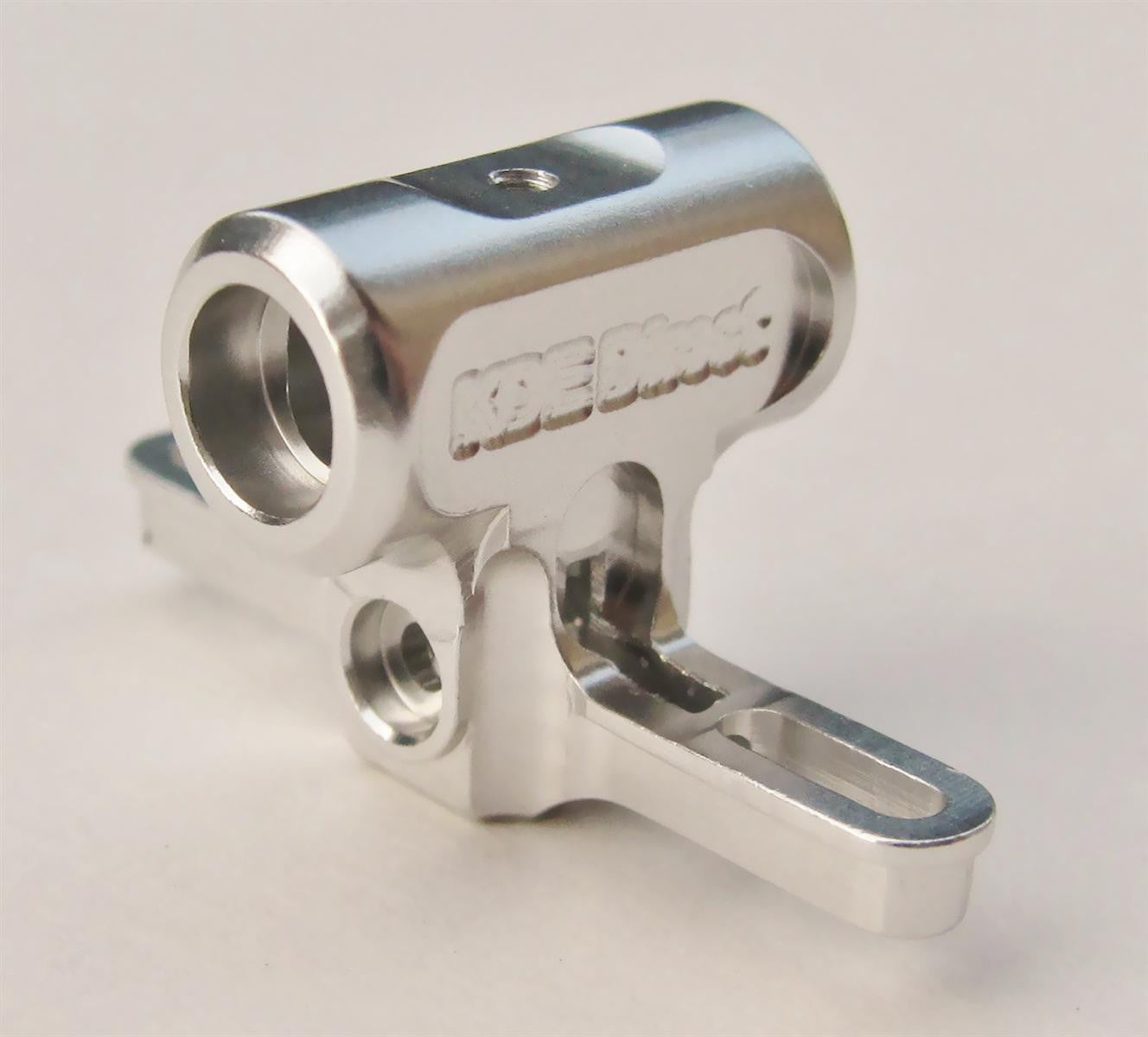

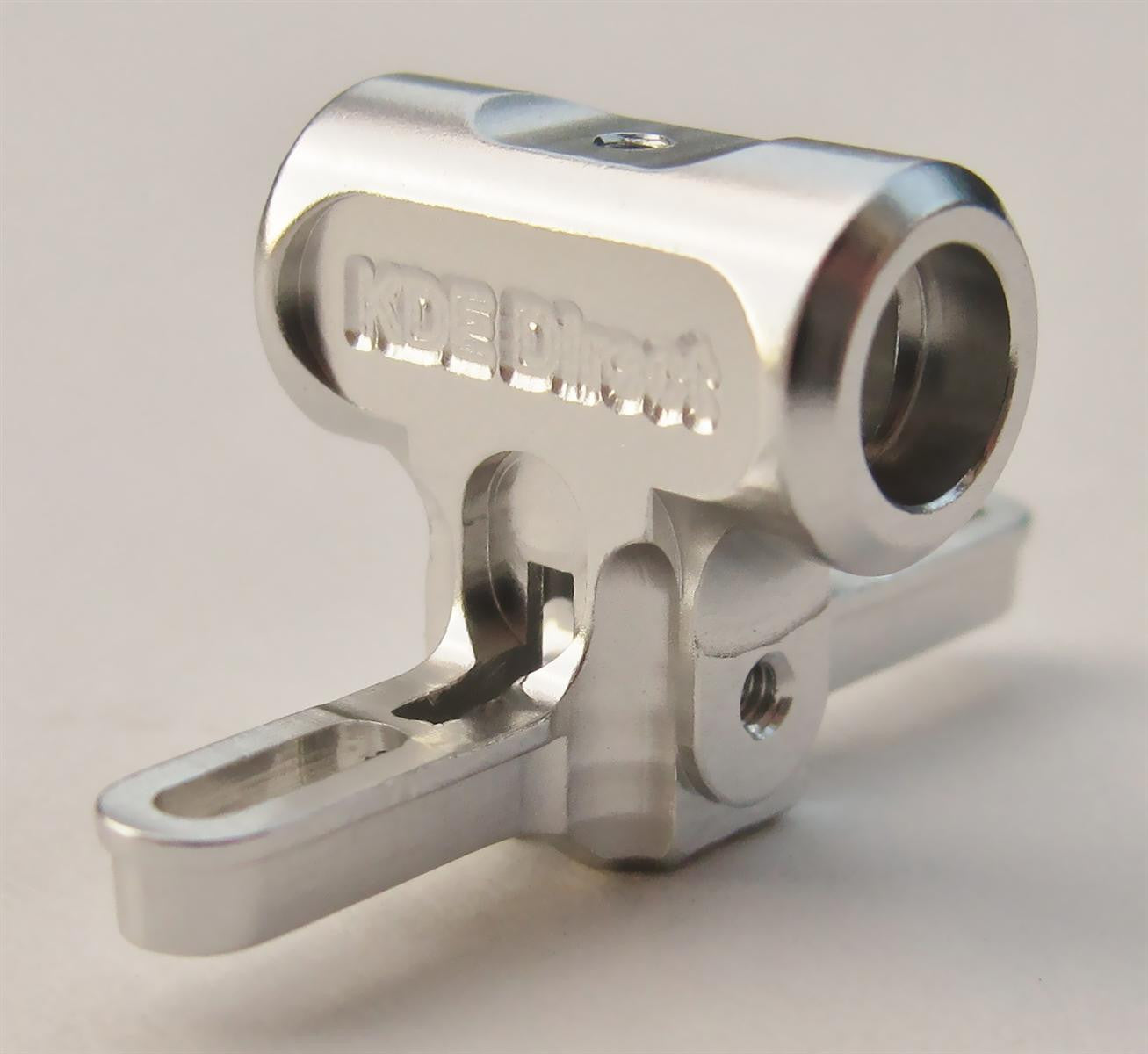

• One (1) BLADE 130X Series Aluminum Flybarless Main Rotor Housing
• One (1) #0-80 x 0.250" Pan Head Phillips Machine Screw (Class 12.9)

Finish: Clear anodize, mirror-polish CNC gloss

Weight: 1.9 g (design is FEA optimized for maximum strength and minimum weight)

• Installation Diagram (PDF)
• KDE Direct 130 XF Main Rotor Blade Series and Blade 130X Upgrades (YouTube)
