EB130X-TGC

Tail Gear Case (Quad-Bearing Edition) for E-Flite Blade 130 X Electric Series Helicopters

Product has been archived, and is no longer available for purchase. This page is for reference only.


ENGINEERING THE UNSEEN



Overview

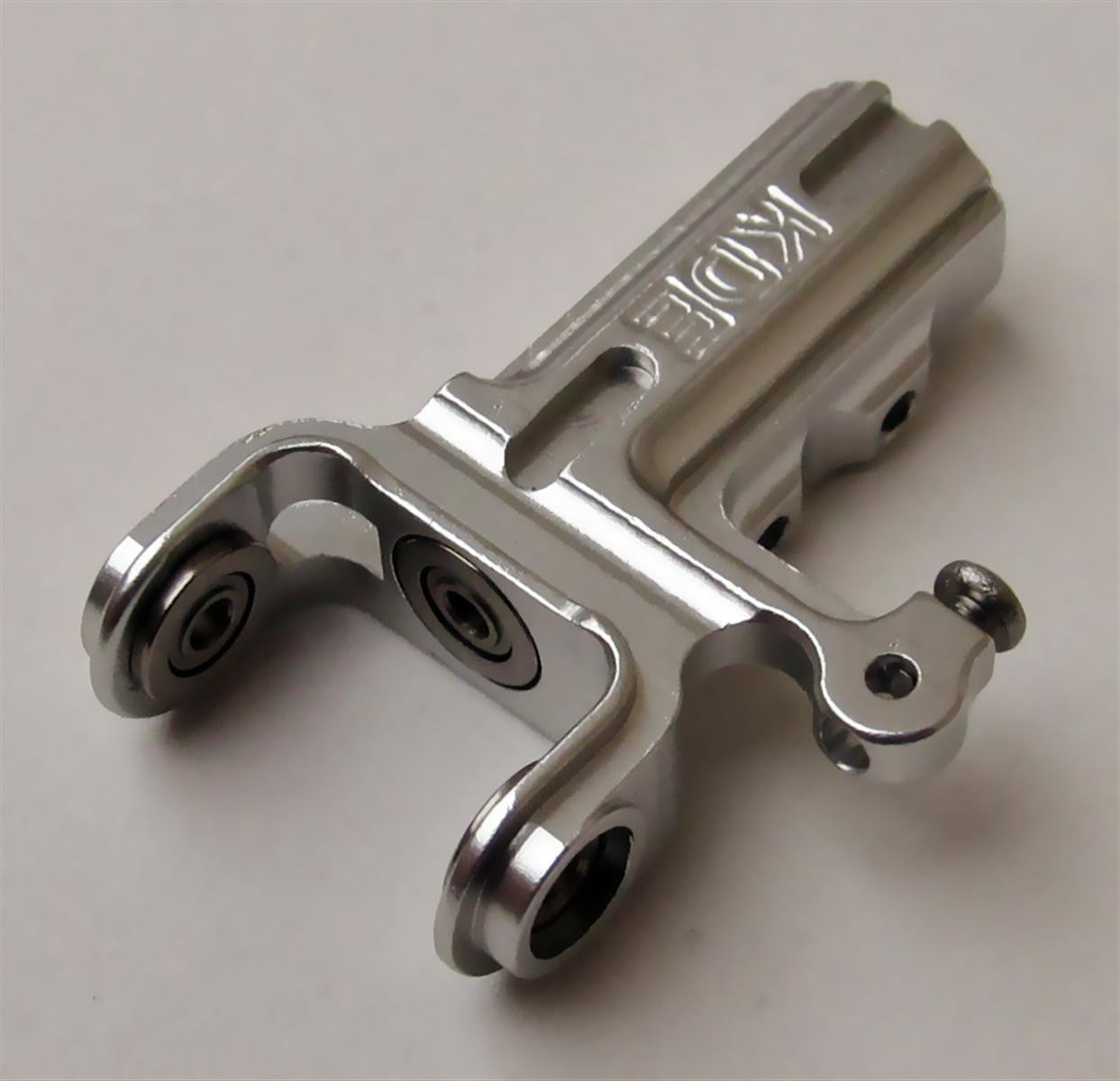

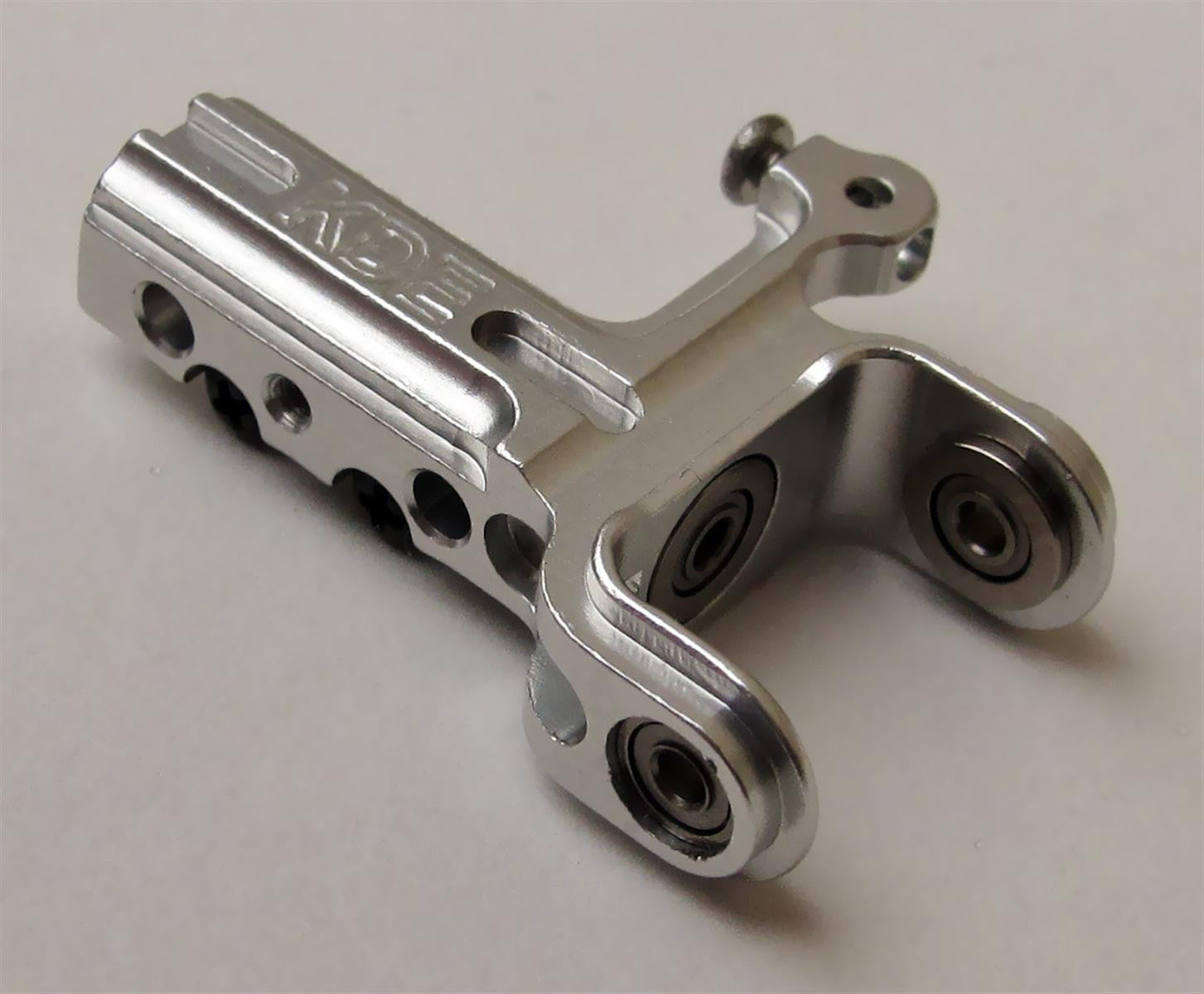

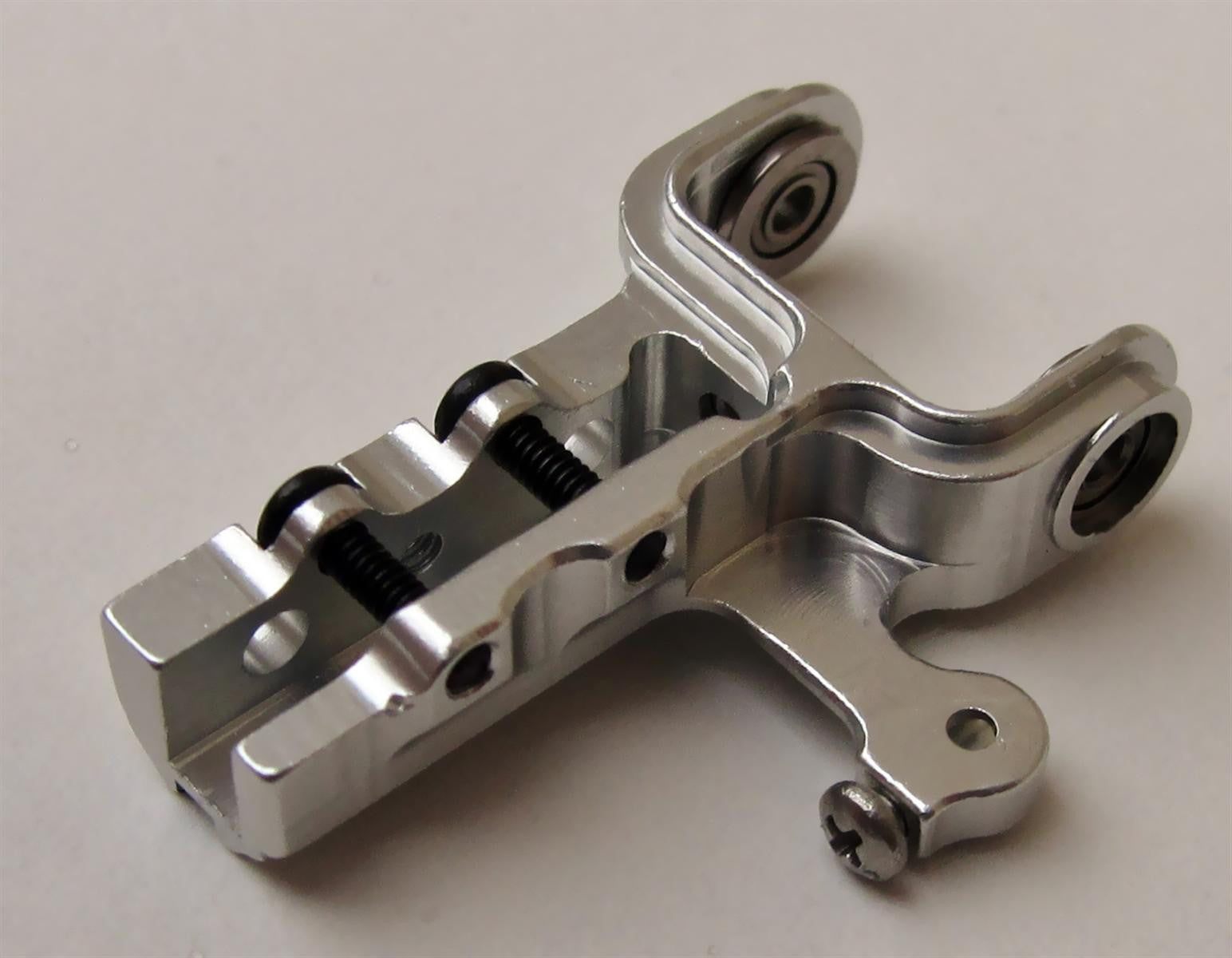

The Tail Gear Case upgrade encompasses the latest technologies for optimum setup of the tail control mechanics. The new design incorporates a series of performance enhancements including a FEA-optimized design for unprecedented strength and light-weight characteristics and high-quality radial ball bearings for accurate fit to the tail shaft and torque-tube, preventing unwanted vibrations or slop to the tail control system.

For added performance, additional bearings can be installed for a triple- or quad-bearing support to the tail shaft. Bearings are available in a pre-packaged kit (EB130X-TGCBRK) with the upgrade radial-ball bearings (681X) and replacement flanged radial-ball bearings (F681XZZ) for future maintenance, or sold separately in packages of two (2) under their corresponding sizes. Machined bearing pockets have been extended to provide additional support for the installation of the upgrade radial-ball bearings.

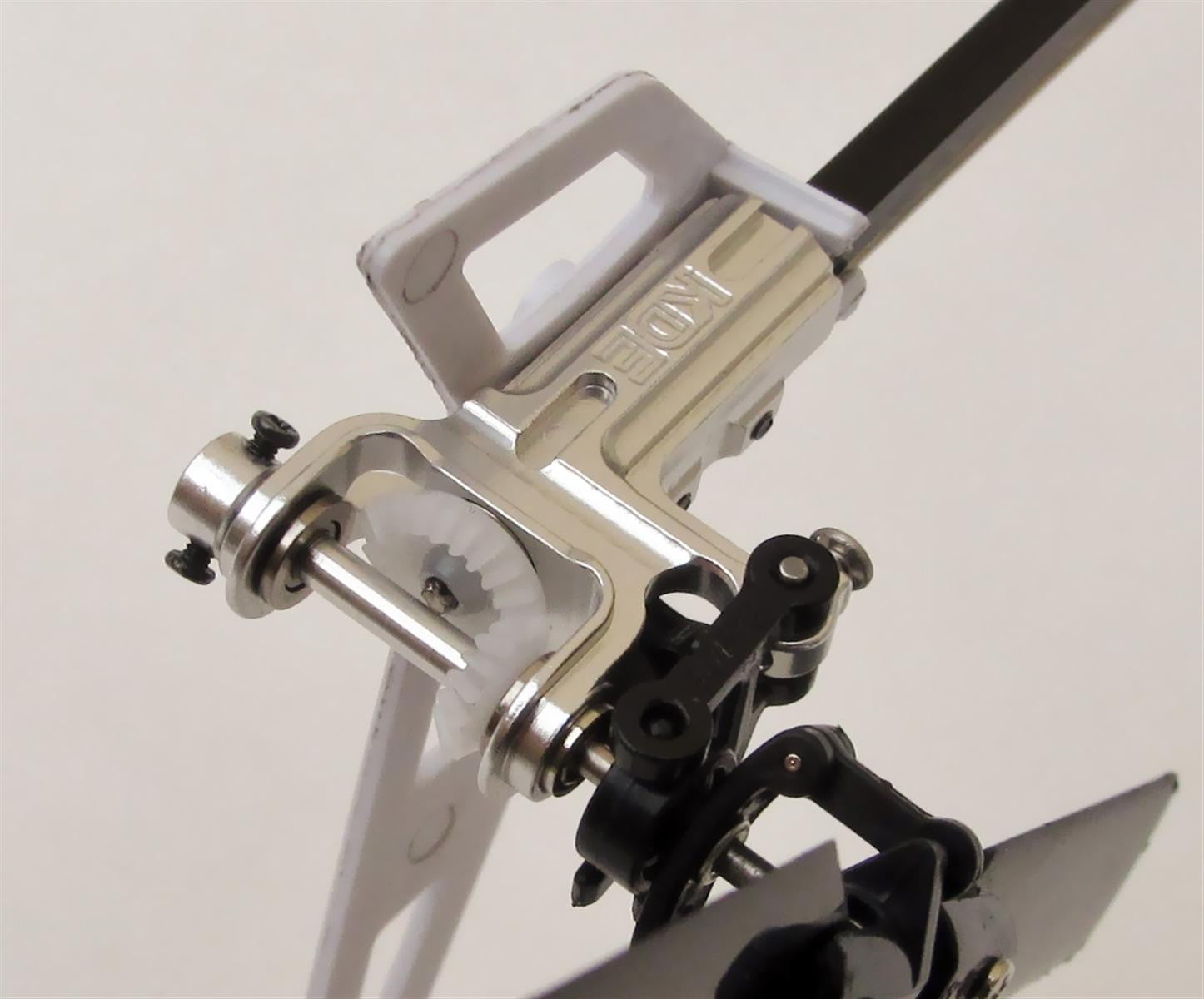

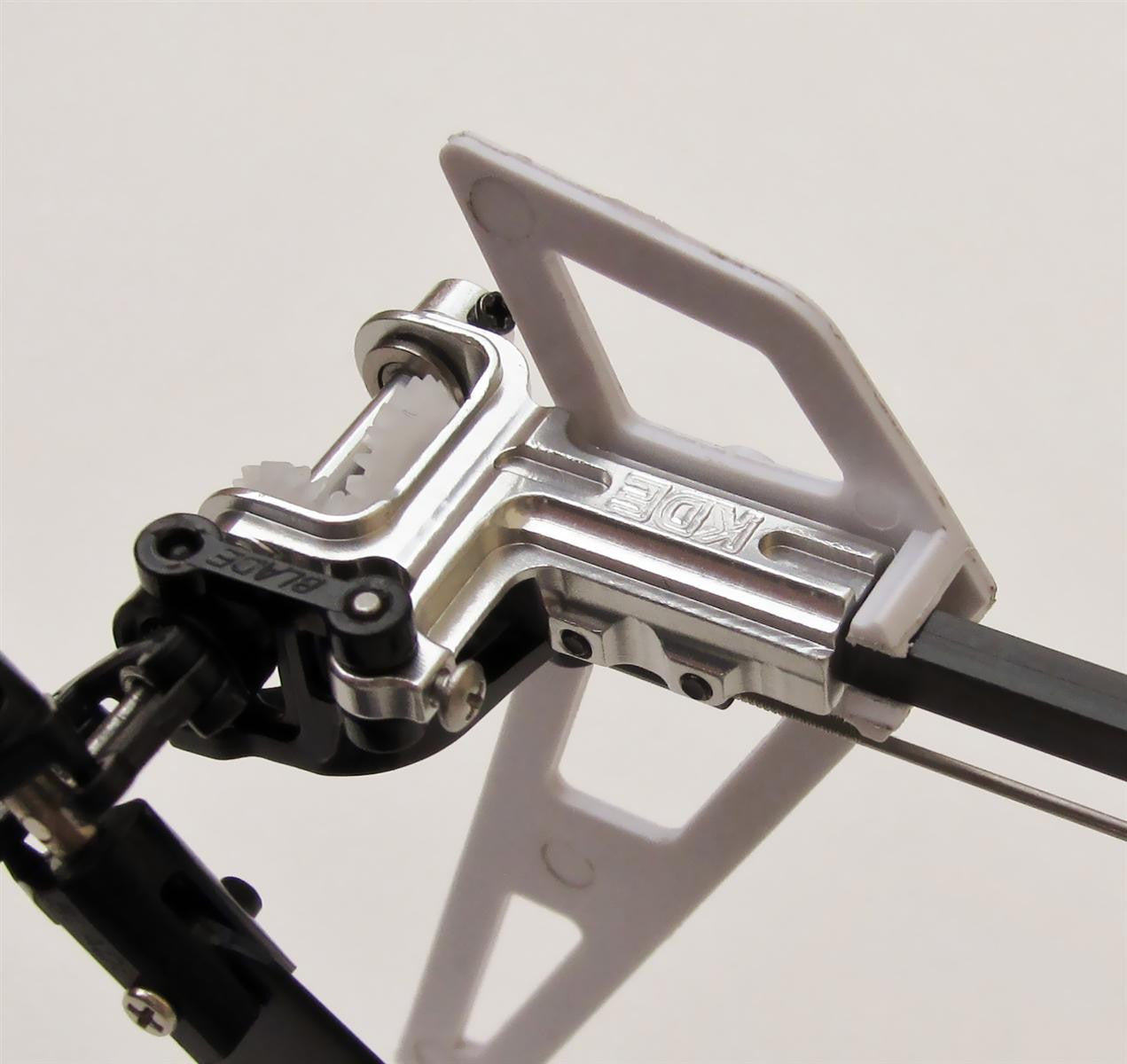

Important: The upgrade is a direct bolt-in design for the Blade 130 X series helicopters to enhance performance. To ensure proper operation, please review the Installation Diagram (PDF) for assembly details and tips during the install.

Specifications

Material: Aluminum 6061-T6

Models: All E-Flite Blade 130X Series Helicopters (replaces stock part #BLH3725).

Includes:

  • One (1) BLADE 130X Series Aluminum Tail Gear Case
  • Three (3) Flanged Radial Ball Bearings 1.5 x 4 x 2 mm
  • Two (2) #0-80 x 0.125" Pan Head Phillips Machine Screw (18-8 Stainless Steel)
  • Two (2) #0-80 x 0.250" Pan Head Phillips Machine Screw (18-8 Stainless Steel)

Finish: Clear anodize, mirror-polish CNC gloss

Weight: 1.6 g (design is FEA optimized for maximum strength and minimum weight)
