EB130X-TPS

Tail Pushrod Support for E-Flite Blade 130 X Electric Series Helicopters

Product has been archived, and is no longer available for purchase. This page is for reference only.


ENGINEERING THE UNSEEN



Overview

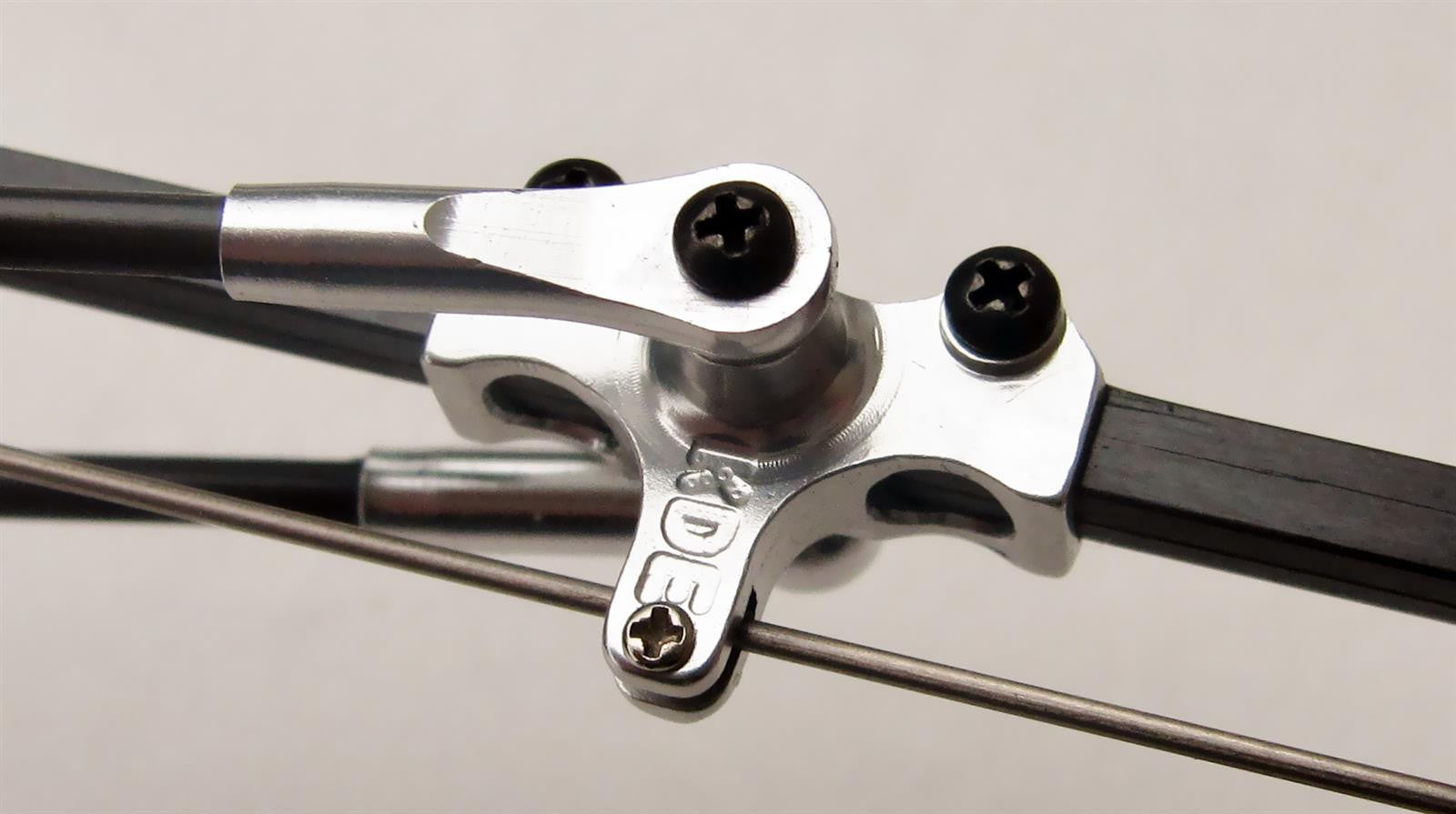

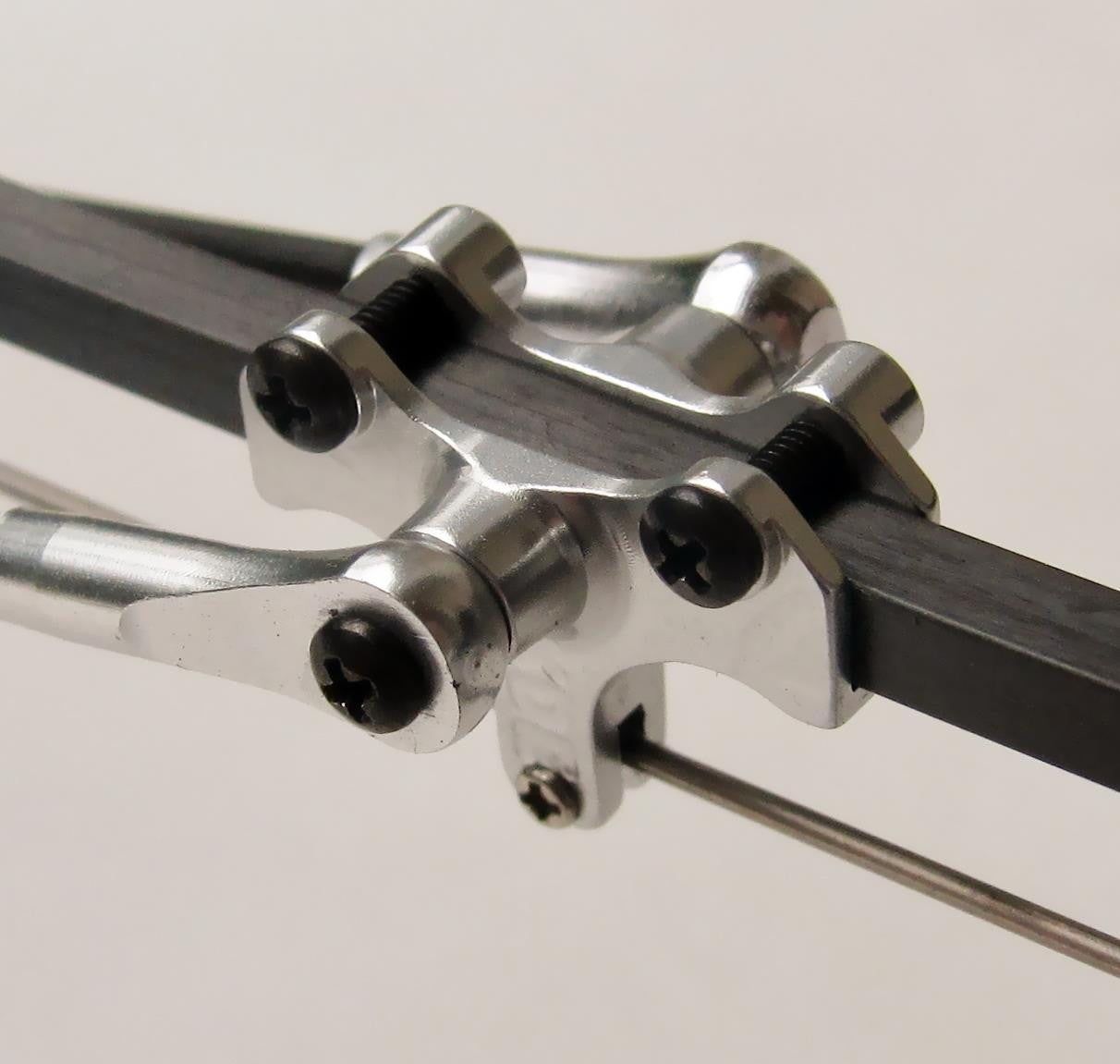

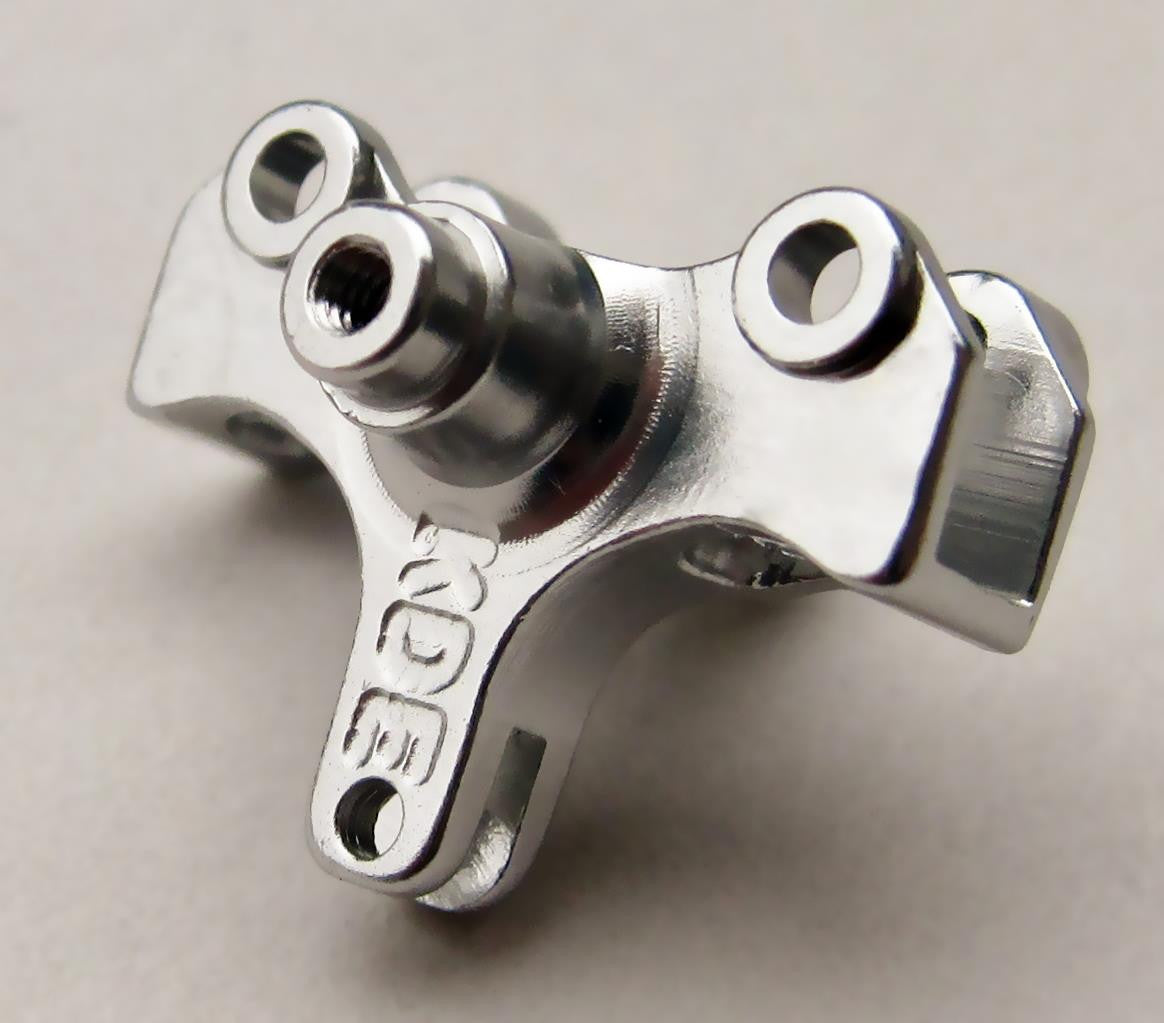

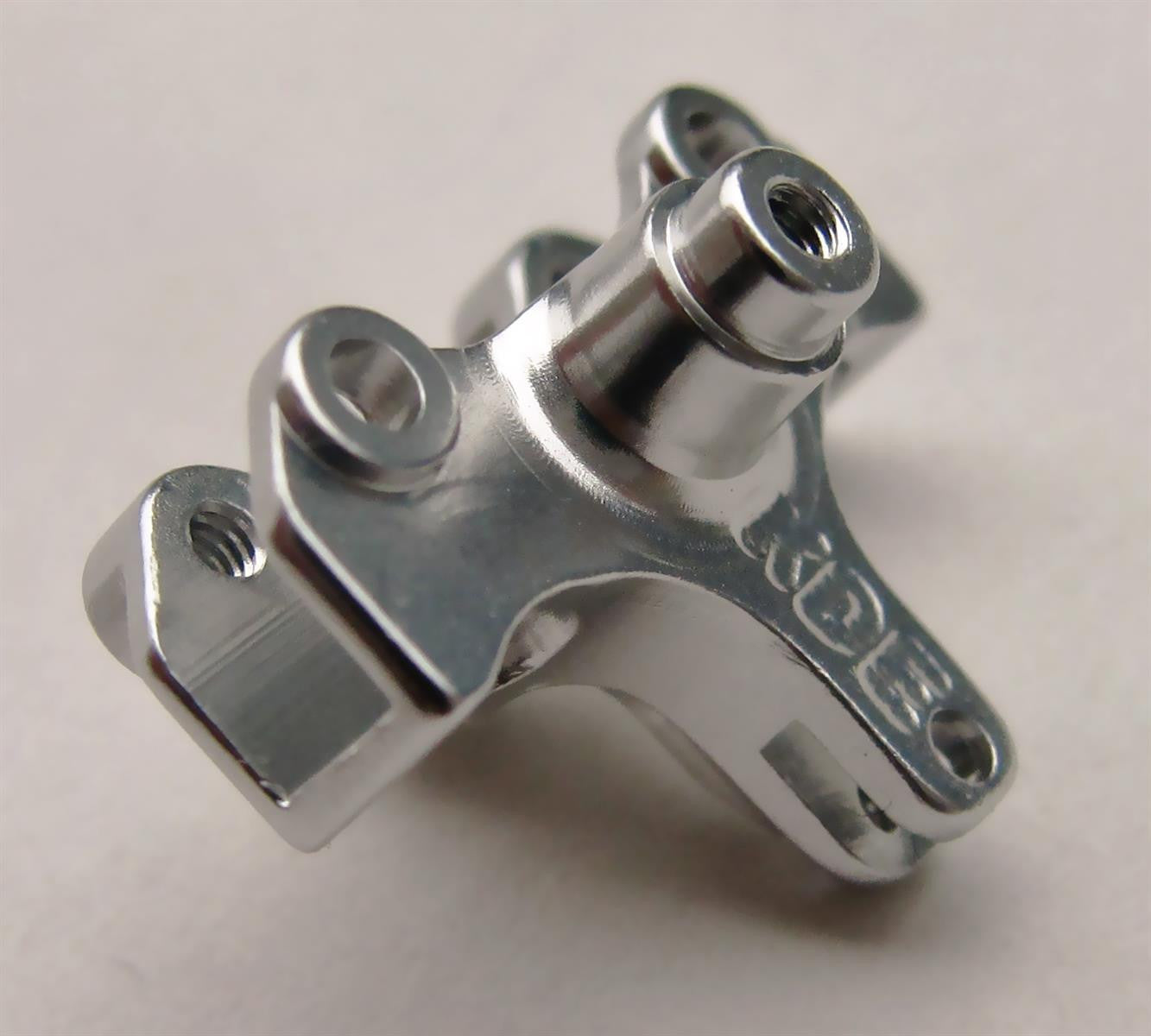

The Tail Pushrod Support upgrade provides an ultra-light weight aluminum mount for the Tail Boom Braces and the Tail Pushrod to significantly increase the strength and rigidity in this key area for tail authority and control. In addition, the design includes an innovative M1.2 screw feature to ease installation and removal of the Tail Pushrod - without snaps or other hardware prone to wearing out with repeated use.

Specifications

Material: Aluminum 6061-T6

Models: All E-Flite Blade 130X series helicopters (replaces stock part #BLH3721).

Includes:

  • One (1) BLADE 130X Series Aluminum Tail Pushrod Support
  • Four (4) #0-80 x 0.250" Pan Head Phillips Machine Screw (Class 12.9)
  • One (1) M1.2 x 0.25 x 4 mm Pan Head Phillips Machine Screw (Class 12.9)

Finish: Clear anodize, mirror-polish CNC gloss

Weight: 0.8 g (design is FEA optimized for maximum strength and minimum weight)
