EB450X-TBSA

Tail Boom Support Assembly for E-Flite Blade 450 Electric Series Helicopters

Product has been archived, and is no longer available for purchase. This page is for reference only.


ENGINEERING THE UNSEEN



Overview

The Tail Boom Support Assembly provides the E-Flite Blade 450 (3D/X) Series with the ultimate support for optimal tail control and authority. By utilizing high-grade materials, true 450-class boom supports, and a rock-solid hold to the tail boom with the precision CNC-machined Tail Mount, the upgrade assembly brings the Blade 450 series to the next-level of precision, hard-3D flight capabilities.

SAVE $0.95 when you purchase the Full Assembly!

Need the Tail Mount or Boom Supports Individually? The Tail Mount assembly is available and sold separately by selecting "Tail Mount Only" with the pull-down menu above.

Specifications

Material: Aluminum 6061-T6, Ultra-Strength Carbon Fiber Matrix (U.S.A. Produced)

Models: All E-Flite Blade 450 3D and 450 X Series Helicopters.

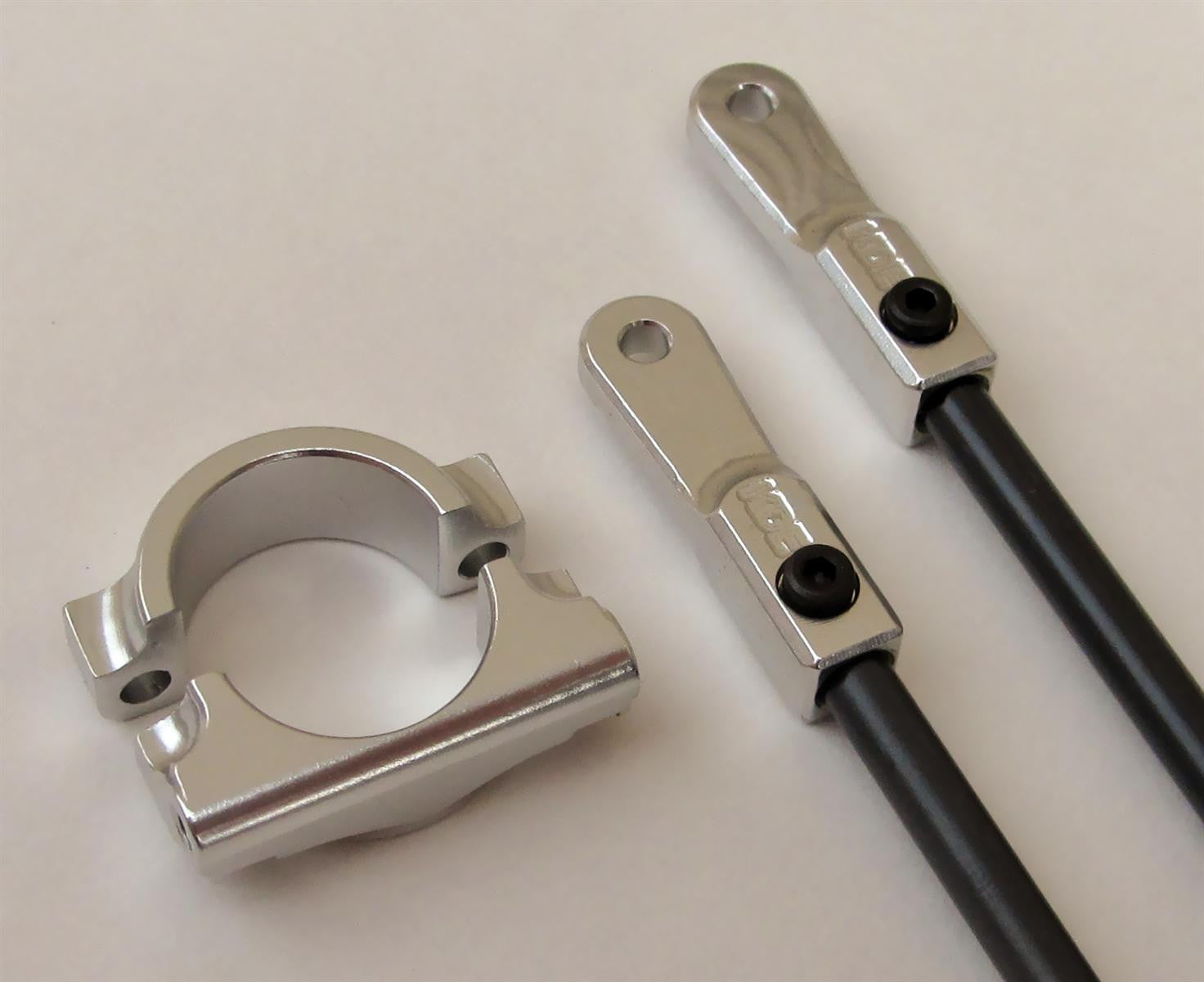

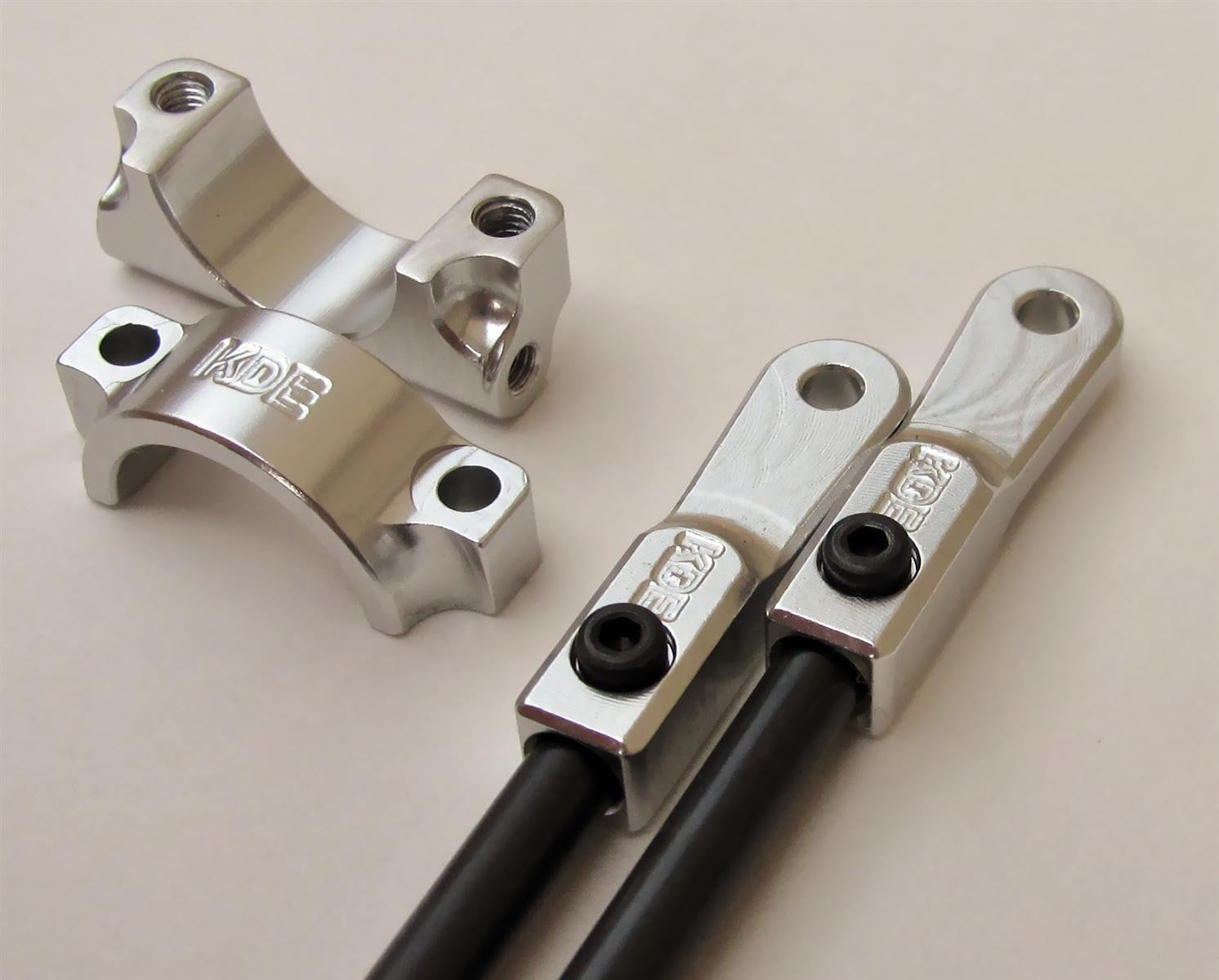

Includes:

  • One (1) E-Flite Blade 450 Series Aluminum Tail Mount Assembly, Upper
  • One (1) E-Flite Blade 450 Series Aluminum Tail Mount Assembly, Lower
  • Two (2) M2.5 x 0.45 x 8 mm Button Head Socket Head Cap Screws (Class 12.9)
  • Four (4) M2.5 x 0.45 x 10 mm Button Head Socket Head Cap Screws (Class 12.9)
  • Two (2) KDE Direct 450 Series Performance Boom Support Assembly

Finish: Clear anodize, mirror-polish CNC gloss

Weight:

  • Tail Mount Assembly: 3.5 g (design is FEA optimized for maximum strength and minimum weight)
  • Performance Boom Support: 6 g ea. (design is FEA optimized for maximum strength and minimum weight)
