KDE-TW6030
Propeller Blade Torque Wrench for Multi-Rotor (UAS) Series (6.0 in-lb, 3.0 mm)

  • $18.95

Overview

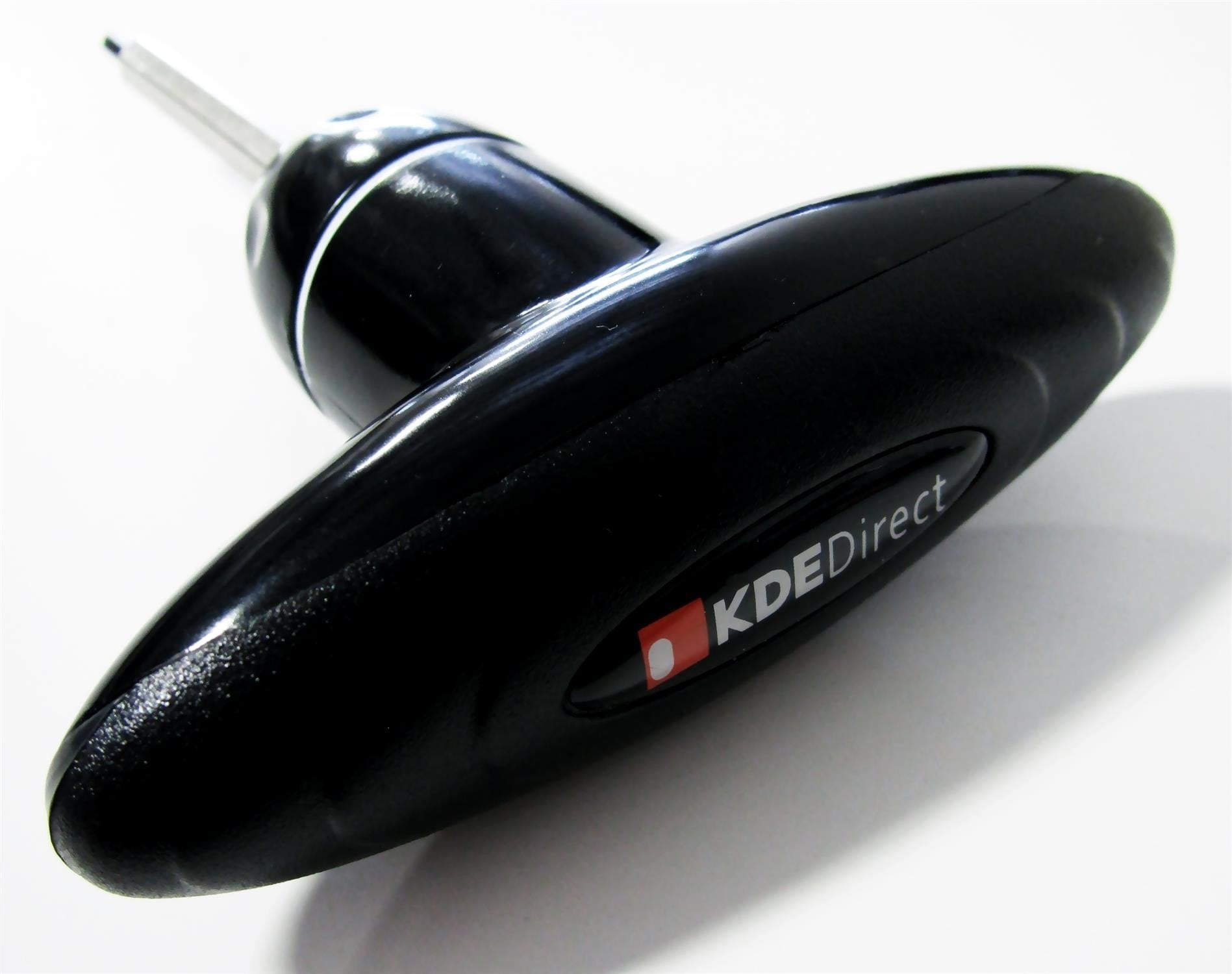

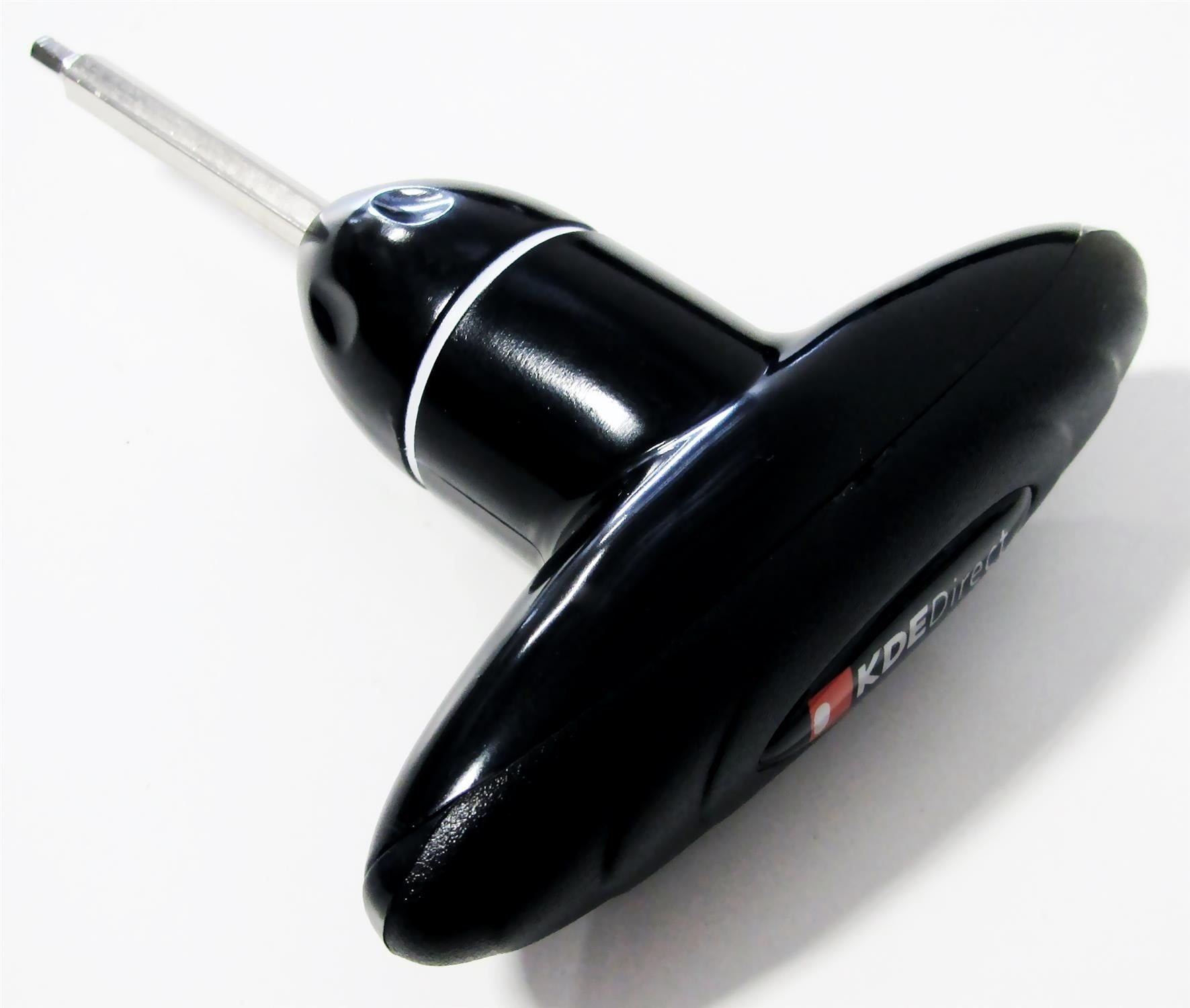

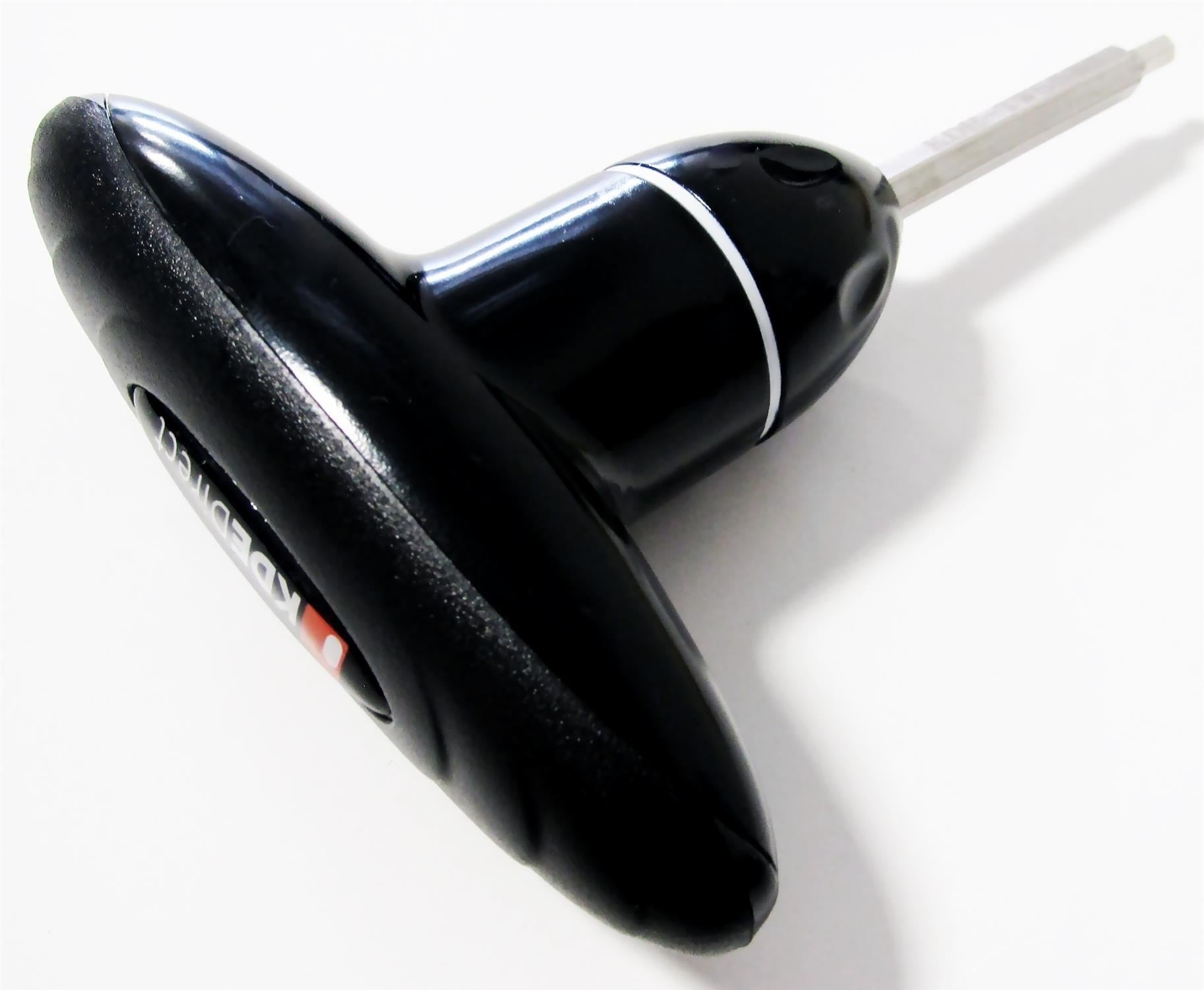

The new KDE Direct UAS Multi-Rotor Propeller Blade Torque Wrench provides a factory-calibrated, handheld torque-wrench for simple installation and periodic maintenance of the KDE Direct UAS Multi-Rotor Propeller Blade Adapter Series propeller mounting screws (C12.9 socket head shoulder cap screws).

Multiple torque and hex-key sized wrenches are available for direct compatibility with the KDE Direct UAS Multi-Rotor Propeller Blade Series (see Specifications and Technical Media tabs above for more details).

Specifications

Compatible Propeller Blade Series:

Compatible Propeller Blade Adapters:

Includes:

  • One (1) KDE Direct UAS Multi-Rotor Propeller Blade Torque Wrench (6.0 in-lb, 3.0 mm)

Full Specifications:

Torque (Fixed)* 6.0 in-lb
Torque (Fixed)* 96.0 oz-in
Torque (Fixed)* 0.68 N-m
Hex Key Size 3.0 mm
Socket Head Sizing M4

*: Torque allowance +/- 15%.

Propeller Blade Compatibility Chart

KDE-CF125 (12.5" x 4.3) Propeller Blades KDE-TW3025
KDE-CF155 (15.5" x 5.3) Propeller Blades KDE-TW3525
KDE-CF185 (18.5" x 6.3) Propeller Blades KDE-TW4025
KDE-CF215 (21.5" x 7.3) Propeller Blades KDE-TW4525
KDE-CF245 (24.5" x 8.1) Propeller Blades KDE-TW5030
KDE-CF275 (27.5" x 8.9) Propeller Blades KDE-TW5530
KDE-CF305 (30.5" x 9.7) Propeller Blades KDE-TW6030
