SG500/570-LGS (Pair)

Landing Gear Support for SAB Heli Division Goblin 500/570 Series Helicopters

Product has been archived, and is no longer available for purchase. This page is for reference only.


ENGINEERING THE UNSEEN



Overview

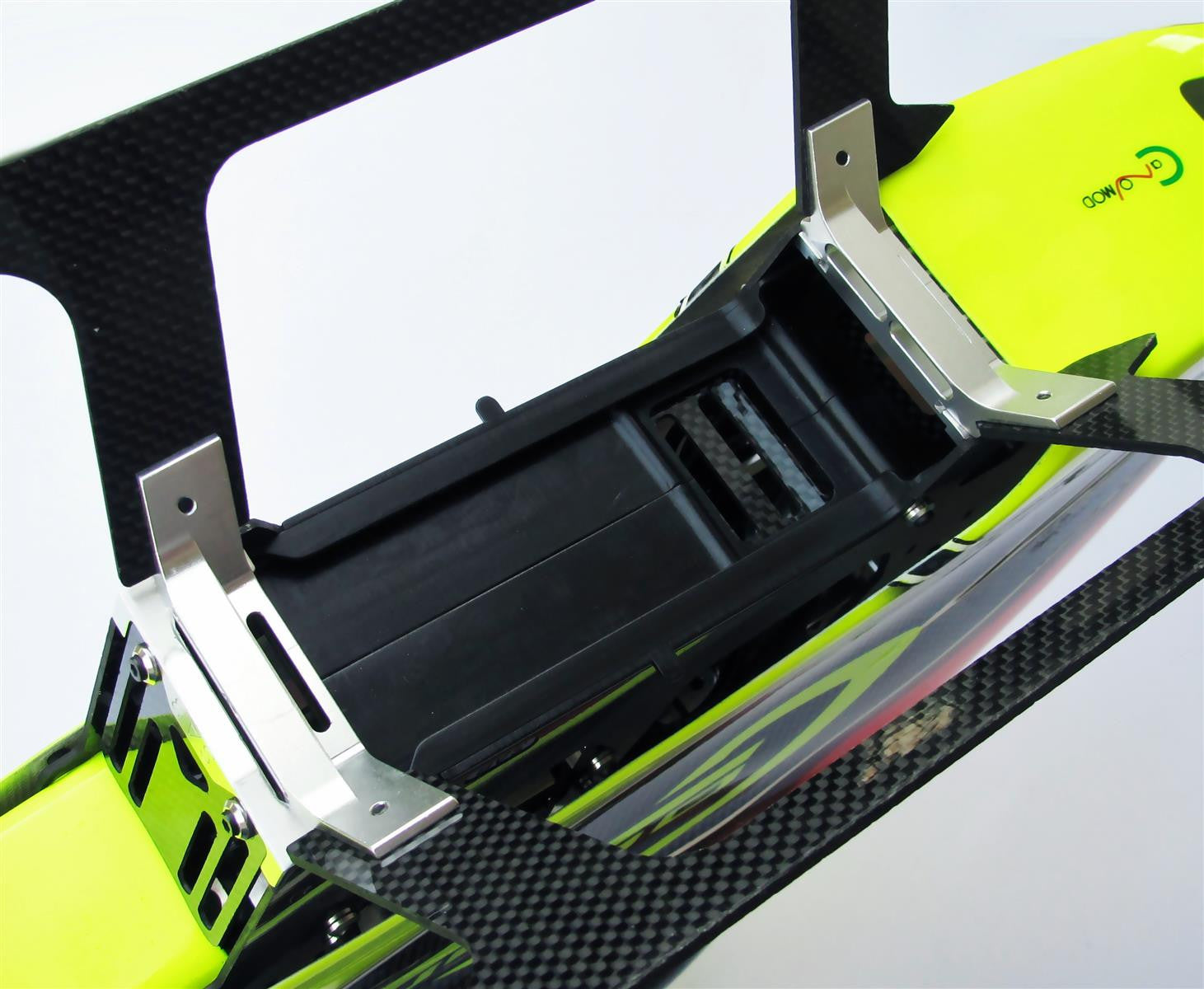

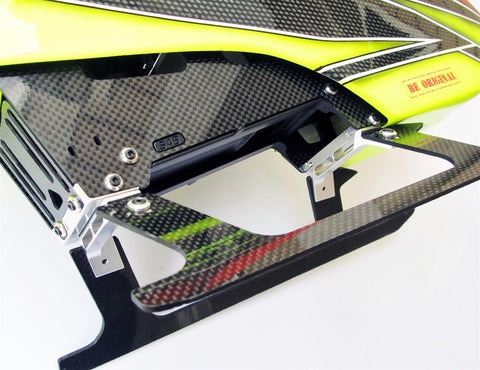

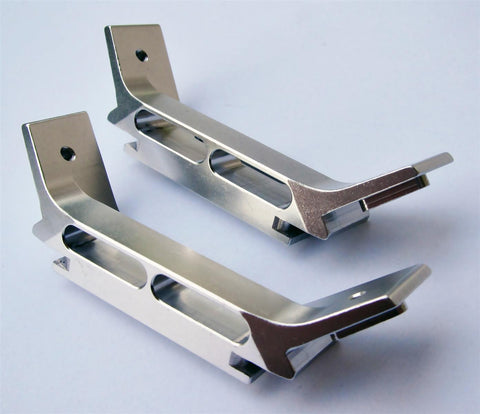

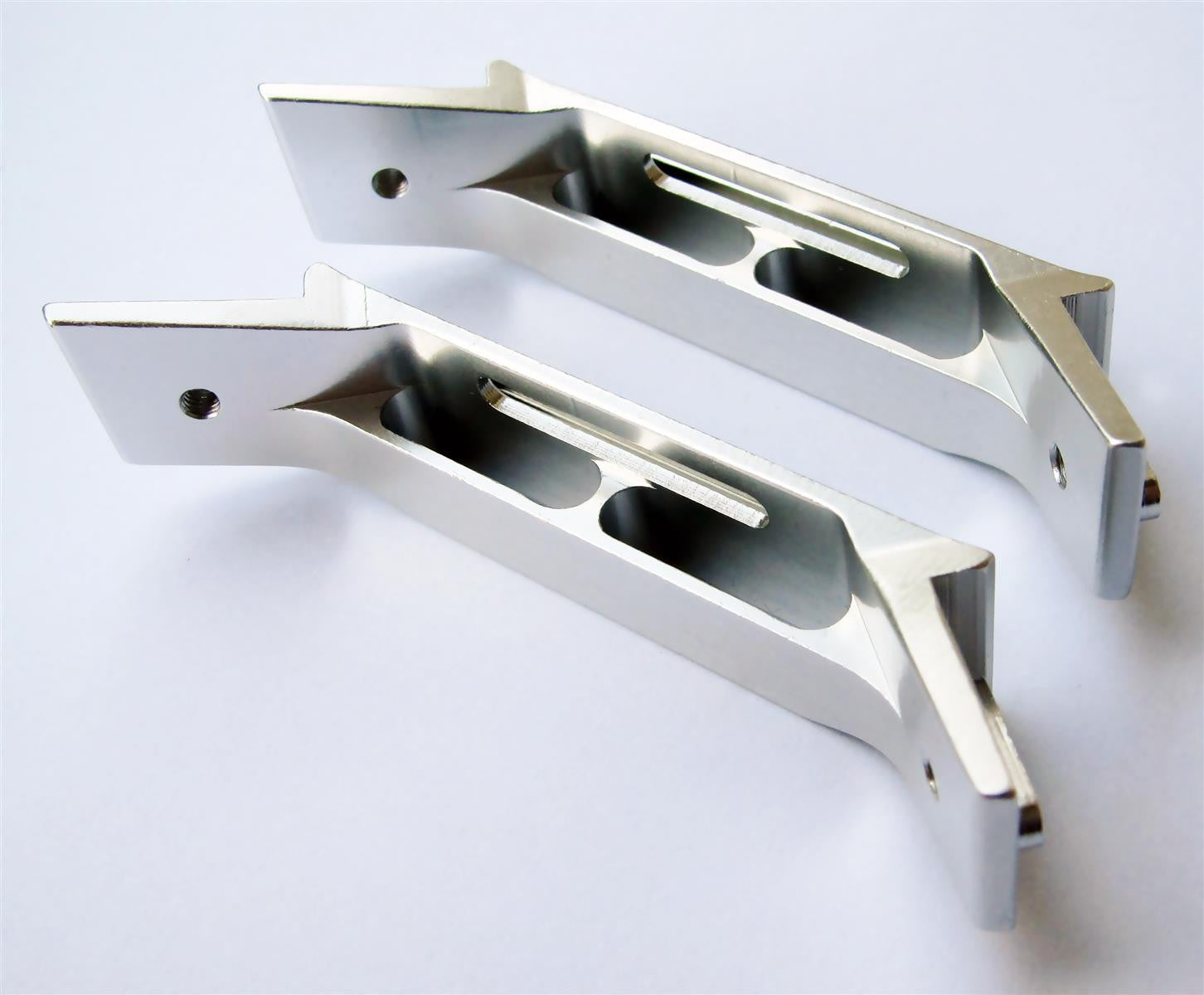

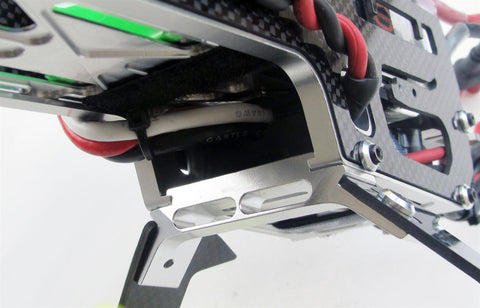

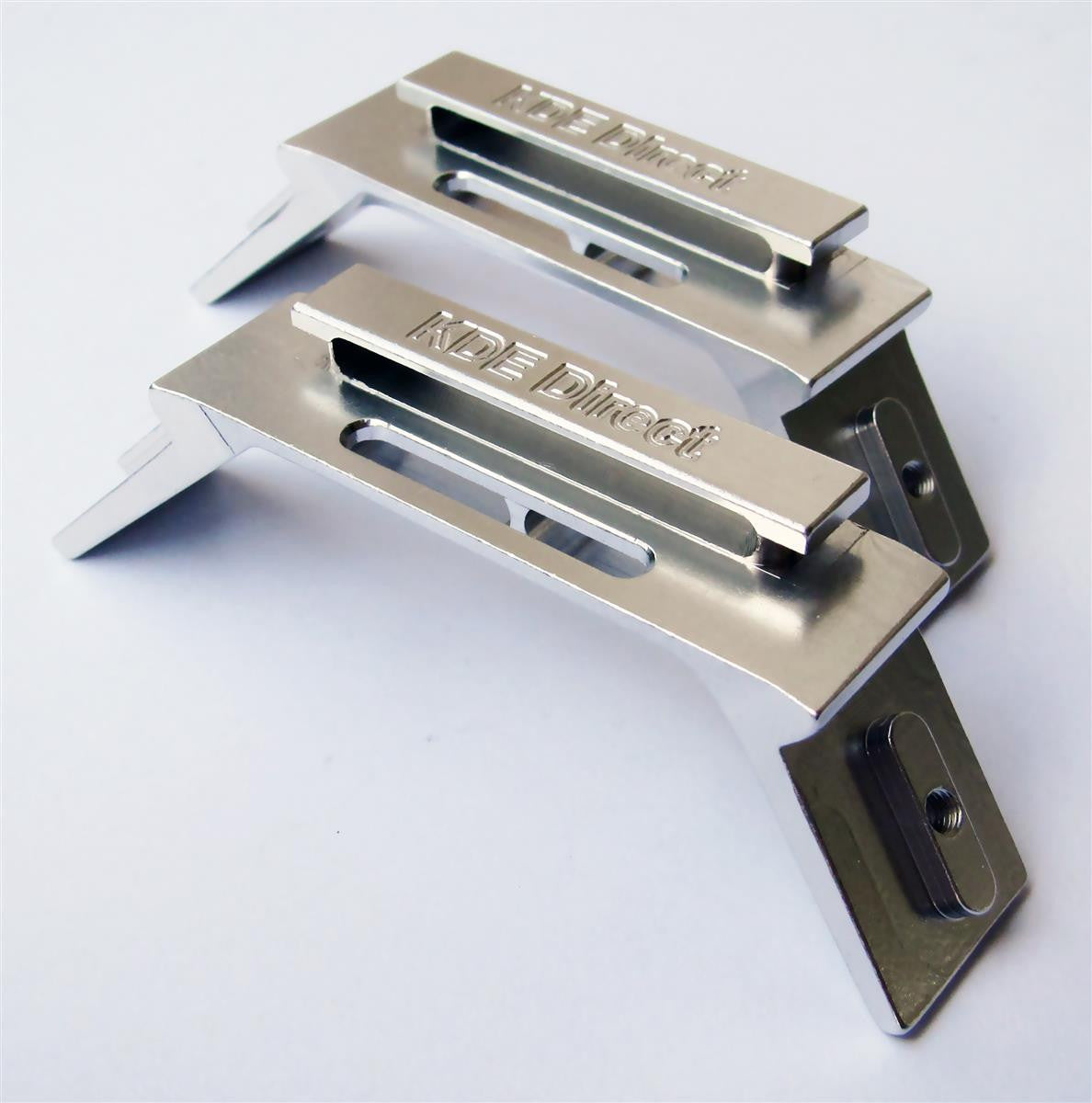

The Landing Gear Support provides a direct bolt-in upgrade for the SAB Heli Division Goblin 500/570 series helicopters, with a strengthened truss-frame design to prevent unwanted flexing and crash damage upon hard-landings and skid-bump maneuvers. The Landing Gear Support is compatible with the new SAB Goblin 570 series, and can be installed in conjunction with the SAB Goblin 500 series Carbon Fiber Landing Gear (H0241-S).

SAVE $1.95 when you purchase the Goblin 500/570 Landing Gear Supports as a pair!

Specifications

Material: Aluminum 6061-T6

Models: All SAB Heli Division Goblin 500 and 570 series.

Includes:

  • One (1) Goblin 500/570 Series Aluminum Landing Gear Support
  • Two (2) M3 x 0.5 x 6 mm Button Head Socket Head Cap Screws (Class 12.9)

Finish: Clear anodize, mirror-polish CNC gloss

Weight: 13 g (design is FEA optimized for maximum strength and minimum weight)
