KDE5215XF-330

Brushless Motor for Heavy-Lift Electric Multi-Rotor (UAS) Series
  • $245.00

ENGINEERING THE UNSEEN



Overview

Recommended ESC: KDE Direct UAS 75A+ HVC Multi-Rotor Series
Alternate ESC: KDE Direct UAS 85A+ UVC Multi-Rotor Series

Recommended Propeller: KDE Direct 18.5" x 6.3 Triple-Propeller Blades

Includes:

  • One (1) KDE Direct XF UAS Propeller Bracket Assembly (Black Edition)
  • One (1) KDE Direct XF UAS Propeller Bracket Adapter (ф4.0 x ф6.0 x 2.5mm)
  • Three (3) KDE Direct XF ф4.0mm 24K Bullet Connectors (KDEXF-BC40, Female)
  • Four (4) M5 x 0.8 x 8 mm Flat Head Phillips Head Machine Screws (Class 12.9)
  • Four (4) M4 x 0.7 x 8 mm Flat Head Phillips Head Machine Screws (Class 12.9)
  • Two (2) M3 x 0.5 x 10 mm Socket Head Cap Screws (Class 12.9)

Replacement Parts:

The new KDE Direct 5215XF-330 Multi-Rotor Brushless Motor is an extremely efficient and powerful motor for numerous multi-rotor and UAS heavy-lift applications, and was designed to bring high-quality and vibration-free motors to the market. The motors are designed with performance and durability in-mind, with features unseen in the current market: (1) high-grade, 240°C continuous (340°C maximum) high-temperature solid-core copper windings for failure-free operation in extreme-climates, (2) Japanese-built, 0.2 mm silicon-steel stator laminations and Kevlar tie-wraps for high-efficiency performance, and (3) triple-bearing supported, ABEC-7 bearings for maintenance-free and worry-free flying for hundreds of hours. These are just a few of the advantages built-in to these motors, and every detail of the motors was scrutinized to produce the absolute best available; for a wide-range of flight applications.

Motor includes 200°C, 15 AWG, 760mm silicone-wire leads and ф4.0mm 24K Bullet Connectors (KDEXF-BC40, pre-soldered to the motor leads and ESC matching Bullet Connectors).

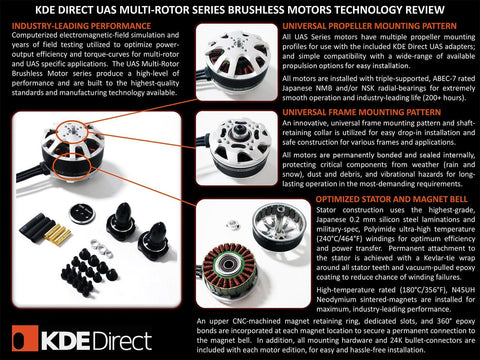

UAS Multi-Rotor Brushless Motor Series Technology Review (PDF)

Specifications

Material: Neodymium N38UH

Models: Universal mounting pattern provides simple installation for a wide-range of multi-rotor and UAS applications: M3 x ф30mm, M4 x ф30mm, M5 x ф40mm.

Finish:

  • Clear anodize, mirror-polish CNC gloss endbells
  • Black electro-plate, CNC gloss central core (flux ring)

Compatible With:

Full Specifications:

Kv (Motor Velocity Constant) 330 RPM/V
Kt (Motor Torque Constant) 0.0289 Nm/A
Km (Motor Constant) 0.1380 Nm/√(W)
Maximum Continuous Current* 62 A (180 s)
Maximum Continuous Power* 1835 W (180 s)
Voltage Range 14.8 V (4S LiPo) - 34.8 V (8S LiHV)
Io (@10V) 0.7 A
Rm (Wind Resistance) 0.044 Ω
Stator Poles 24 (24S22P)
Magnetic Poles 22 (24S22P)
Bearings Triple, 698-2RS/608-2RS
Mount Pattern M4/3 x ф30 mm, M5 x ф40 mm
Stator Class 5215, 0.2 mm Japanese
Shaft Diameter ф4 mm (ф8 mm Internal)
Shaft Length 5.5 mm
Motor Diameter ф60 mm
Motor Rotor Inertia 0.631 kg*cm^2
Motor Length 41 mm
Motor Weight 305 g (360 g with Wires/Bullets)
Propeller Blade Size Up to 21.5"-TP (18.5"-TP Maximum on 8S)
Motor Advance Timing 22° - 30°
Motor Drive Frequency 16 - 32 kHz

*: Brushless motor requires consistent open airflow (5 mph or greater) across the windings to maintain maximum continuous current and power ratings during operation. Performance figures are provided as guidelines for normal conditions and operation; environmental factors, such as air temperature and humidity, can significantly alter the maximum performance limits of the motor.

Performance Data

Compatible Configurations

Voltage Propeller Compatible ESCs
4S 18.5" x 6.3 DOUBLE-EDN (KDE) 35A
55A
75A
85A
95A
125A
18.5" x 6.3 TRIPLE-EDN (KDE) 35A
55A
75A
85A
95A
125A
21.5" x 7.3 DOUBLE-EDN (KDE) 55A
75A
85A
95A
125A
21.5" x 7.3 TRIPLE-EDN (KDE) 55A
75A
85A
95A
125A
6S 15.5" x 5.3 DOUBLE-EDN (KDE) 35A
55A
75A
85A
95A
125A
15.5" x 5.3 TRIPLE-EDN (KDE) 35A
55A
75A
85A
95A
125A
18.5" x 6.3 DOUBLE-EDN (KDE) 55A
75A
85A
95A
125A
18.5" x 6.3 TRIPLE-EDN (KDE) 55A
75A
85A
95A
125A
21.5" x 7.3 DOUBLE-EDN (KDE) 75A
85A
95A
125A
8S 15.5" x 5.3 DOUBLE-EDN (KDE) 35A
55A
75A
85A
95A
125A
15.5" x 5.3 TRIPLE-EDN (KDE) 55A
75A
85A
95A
125A
18.5" x 6.3 DOUBLE-EDN (KDE) 75A
85A
95A
125A
18.5" x 6.3 TRIPLE-EDN (KDE) 75A
85A
95A
125A

Manuals & Models

Manuals


Models

*Files are compressed as .rar files to decrease space & increase download speed.
To decompress the files, any reputable unarchiver will work such as WinRAR, 7-Zip, PeaZip, etc.
