KDE4012XF-400
Brushless Motor for Heavy-Lift Electric Multi-Rotor (sUAS) Series

(Patent Pending)
  • $114.95

Overview

Recommended ESC: KDE Direct UAS 35A+ HVC Multi-Rotor Series
Alternate ESC: KDE Direct UAS 55A+ Multi-Rotor Series

Recommended Propeller: KDE Direct 15.5" x 5.3 Triple-Propeller Blades

New production version includes laser-etch serialization (unique ID) and an active-centrifugal fan for improved cooling and sustained performance.

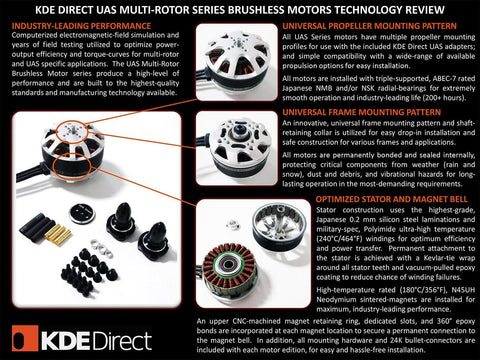

The new KDE Direct 4012XF-400 (D5) Multi-Rotor Brushless Motor is an extremely efficient and powerful motor for numerous multi-rotor and sUAS heavy-lift applications, and was designed to bring high-quality and vibration-free motors to the market. The motors are designed with performance and durability in-mind, with features unseen in the current market: (1) high-grade, 240°C continuous (340°C maximum) high-temperature solid-core copper windings for failure-free operation in extreme-climates, (2) Japanese-built, 0.2 mm silicon-steel stator laminations and Kevlar tie-wraps for high-efficiency performance, and (3) triple-bearing supported, ABEC-7 bearings for maintenance-free and worry-free flying for hundreds of hours. These are just a few of the advantages built-in to these motors, and every detail of the motors was scrutinized to produce the absolute best available; for a wide-range of flight applications.

Motor includes 200°C, 15 AWG, 760mm silicone-wire leads and ф3.5mm 24K Bullet Connectors (KDEXF-BC35pre-soldered to the motor leads and ESC matching Bullet Connectors).

Specifications

Material: Neodymium N45UH, 400Kv

Models: Universal mounting pattern provides simple installation for a wide-range of multi-rotor and sUAS applications: M3 x ф25mm, M4 x ф25mm, M3 x ф32mm, M2.5 x ф32mm.

Includes:

  • One (1) KDE Direct XF UAS M6-RH Propeller Adapter Assembly (KDEXF-PA620-RH)
  • One (1) KDE Direct XF UAS M6/M8 Propeller Adapter Collar (35XX/40XX/42XX Edition)
  • One (1) KDE Direct XF UAS Motor Adapter Plate Assembly (35XX/40XX/42XX Black Edition)
  • One (1) KDE Direct XF UAS Propeller Bracket Assembly (Black Edition)
  • One (1) KDE Direct XF UAS Propeller Bracket Adapter (ф4.0 x ф6.0 x 2.5mm)
  • Three (3) KDE Direct XF ф3.5mm 24K Bullet Connectors (KDEXF-BC35, Female)
  • Four (4) M4 x 0.7 x 8 mm Flat Head Phillips Head Machine Screws (Class 12.9)
  • Two (2) M3 x 0.5 x 10 mm Socket Head Cap Screws (Class 12.9)
  • Four (4) M3 x 0.5 x 8 mm Socket Head Cap Screws (Class 12.9)

Finish:

  • Clear anodize, mirror-polish CNC gloss endbells
  • Black electro-plate, CNC gloss central core (flux ring)

Full Specifications:

Kv (Motor Velocity Constant) 400 RPM/V
Kt (Motor Torque Constant) 0.0239 Nm/A
Km (Motor Constant) 0.0844 Nm/√(W)
Maximum Continuous Current* 32+ A (180 s)
Maximum Continuous Power* 945+ W (180 s)
Maximum Efficiency > 91%
Voltage Range 14.8 V (4S LiPo) - 34.8 V (8S LiHV)
Io (@10V) 0.5 A
Rm (Wind Resistance) 0.080 Ω
Stator Poles 18 (18S24P)
Magnetic Poles 24 (18S24P)
Bearings Triple, 685ZZ/625ZZ
Mount Pattern M4/3 x ф25 mm, M3/2.5 x ф32 mm
Stator Class 4012, 0.2 mm Japanese
Shaft Diameter ф4 mm (ф5 mm Internal)
Shaft Length 5.5 mm
Motor Diameter ф46.5 mm
Motor Length 30 mm
Motor Weight 145 g (200 g with Wires/Bullets)
Propeller Blade Size Up to 18.5"-TP (15.5"-DP Maximum on 8S)
Motor Timing 22° - 30°
ESC PWM Rate 16 - 32 kHz (600 Hz)

*: Brushless motor requires consistent open airflow (5 mph or greater) across the windings to maintain maximum continuous current and power ratings during operation. Performance figures are provided as guidelines for normal conditions and operation; environmental factors, such as air temperature and humidity, can significantly alter the maximum performance limits of the motor.
