KDE5215XF-435
Brushless Motor for Heavy-Lift Electric Multi-Rotor (UAS) Series

(Patent Pending)
  • $194.95

Overview

Recommended ESC: KDE Direct UAS 95A+ HVC Multi-Rotor Series
Alternate ESC: KDE Direct UAS 75A+ HVC Multi-Rotor Series

    Recommended Propeller: KDE Direct 18.5" x 6.3 Dual-Propeller Blades

    New production version includes laser-etch serialization (unique ID) and an active-centrifugal fan for improved cooling and sustained performance.

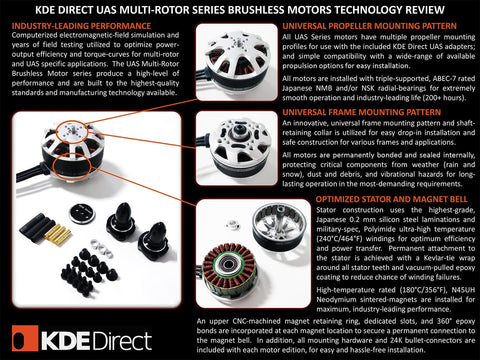

    The new KDE Direct 5215XF-435 Multi-Rotor Brushless Motor is an extremely efficient and powerful motor for numerous multi-rotor and UAS heavy-lift applications, and was designed to bring high-quality and vibration-free motors to the market. The motors are designed with performance and durability in-mind, with features unseen in the current market: (1) high-grade, 240°C continuous (340°C maximum) high-temperature solid-core copper windings for failure-free operation in extreme-climates, (2) Japanese-built, 0.2 mm silicon-steel stator laminations and Kevlar tie-wraps for high-efficiency performance, and (3) triple-bearing supported, ABEC-7 bearings for maintenance-free and worry-free flying for hundreds of hours. These are just a few of the advantages built-in to these motors, and every detail of the motors was scrutinized to produce the absolute best available; for a wide-range of flight applications.

    Motor includes 200°C, 15 AWG, 760mm silicone-wire leads and ф4.0mm 24K Bullet Connectors (KDEXF-BC40, pre-soldered to the motor leads and ESC matching Bullet Connectors).

    Specifications

    Material: Neodymium N45UH, 435Kv

    Models: Universal mounting pattern provides simple installation for a wide-range of multi-rotor and UAS applications: M3 x ф30mm, M4 x ф30mm, M5 x ф40mm.

    Includes:

    • One (1) KDE Direct XF UAS M6-RH Propeller Adapter Assembly (KDEXF-PA620-RH)
    • One (1) KDE Direct XF UAS M6-LH Propeller Adapter Assembly (KDEXF-PA620-LH)
    • Two (2) KDE Direct XF UAS M8 Propeller Adapters (ф6.0 x ф8.0 x 3.0mm)
    • One (1) KDE Direct XF UAS Propeller Bracket Assembly (Black Edition)
    • One (1) KDE Direct XF UAS Propeller Bracket Adapter (ф4.0 x ф6.0 x 2.5mm)
    • Three (3) KDE Direct XF ф4.0mm 24K Bullet Connectors (KDEXF-BC40, Female)
    • Four (4) M5 x 0.8 x 8 mm Flat Head Phillips Head Machine Screws (Class 12.9)
    • Four (4) M4 x 0.7 x 8 mm Flat Head Phillips Head Machine Screws (Class 12.9)
    • Two (2) M3 x 0.5 x 10 mm Socket Head Cap Screws (Class 12.9)
    • Eight (8) M3 x 0.5 x 8 mm Socket Head Cap Screws (Class 12.9)

    Finish:

    • Clear anodize, mirror-polish CNC gloss endbells
    • Black electro-plate, CNC gloss central core (flux ring)

    Full Specifications:

    Kv (Motor Velocity Constant) 435 RPM/V
    Kt (Motor Torque Constant) 0.0220 Nm/A
    Km (Motor Constant) 0.1247 Nm/√(W)
    Maximum Continuous Current* 72+ A (180 s)
    Maximum Continuous Power* 1595+ W (180 s)
    Maximum Efficiency > 92%
    Voltage Range 14.8 V (4S LiPo) - 26.1 V (6S LiHV)
    Io (@10V) 1.4 A
    Rm (Wind Resistance) 0.031 Ω
    Stator Poles 24 (24S22P)
    Magnetic Poles 22 (24S22P)
    Bearings Triple, 698-2RS/608-2RS
    Mount Pattern M4/3 x ф30 mm, M5 x ф40 mm
    Stator Class 5215, 0.2 mm Japanese
    Shaft Diameter ф4 mm (ф8 mm Internal)
    Shaft Length 5.5 mm
    Motor Diameter ф60 mm
    Motor Length 41 mm
    Motor Weight 305 g (360 g with Wires/Bullets)
    Propeller Blade Size Up to 21.5"-DP (15.5"-TP Maximum on 8S)
    Motor Timing 22° - 30°
    ESC PWM Rate 16 - 32 kHz (600 Hz)

    *: Brushless motor requires consistent open airflow (5 mph or greater) across the windings to maintain maximum continuous current and power ratings during operation. Performance figures are provided as guidelines for normal conditions and operation; environmental factors, such as air temperature and humidity, can significantly alter the maximum performance limits of the motor.
