Brushless Motor for Electric Multi-Rotor (sUAS) Series

Product has been archived, and is no longer available for purchase. This page is for reference only.



Recommended ESC: KDE Direct UAS 20A+ LV Multi-Rotor Series

    Thrust Generation: 770g+ (5" x 4.0HQ Propeller, 4S Voltage)

    Motors designed for competition-level FPV racing, maximum performance, and extended-life durability.

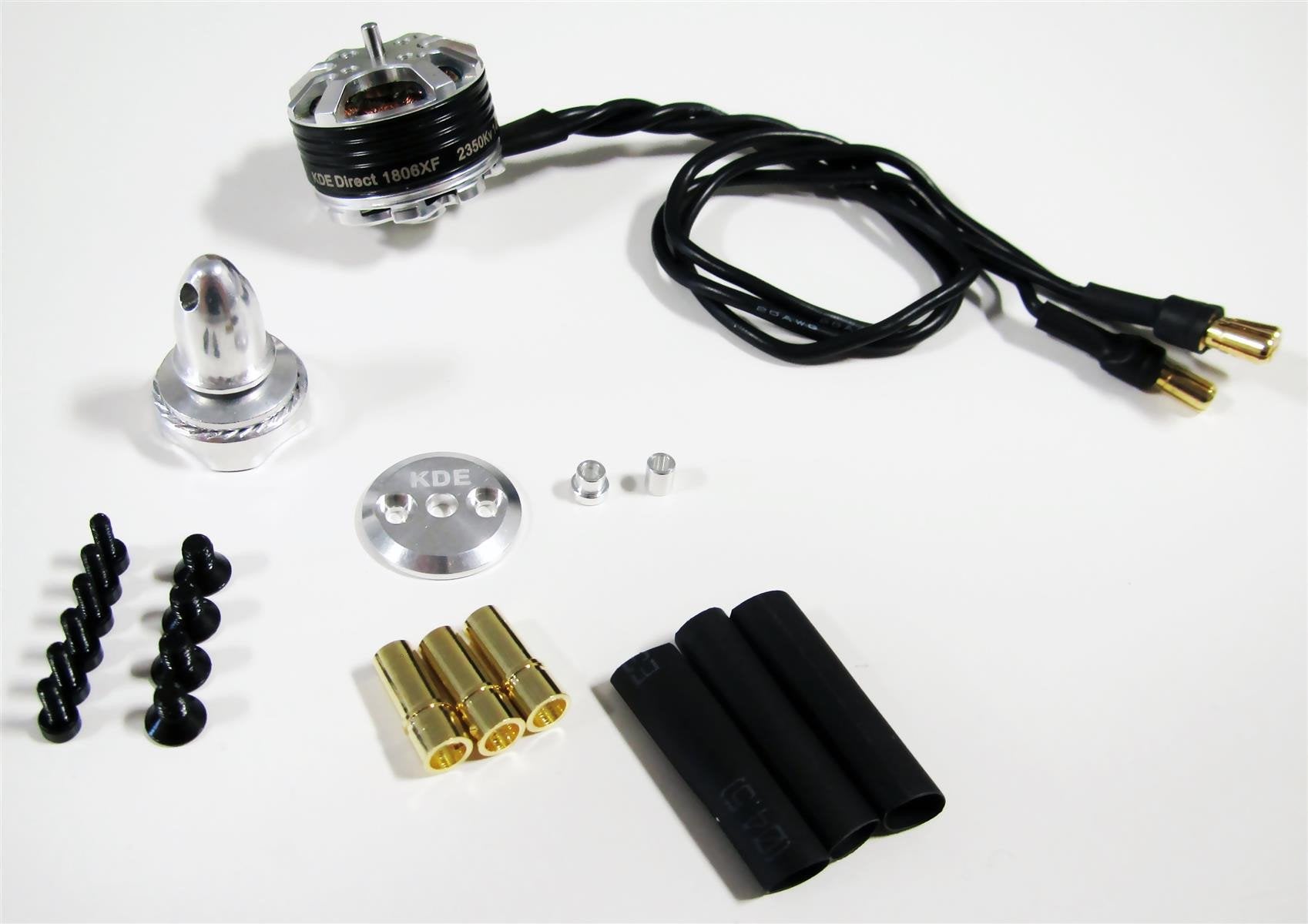

    • One (1) KDE Direct XF UAS M4 x 9mm Propeller Adapter Assembly (KDEXF-PA49-RH)
    • One (1) KDE Direct XF UAS Propeller Bracket Assembly (18XX/23XX Edition)
    • One (1) KDE Direct XF UAS M4 Propeller Adapter Sleeve (ф2.0 x ф3.0 x 3.5mm)
    • One (1) KDE Direct XF UAS Propeller Bracket Adapter (ф3.0 x ф4.0 x 1.25mm)
    • One (1) KDE Direct XF UAS Propeller Bracket Adapter (ф2.0 x ф3.0/ф4.0 x 3.25mm)
    • Three (3) KDE Direct XF ф3.5mm 24K Bullet Connectors (KDEXF-BC35, Female)
    • Four (4) M3 x 0.5 x 5 mm Flat Head Phillips Head Machine Screws (Class 12.9)
    • Six (6) M2 x 0.4 x 5 mm Socket Head Cap Screws (Class 12.9)

    Replacement Parts:

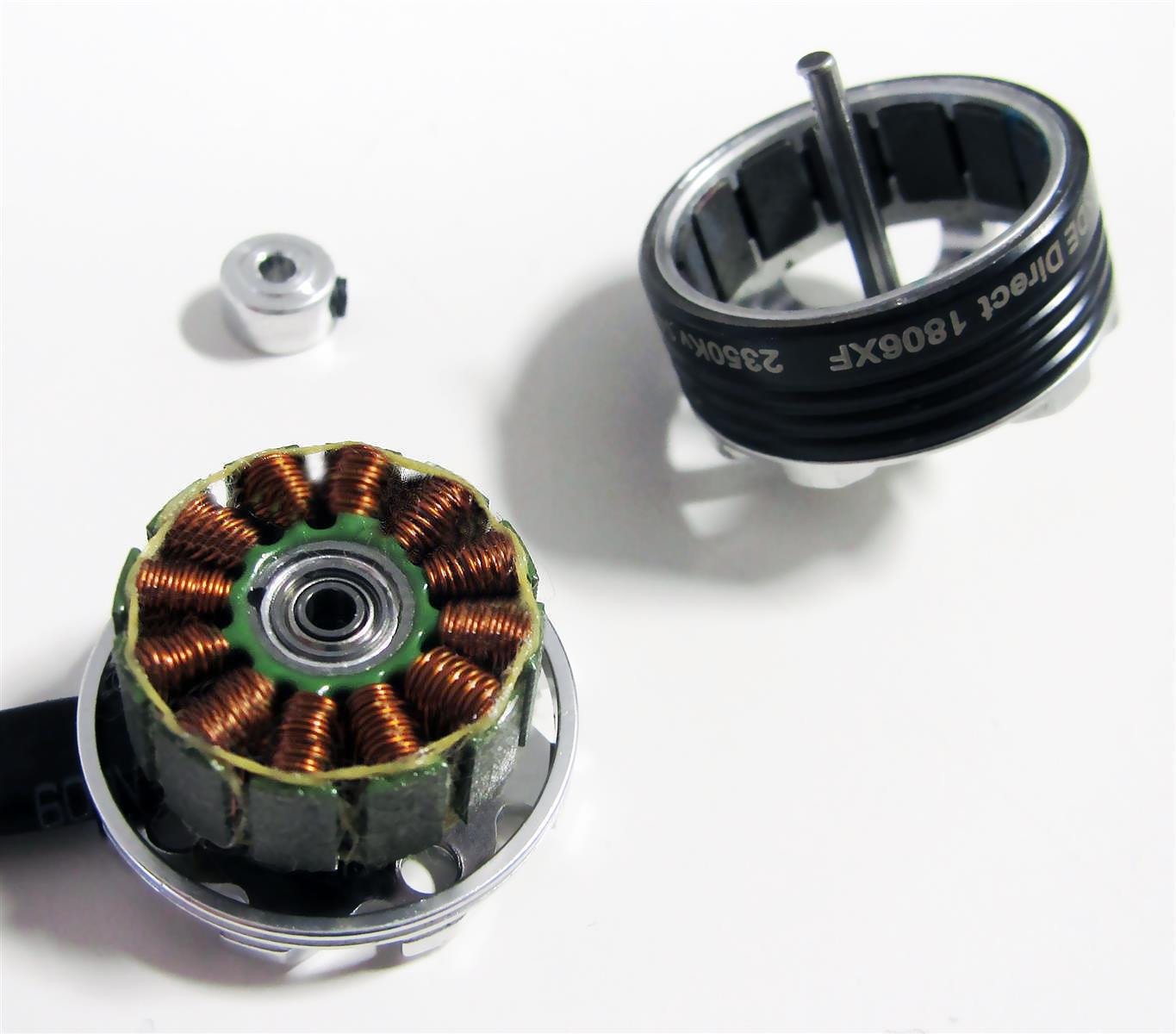

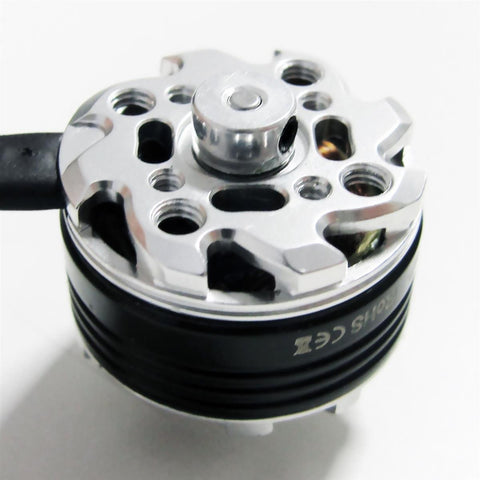

    The new KDE Direct 1806XF-2350 Multi-Rotor Brushless Motor is an extremely efficient and powerful motor for numerous multi-rotor and sUAS applications, and was designed to bring high-quality and vibration-free motors to the market. The motors are designed with performance and durability in-mind, with features unseen in the current market: (1) high-grade, 240°C continuous (340°C maximum) high-temperature solid-core copper windings for failure-free operation in extreme-climates, (2) Japanese-built, 0.2 mm silicon-steel stator laminations and Kevlar tie-wraps for high-efficiency performance, and (3) triple-bearing supported, ABEC-7 bearings for maintenance-free and worry-free flying for hundreds of hours. These are just a few of the advantages built-in to these motors, and every detail of the motors was scrutinized to produce the absolute best available; for a wide-range of flight applications.

    Motor includes 200°C, 20 AWG, 200mm silicone-wire leads and ф3.5mm 24K Bullet Connectors (KDEXF-BC35pre-soldered to the motor leads and ESC matching Bullet Connectors).  Silicone-wire leads can be easily modified to length and soldered as needed (direct to ESC and/or bullet connectors).

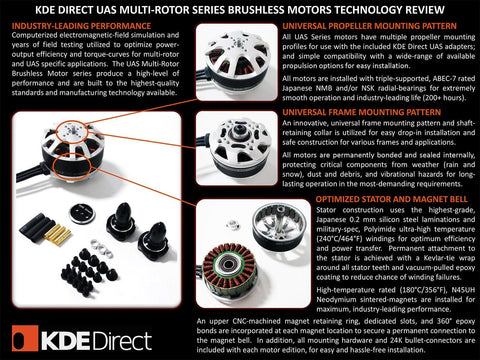

    UAS Multi-Rotor Brushless Motor Series Technology Review (PDF)


    Material: Neodymium N45UH

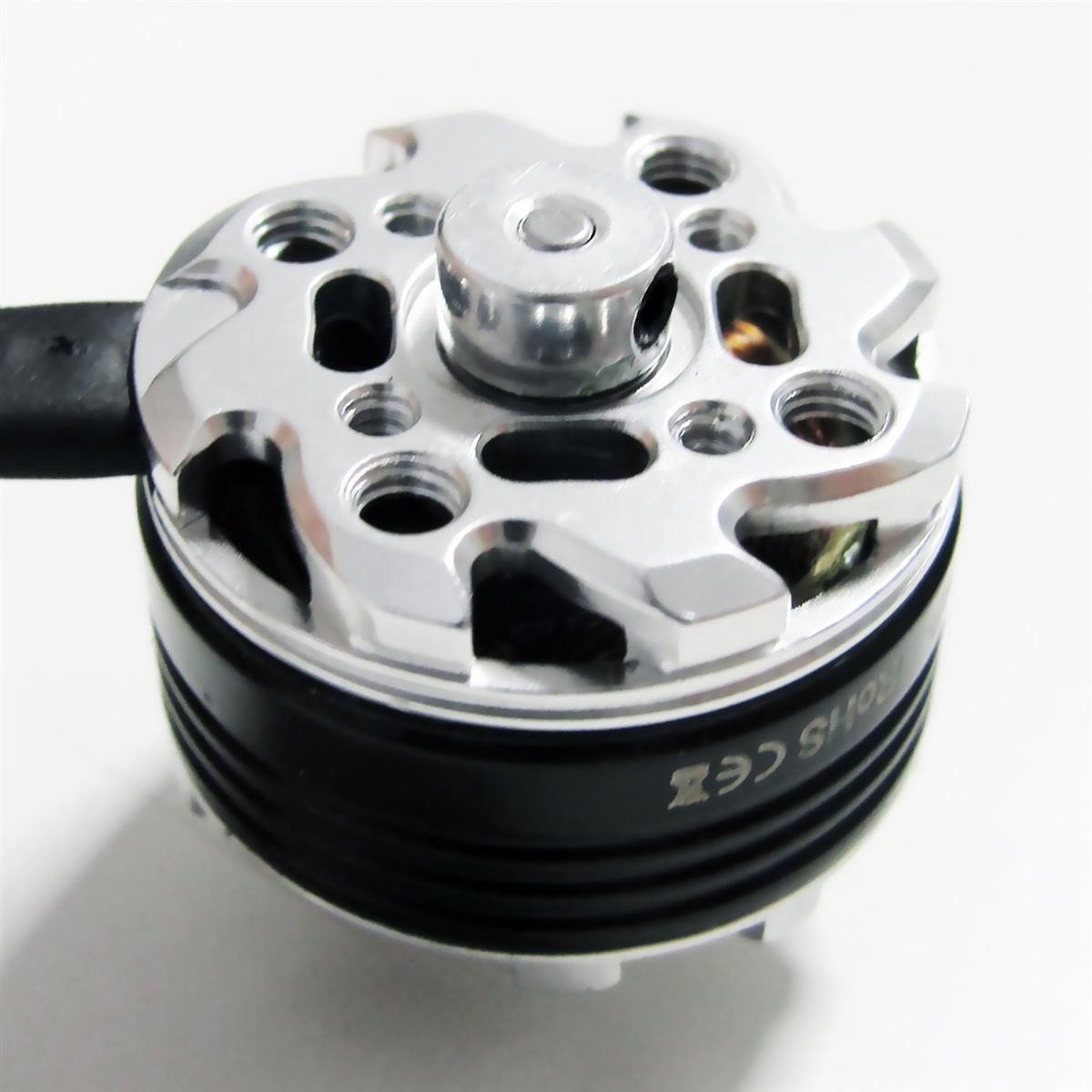

    Models: Universal mounting pattern provides simple installation for a wide-range of multi-rotor and sUAS applications: M2 x ф12mm, M3 x ф16mm.


    • Clear anodize, mirror-polish CNC gloss endbells
    • Black electro-plate, CNC gloss central core (flux ring)

    Compatible With:

    Full Specifications:

    Kv (Motor Velocity Constant) 2,350 RPM/V
    Kt (Motor Torque Constant) 0.0041 Nm/A
    Km (Motor Constant) 0.0119 Nm/√(W)
    Maximum Continuous Current* 18 A (180 s)
    Voltage Range 7.4 V (2S LiPo) - 17.4 V (4S LiHV)
    Io (@10V) 0.4 A
    Rm (Wind Resistance) 0.117 Ω
    Stator Poles 12 (12S14P)
    Magnetic Poles 14 (12S14P)
    Bearings Triple, 682ZZ, 692ZZ
    Mount Pattern M3 x ф16 mm, M2 x ф12 mm
    Stator Class 1806, 0.2 mm Japanese
    Shaft Diameter ф2 mm (ф2 mm Internal)
    Shaft Length 3.5 mm
    Motor Diameter ф23 mm
    Motor Length 16.7 mm
    Motor Weight 18 g (26 g with Wires/Bullets)
    Propeller Size Up to 7" (5" Maximum on 4S)
    Motor Advance Timing 22° - 30°
    Motor Drive Frequency 16 - 32 kHz

    *: Brushless motor requires consistent open airflow (5 mph or greater) across the windings to maintain maximum continuous current and power ratings during operation. Performance figures are provided as guidelines for normal conditions and operation; environmental factors, such as air temperature and humidity, can significantly alter the maximum performance limits of the motor.

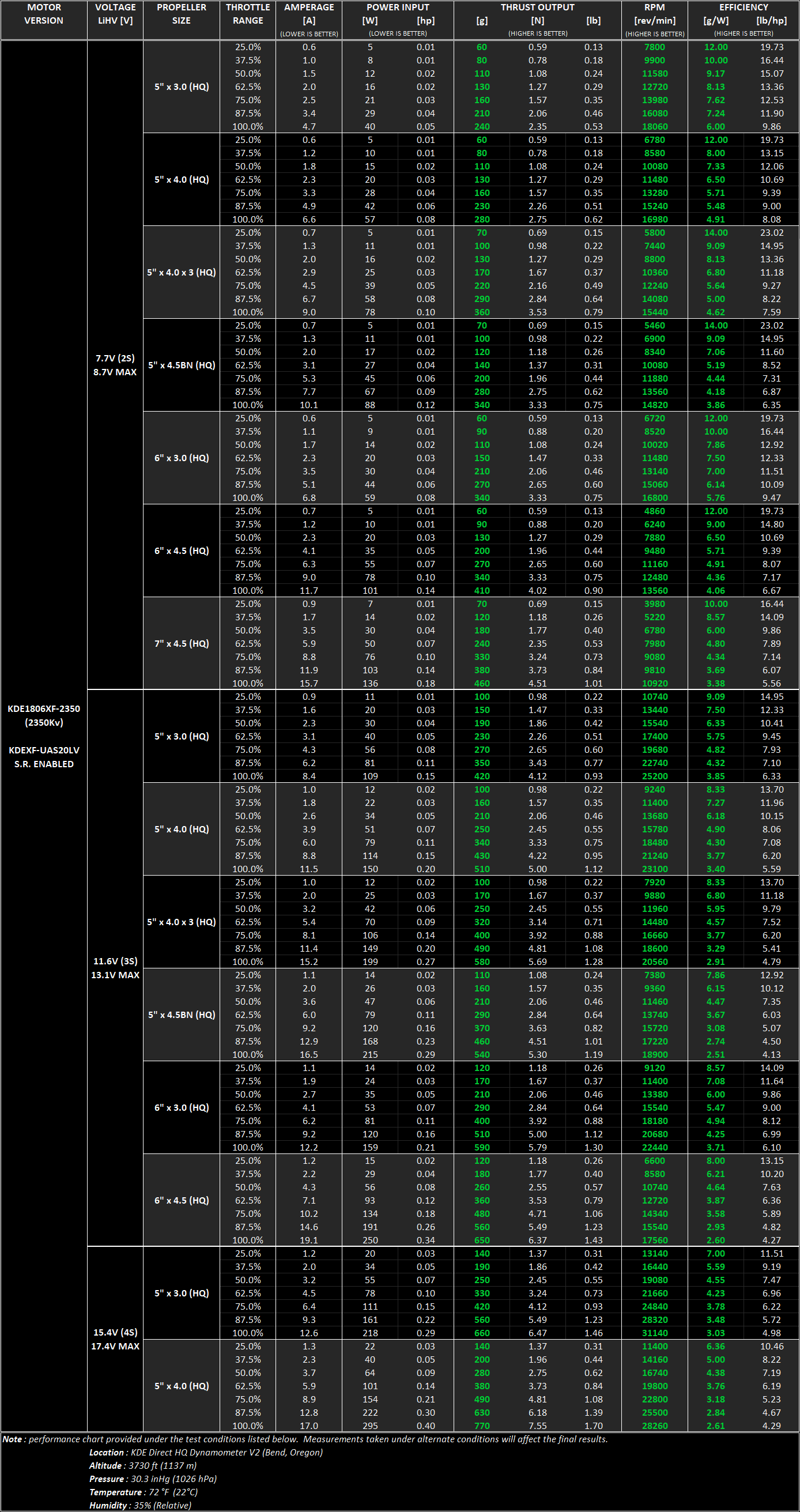

    Performance Data

    Manuals & Models



    *Files are compressed as .rar files to decrease space & increase download speed.
