KDE2304XF-2350

Brushless Motor for Electric Multi-Rotor (sUAS) Series
(Patent Pending)
  • $26.95
  • Save $0.00




Overview

Recommended ESC: KDE Direct UAS 20A+ LV Multi-Rotor Series

Thrust Generation: 990g+ (6" x 3.0HQ Propeller, 4S Voltage)

The new KDE2304XF-2350 establishes KDE Direct as the continued leader in FPV Racing performance and quality, with a further improved peak-torque and top-end thrust output and new mounting schematic ideal for competition-level racing and extended-life durability.  Producing the same power output of a competitive 2206-class motor, but at a significantly lower weight and profile - the new design once again sets the benchmark in brushless motor technology.

Includes:

  • One (1) KDE Direct XF UAS M5 Propeller Adapter Assembly (KDEXF-PA59-RH)
  • Three (3) KDE Direct XF ф3.5mm 24K Bullet Connectors (KDEXF-BC35, Female)
  • Four (4) M3 x 0.5 x 5 mm Flat Head Phillips Head Machine Screws (Class 12.9)
  • Four (4) M2 x 0.4 x 5 mm Socket Head Cap Screws (Class 12.9)

Replacement Parts:

The new KDE Direct 2304XF-2350 Multi-Rotor Brushless Motor is an extremely efficient and powerful motor for numerous multi-rotor and sUAS applications, and was designed to bring high-quality and vibration-free motors to the market. The motors are designed with performance and durability in-mind, with features unseen in the current market: (1) high-grade, 240°C continuous (340°C maximum) high-temperature solid-core copper windings for failure-free operation in extreme-climates, (2) Japanese-built, 0.2 mm silicon-steel stator laminations and Kevlar tie-wraps for high-efficiency performance, and (3) triple-bearing supported, ABEC-7 bearings for maintenance-free and worry-free flying for hundreds of hours. These are just a few of the advantages built-in to these motors, and every detail of the motors was scrutinized to produce the absolute best available; for a wide-range of flight applications.

Motor includes 200°C, 20 AWG, 250mm silicone-wire leads and ф3.5mm 24K Bullet Connectors (KDEXF-BC35pre-soldered to the motor leads and ESC matching Bullet Connectors).  Silicone-wire leads can be easily modified to length and soldered as needed (direct to ESC and/or bullet connectors).

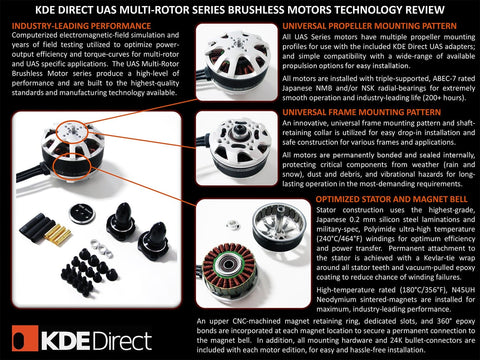

UAS Multi-Rotor Brushless Motor Series Technology Review (PDF)

Specifications

Material: Neodymium N45UH, 2350Kv

Models: Universal mounting pattern provides simple installation for a wide-range of multi-rotor and sUAS applications: M2.5 x ф16mm, M3 x ф16mm, M3 x ф19mm.

Finish:

  • Clear anodize, mirror-polish CNC gloss endbells
  • Black electro-plate, CNC gloss central core (flux ring)

Compatible With:

Full Specifications:

Kv (Motor Velocity Constant) 2,350 RPM/V
Kt (Motor Torque Constant) 0.0041 Nm/A
Km (Motor Constant) 0.0135 Nm/√(W)
Maximum Continuous Current* 20+ A (180 s)
Voltage Range 7.4 V (2S LiPo) - 21.8 V (5S LiHV)
Io (@10V) 0.7 A
Rm (Wind Resistance) 0.091 Ω
Stator Poles 12 (12S14P)
Magnetic Poles 14 (12S14P)
Bearings Double, 693ZZ, 623ZZ
Mount Pattern M3 x ф19 mm, M3/M2.5 x ф16 mm
Stator Class 2304, 0.2 mm Japanese
Shaft Diameter ф3 mm (ф3 mm Internal)
Shaft Length 3.5 mm
Motor Diameter ф28.3 mm
Motor Length 16 mm
Motor Weight 24 g (33 g with Wires/Bullets)
Propeller Size Up to 8" (6" Maximum on 4S)
Motor Timing 22° - 30°
ESC PWM Rate 16 - 32 kHz (+)

*: Brushless motor requires consistent open airflow (5 mph or greater) across the windings to maintain maximum continuous current and power ratings during operation. Performance figures are provided as guidelines for normal conditions and operation; environmental factors, such as air temperature and humidity, can significantly alter the maximum performance limits of the motor.
