KDE-DPAHL-SP

Heavy-Lift Propeller Blade Adapter (SP), Dual-Edition for Multi-Rotor (UAS) Series
  • $44.95

ENGINEERING THE UNSEEN



Overview

Compatible with the KDE13218XF Brushless Motor.

Compatible with the KDE-CF355-DP Propeller Blades.

(see Specifications and Manuals tab for additional information)

The KDE-DPAHL-SP incorporates aerospace-grade AL7075-T6 materials for unprecedented performance and durability.

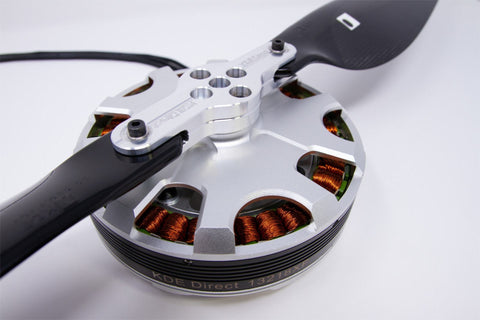

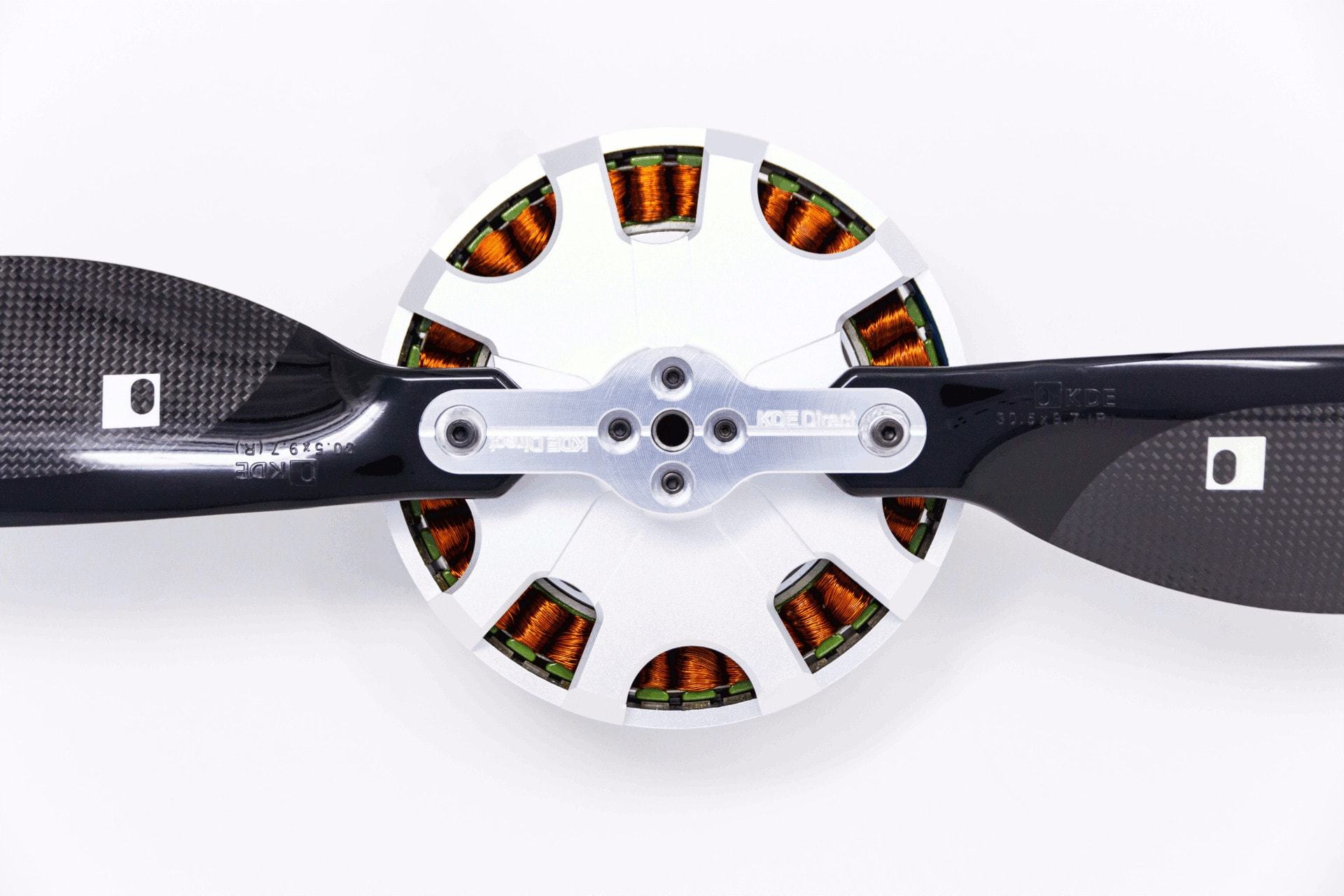

The new KDE Direct Propeller Blade Adapter (SP), Single Piece provides a professional-quality, CNC balanced folding-propeller assembly for the KDE Direct UAS Multi-Rotor Brushless Motor Series (and adaptable to other motors with dual- and quad- M3 mounting threads) and KDE Direct UAS Carbon-Fiber Propeller Blade Series.  The upgrade includes Class 12.9 hardware for high-strength safety and include custom CNC-machined, Socket Head Shoulder Cap Screws; reducing the need to readjust blade pressure and requiring minimal maintenance to the assembly between flights.

Specifications

Material: Aluminum 7075-T6

Models: Universal mounting pattern provides simple installation for a wide-range of multi-rotor and UAS applications:

Compatible Propeller Blades:

Compatible Brushless Motors:

Includes:

  • One (1) KDE Direct Heavy-Lift Propeller Blade Adapter (SP), Dual-Edition, Single Piece
  • Two (2) M6 Button Socket Head Cap Screws
  • Four (4) M3 Button Socket Head Cap Screws

Finish:

  • Clear-anodize, mirror-polish CNC gloss Upper Plate (ML)

Weight:
86 g (design is FEA optimized for maximum strength and minimum weight)

Manuals

  • Propeller Blade Adapter Series Single Piece Installation Diagram (SP) (PDF)
